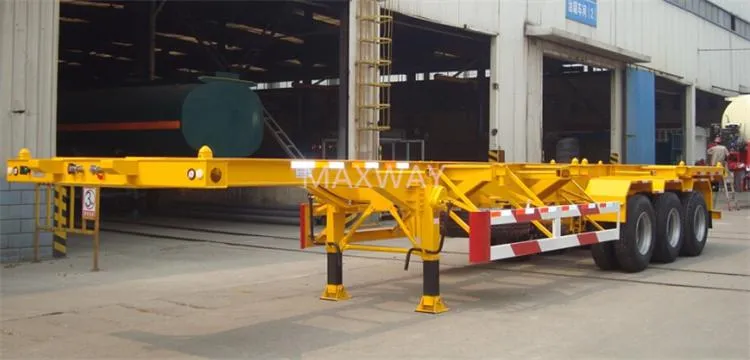

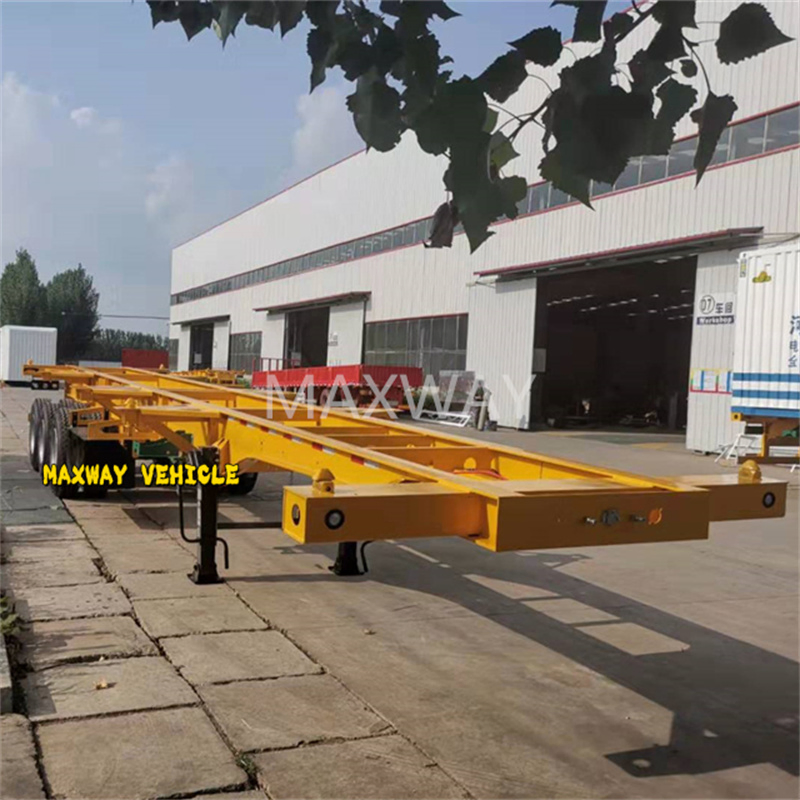

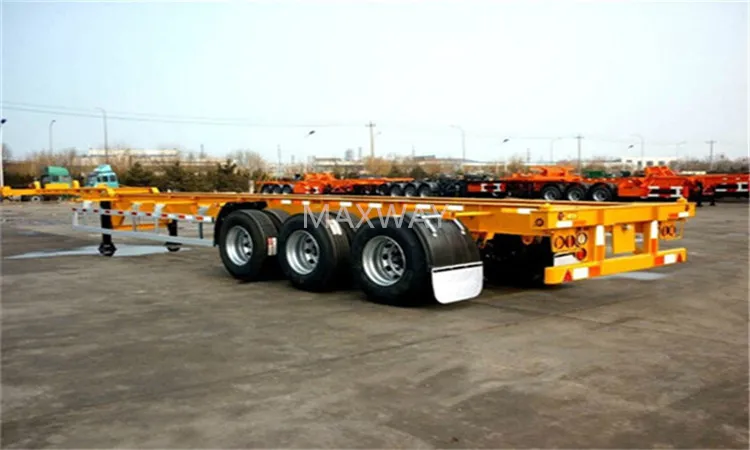

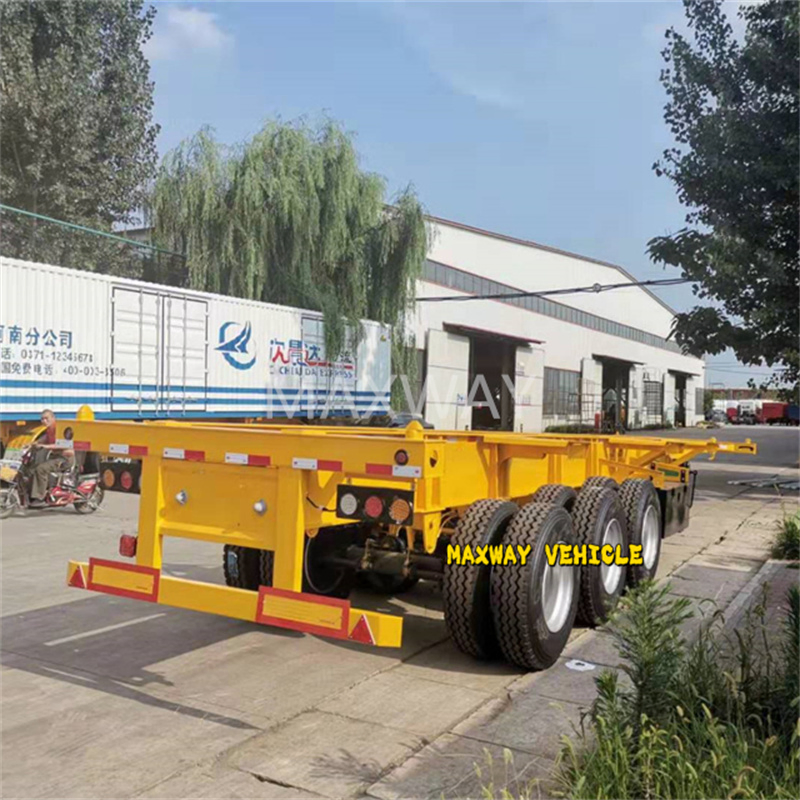

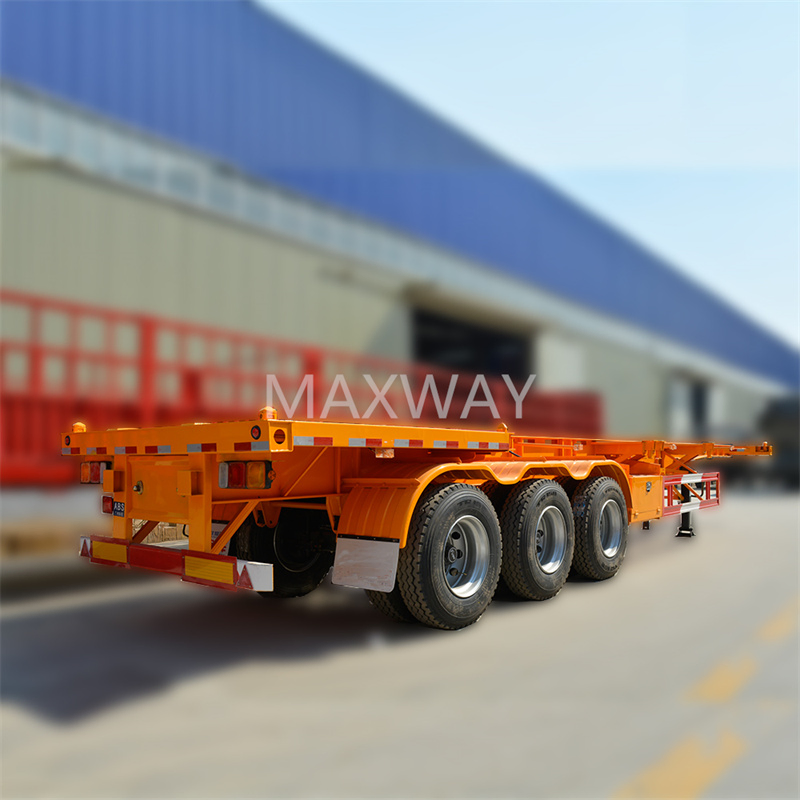

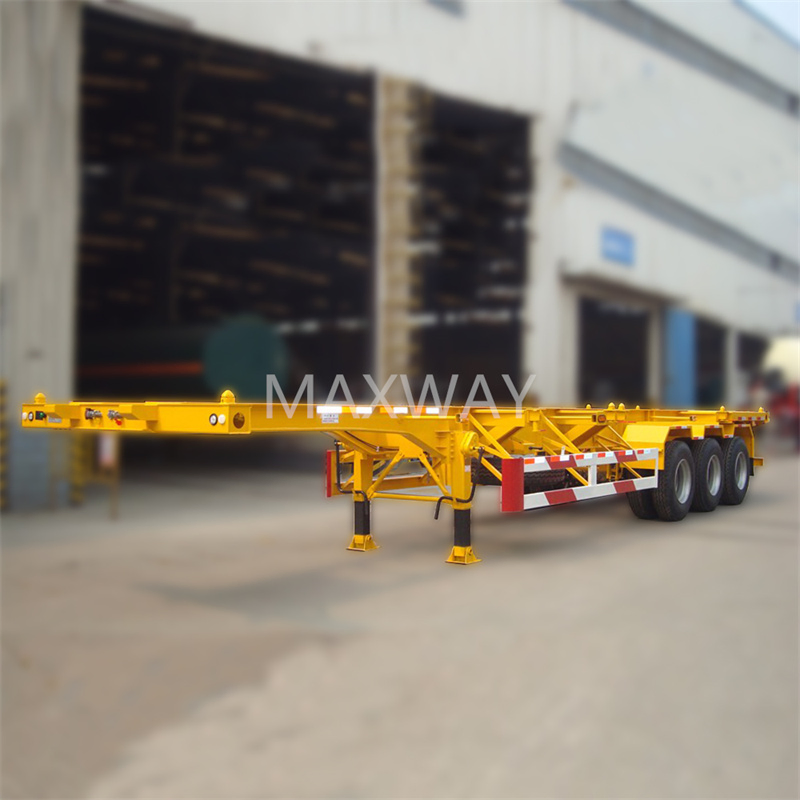

This Skeleton Semi Trailer is specifically engineered to transport 20ft and 40ft containers with maximum efficiency. Equipped with 12 units of container twist locks, the chassis offers versatile loading configurations: one 20ft container in the middle, two 20ft containers at the front and rear, or one 40ft container across the full length.
Commonly referred to as a skeletal trailer or container chassis, it is ideal for transporting ISO containers across ports, shipyards, bridges, and tunnels. It supports multi-modal logistics systems and is suitable for dry containers, tank containers, and reefer containers.

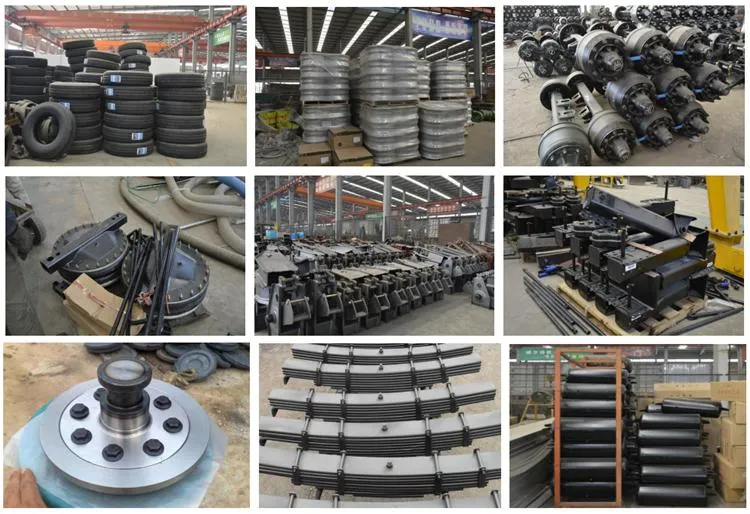

The manufacturing process features advanced welding and painting technologies. High-tensile Q345 steel is used for the main beam, complemented by world-renowned components like JOST landing gears and FUWA/BPW axles for superior performance.
| Dimension & Weight | |
|---|---|
| Tare Weight | 6500kg |
| Payload | 40000kg |
| Overall Size | 12500mm * 2500mm * 1500mm |
| Specifications | |
| Chassis | High tensile steel Q345, automatic submerged-Arc welded |
| Axle | 3 Axles, 13T Capacity (Brand Optional) |
| Suspension | Mechanical or Air Suspension |
| Tire | 11.00R20, 12.00R20, 11R22.5, 12R22.5, 315/80R22.5 |
| Kingpin | 2" or 3.5" bolt-in |
| Landing Gear | JOST two-speed manual operation |
| Braking System | WABCO relay valve, T30/30 brake chamber |
