Automated Storage and Retrieval System Asrs System for Warehouse Management

1 / 5

Automated Storage and Retrieval System Asrs System for Warehouse Management

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.	HY-ASRS-1
Usage	Tool Rack, Beverage, Tools, Supermarket, Industrial, Warehouse Rack
Material	Steel Q235/Q355/Q345
Structure	Rack System
Type	Pallet Racking
Mobility	Adjustable
Height	>15m
Weight Capacity	500-1300kg/Layer
Dimensions	Length 1200-3500mm; Depth 600-1700mm

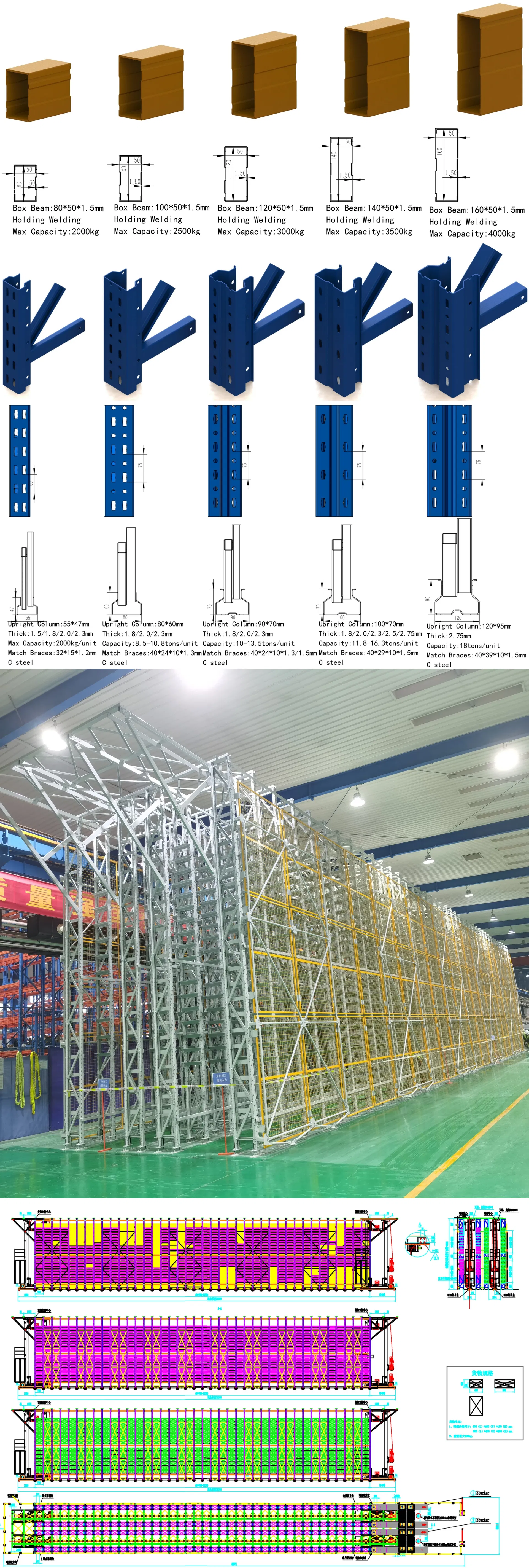

Upright Column	120135/115/95/70mm, 140135/115/95/70mm
Surface Treatment	Powder Coating

Product Description

Originating in the 1960s, this system has now become a core equipment in the field of modern high-density and high-efficiency warehousing and logistics.

Core Components

🏗️

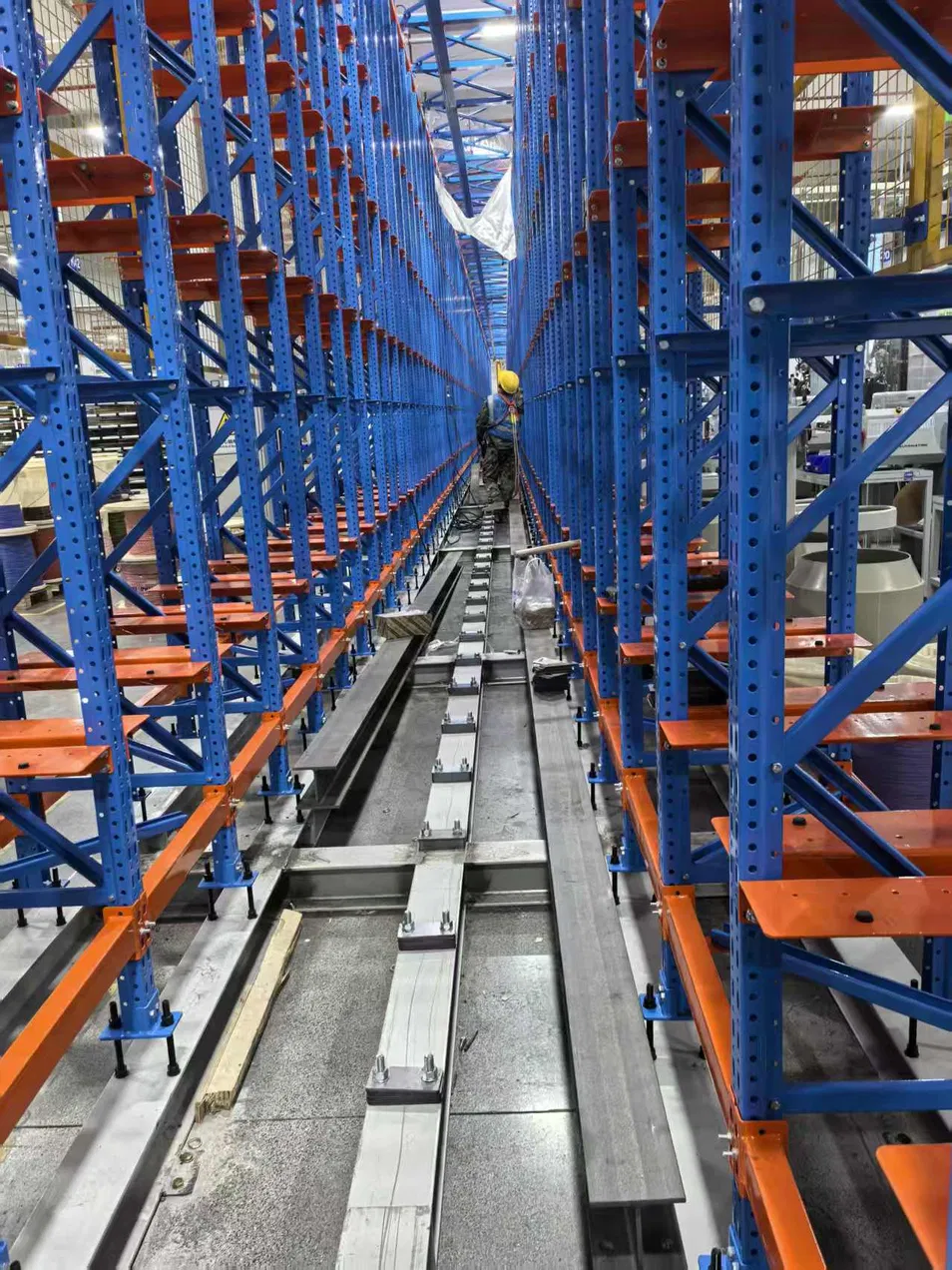

High-Density Racking: Tall, narrow-aisle structures that maximize vertical space (usually up to 20-30 meters and above).
🤖

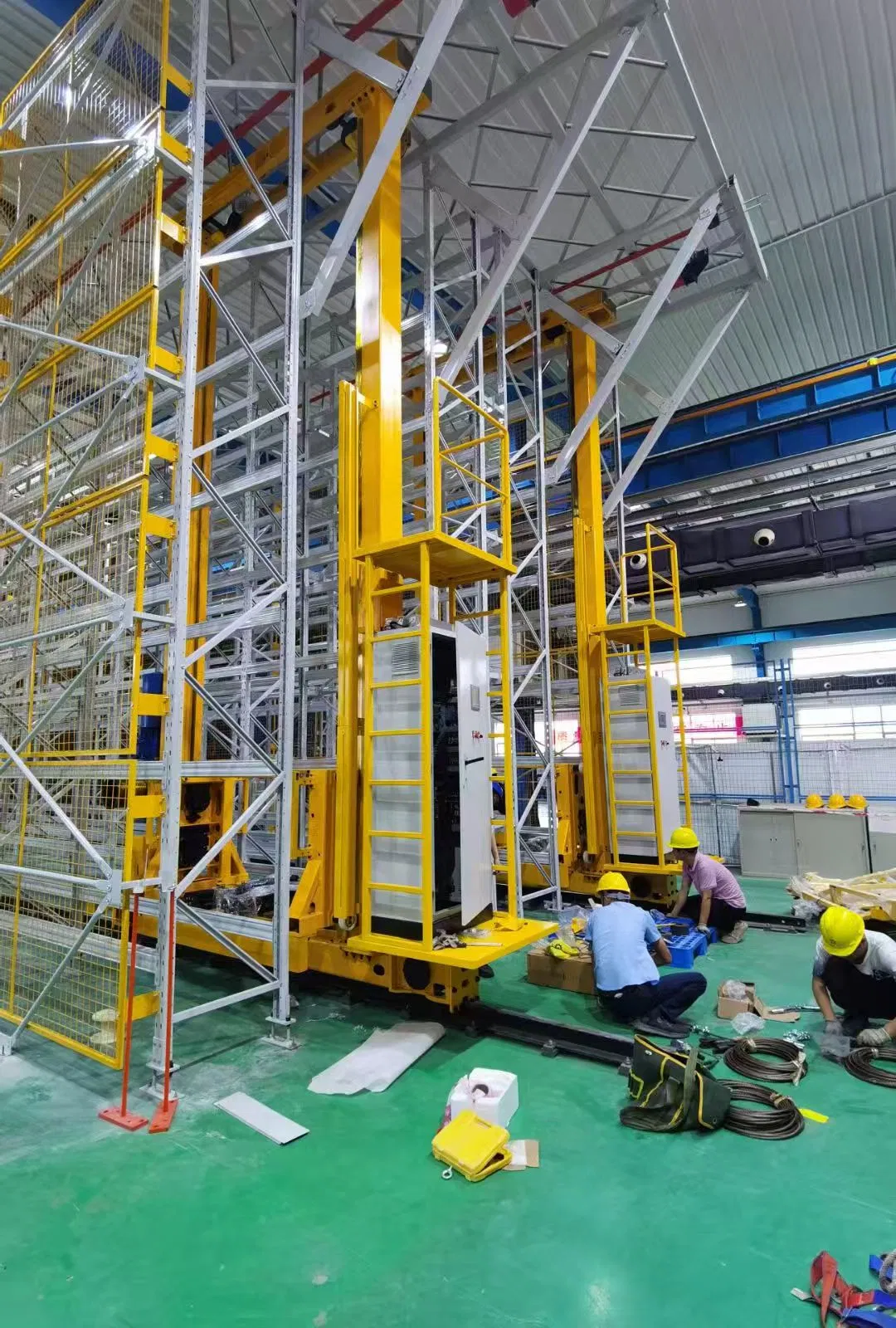

Storage & Retrieval Machines (SRMs): Stacker cranes used for unit load storage and retrieval, including mini stackers and shuttles.
🚛
Conveyor/AGV System: Automated Guided Vehicles responsible for inbound/outbound transfer between docks and pick-up points.
💻
WCS + WMS: Software systems for real-time motion control and inventory data management.
🔍
Sensing System: Barcode/RFID scanners, dimension detection, and safety sensors.

Key Advantages

📈High Space Utilization: Reduces floor area by 30%-70% and increases storage density by 3-5 times compared to traditional methods.
💰Labour Cost Savings: Reduces manual picking and handling, lowering labor risks and costs.
🎯High Accuracy: Inventory accuracy can reach more than 99.99%.
⚡Real-Time Management: Integrated WMS provides instant data for demand forecasting.

Core Product Types & Applications

System Type	Best For	Key Features
Pallet AS/RS	Bulk goods, heavy materials, manufacturing	10–40m height, 1–5 tons capacity
Shuttle Car System	High-density storage, cold chain	Space utilization increased by 60%–200%
Mini-load System	Small parts, Multi-SKU, Bin storage	High speed, Goods-to-person picking

Industry Application Solutions

Our systems are widely used in Automotive Manufacturing (JIT feeding), Pharmaceuticals (GSP compliance), E-commerce (high-speed sorting), and Cold Chain (operation at -25℃).

Manufacturing & Quality Control

⚙️Fully Automated Production: CNC bending and automatic spray coating lines ensure precision.
🛡️Quality Assurance: ISO certified, using Q235/Q355 steel with a 99.8% qualification rate.
⏱️Fast Delivery: Rapid mass production within 7–25 days.

Packaging & Shipping

All components are neatly arranged on export pallets, protected by cardboard strips, strapped with steel belts, and wrapped in stretch film for moisture-proof and waterproof security during global sea, air, or land transit.

Video Presentation

Frequently Asked Questions

Q1: Are your AS/RS racking systems customizable?

A: Yes, we provide full customization for size, load capacity, color, and structure to perfectly fit your specific warehouse constraints and operational needs.

Q2: What is the typical loading capacity per level?

A: Our systems are designed to handle anywhere from 100kg to 5000kg per level, depending on the material used and the specific design requirements of your project.

Q3: How much space can I save with an automated system?

A: By utilizing vertical space up to 40 meters and implementing narrow-aisle designs, you can typically reduce your floor footprint by 30% to 70% while increasing storage density by 3-5 times.

Q4: What is the expected production and delivery time?

A: Standard production time ranges from 7 to 25 days. The total delivery time depends on the project scale and the shipping method (sea, air, or land).

Q5: Do you provide installation support for international orders?

A: Yes, we provide comprehensive installation packages including detailed technical drawings, step-by-step videos, and remote online guidance from our engineering team.

Q6: What materials and surface treatments are used?

A: We use high-quality Q235, Q345, or Q355 cold-rolled steel. The surface is finished with a durable powder coating that provides excellent resistance to rust and wear.
