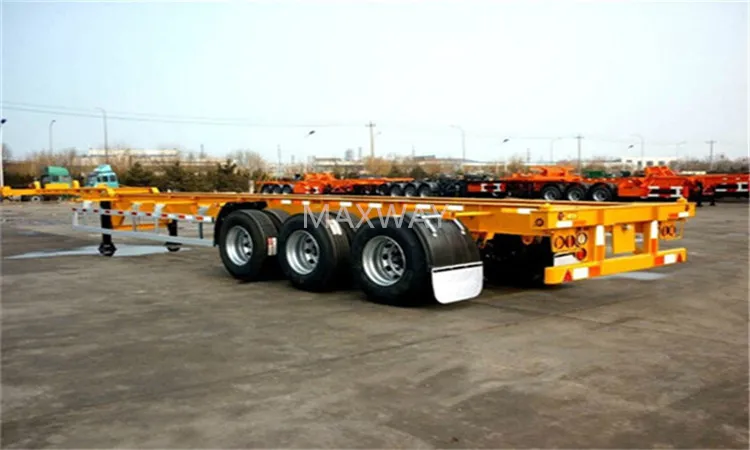

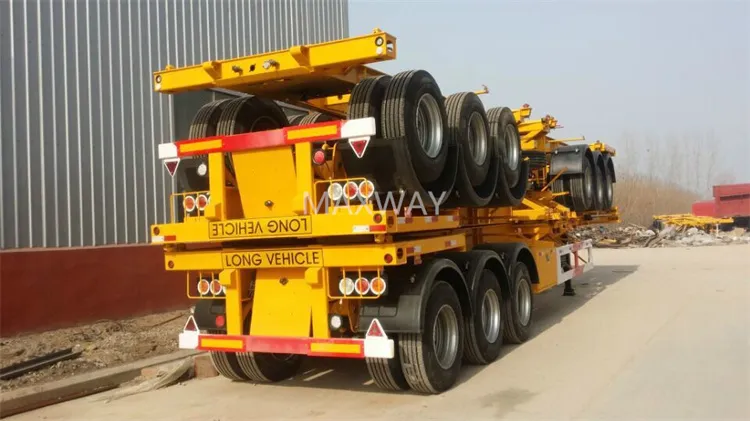

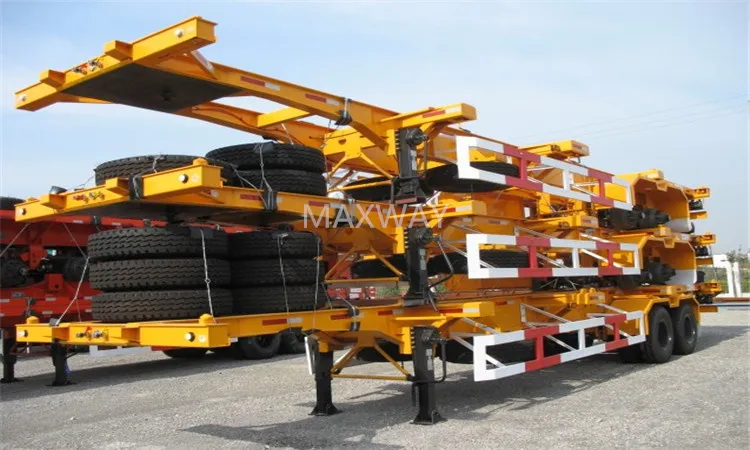

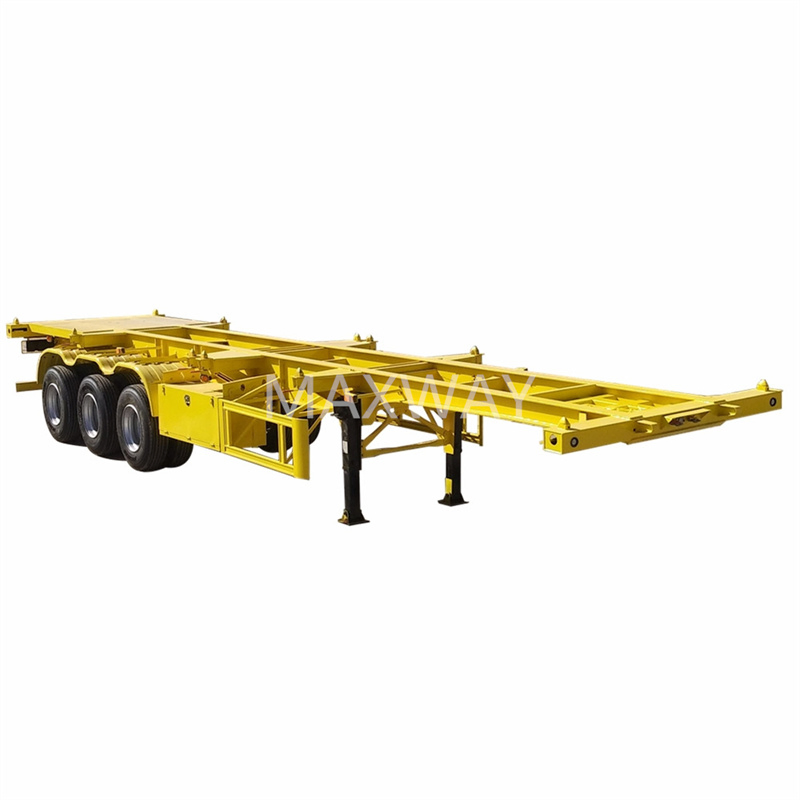

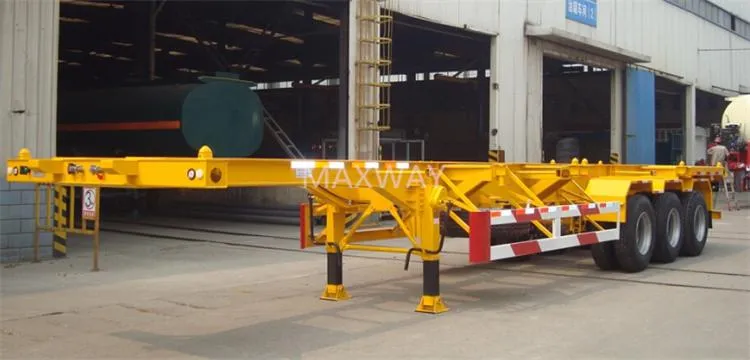

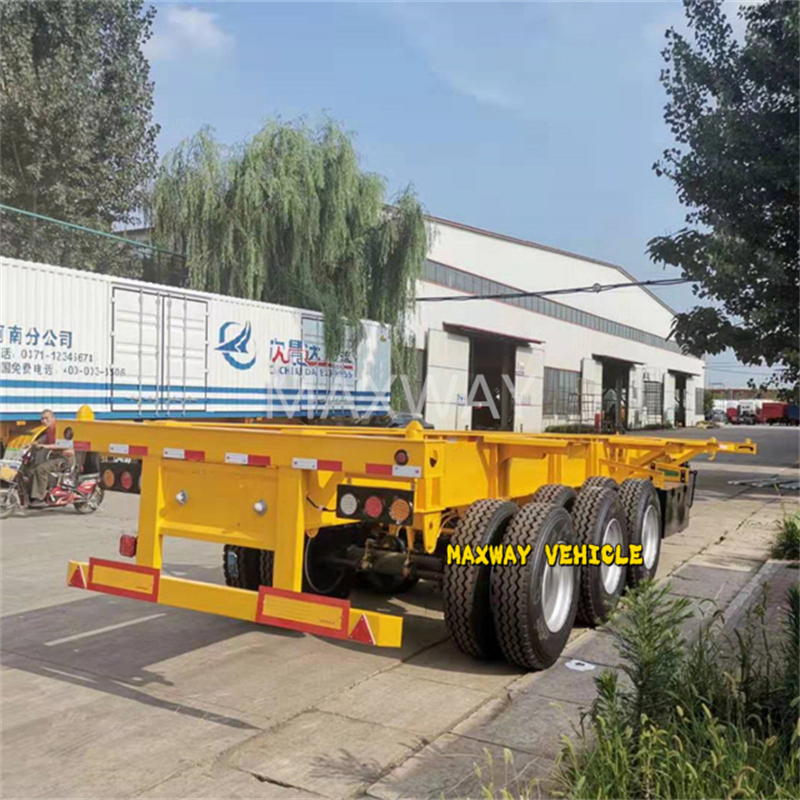

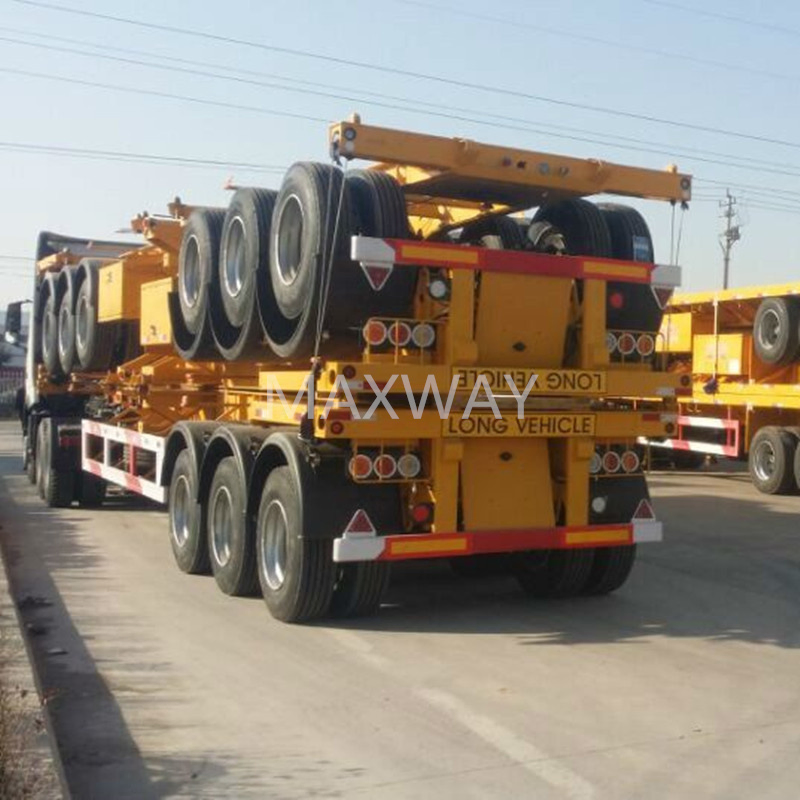

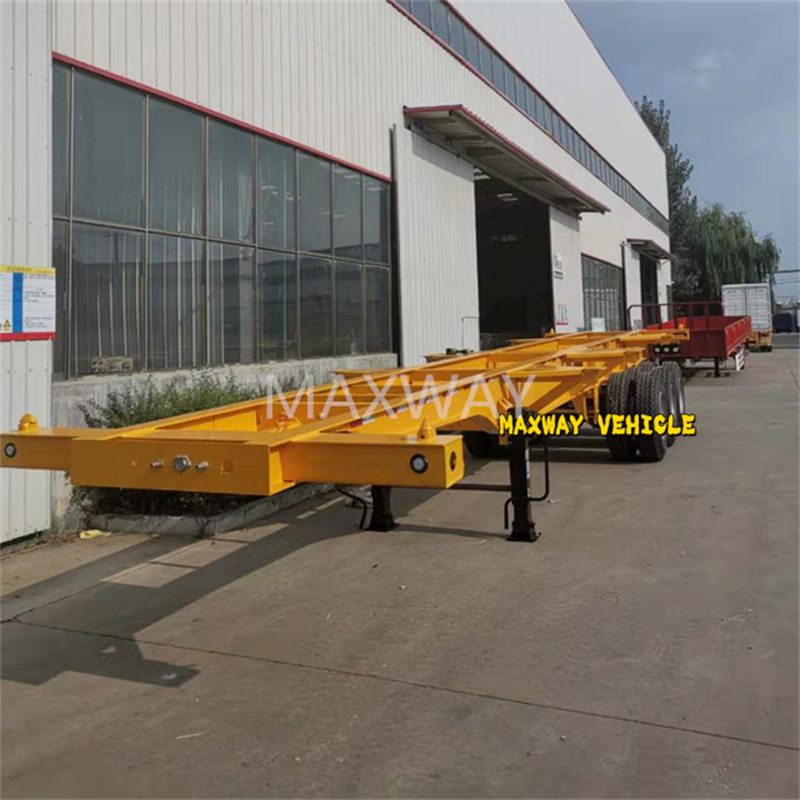

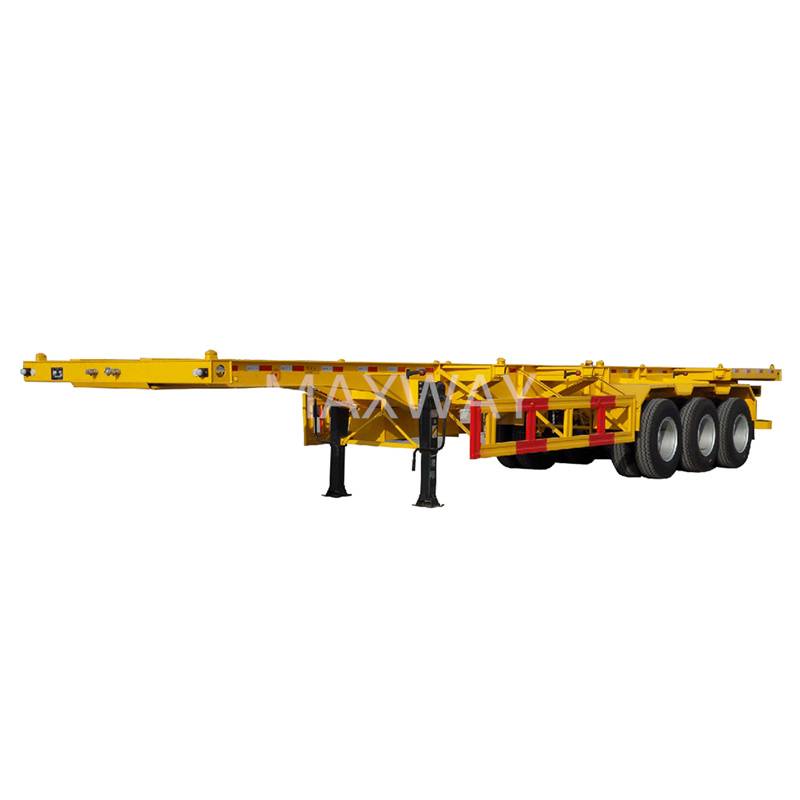

High Quality 40 FT 2-3 Axle Skeleton Semi Trailer designed for heavy-duty container transport. This Tri-Chassis Skeleton Semi Trailer can efficiently transport 20ft and 40ft containers from ports to logistics hubs. With 12 sets of container locks, the chassis offers versatile loading configurations: one 20ft container in the middle, two 20ft containers at the ends, or one 40ft container across the frame.
Commonly referred to as a skeletal trailer or container chassis, it is widely utilized in ports, shipyards, bridges, and transfer stations to support multi-modal logistics. The frame is engineered to handle ISO containers, including dry containers, tank containers, and reefer units, with a loading capacity reaching up to 50 tons.
| Dimension & Capacity | |||
| Tare Weight | 6500kg | Payload | 40000kg - 50000kg |
| Overall Length | 12500mm | Overall Width | 2500mm |
| Chassis Specification | |||
| Main Beam | High tensile steel Q345; Top flange 14mm; Middle flange 8mm; Bottom flange 16mm. | ||
| Axle | 3 Axles, 13T Capacity | Suspension | Mechanical or Air Suspension |
| Tires | 11.00R20 / 12.00R20 / 12R22.5 | Kingpin | 2" or 3.5" Bolt-in type |
| Braking System | WABCO relay valve; T30/30 chamber | Landing Gear | Two-speed manual operation |

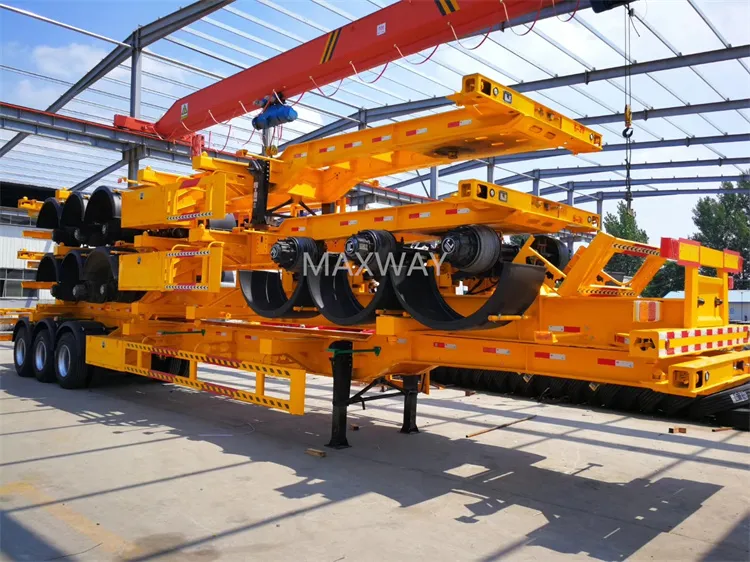

Standard nude packing suitable for maritime transport. Rust prevention measures applied before delivery.

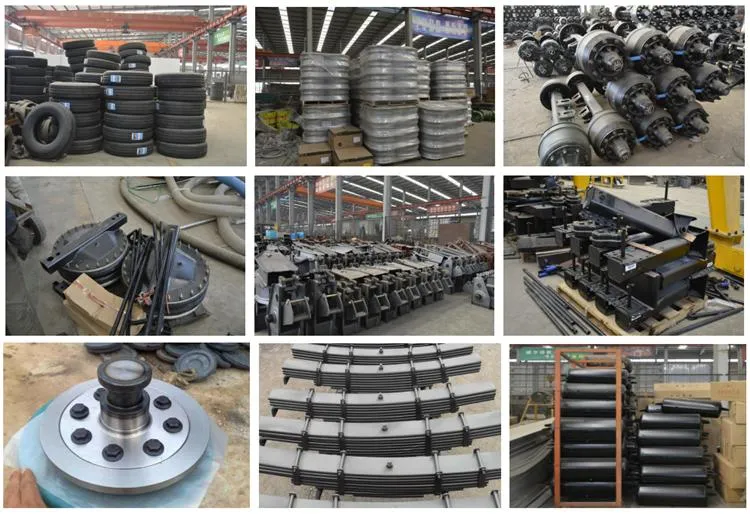

Established in 2007, our manufacturing facility specializes in a comprehensive range of semi-trailers. As a reliable manufacturer with vitality and technical strength, we provide bulk cement tanks, low bed trailers, fuel tankers, flatbed container trailers, and skeleton trailers. Our professional design team ensures that all customized requirements are met with precision and quality.
