Intelligent Automatic Storage and Retrieval System for Steel Automated Warehouse Storage Racking with Agv

1 / 5

Intelligent Automatic Storage and Retrieval System for Steel Automated Warehouse Storage Racking with Agv

Customization:	Available
After-sales Service:	Onsite Technical Supervisions
Warranty:	Two Years Warranty

Send Inquiry

Product Description

Basic Specifications

Model NO.

4WS

Type

Shuttle Rack Structure

Material

Steel

Travelling Speed

1.0-1.2m/S

Maximum Load

1500kgs

Power Mode

Lithium Battery

Control Method

Siemens PLC

HS Code

73089000

Capacity

1000 Units Per Year

Specification

1200*1000 STANDARD or customized

Product Description

Four Way Smart Shuttle High Density Pallet Storage ASRS Shuttle Racking System is an upgraded version of an intelligent compact storage system for a stacker crane operated ASRS warehouse system. Controlled by a computer system, goods are positioned via horizontal and vertical movement of a 4-way shuttle device. Vertical elevators facilitate level changes, while internal and external logistics are managed through a comprehensive conveying system.

Core Components

Shuttle Rack Structure: High-precision steel framework for multi-level storage.

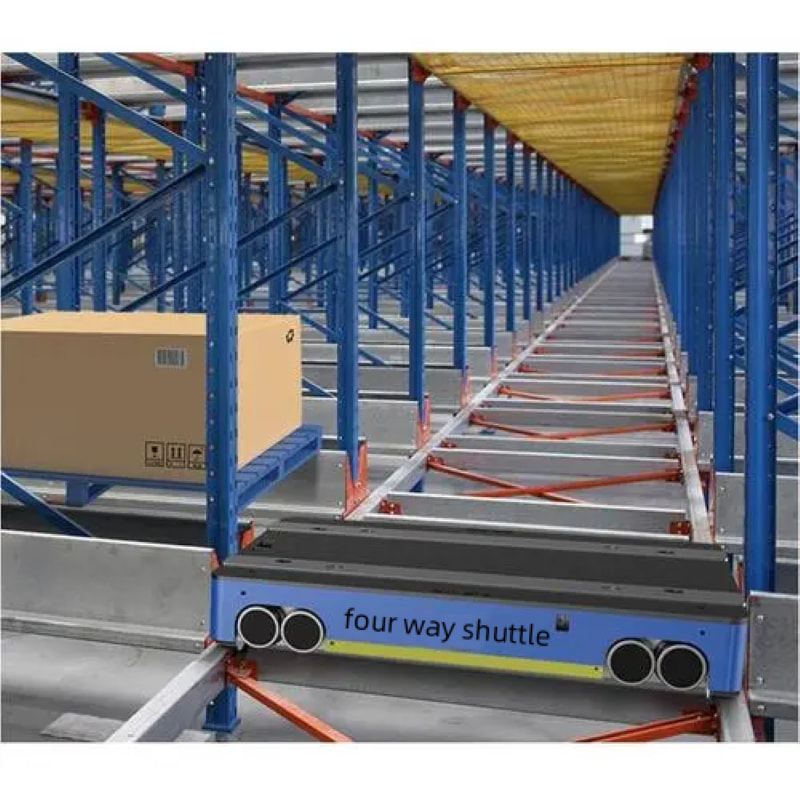

Four-Way Shuttle Device: Intelligent vehicle for X and Y direction movements.
Vertical Elevator: Customized lift system for Z-direction level changing.
Conveyor System: Logistics docking for inbound and outbound flow.
WMS & WCS: Warehouse Management and Control Systems for real-time monitoring and dispatching.

Key Features & Advantages

The four-way shuttle system integrates high-density multi-depth shuttle racks with automated retrieval capabilities. It offers unparalleled flexibility, allowing users to increase efficiency simply by adding more shuttles and elevators. The system supports single-deep, double-deep, and multiple-deep configurations.

Quality Certifications

Frequently Asked Questions

What is a 4-way smart shuttle system?

It is an automated high-density pallet storage solution that uses intelligent shuttles capable of moving in four directions (front, back, left, right) within a racking structure to retrieve and store goods.

What is the maximum load capacity for this system?

The standard system is designed to handle a maximum load of 1500kgs per pallet, though customization is available based on specific warehouse needs.

How does the shuttle change levels?

Level changes are realized through a customized vertical elevator system that moves the 4-way shuttle between different tiers of the racking structure.

Which industries are best suited for this technology?

This system is ideal for food and beverage, cold chain logistics, medicine, chemical manufacturing, and any industry requiring high-density automated storage.

What power source does the shuttle use?

The shuttles are powered by high-performance lithium batteries, ensuring long operational cycles and quick charging capabilities.

How is the system controlled?

The system utilizes Siemens PLC for hardware control, integrated with Warehouse Management Systems (WMS) and Warehouse Control Systems (WCS) for real-time operation and monitoring.
