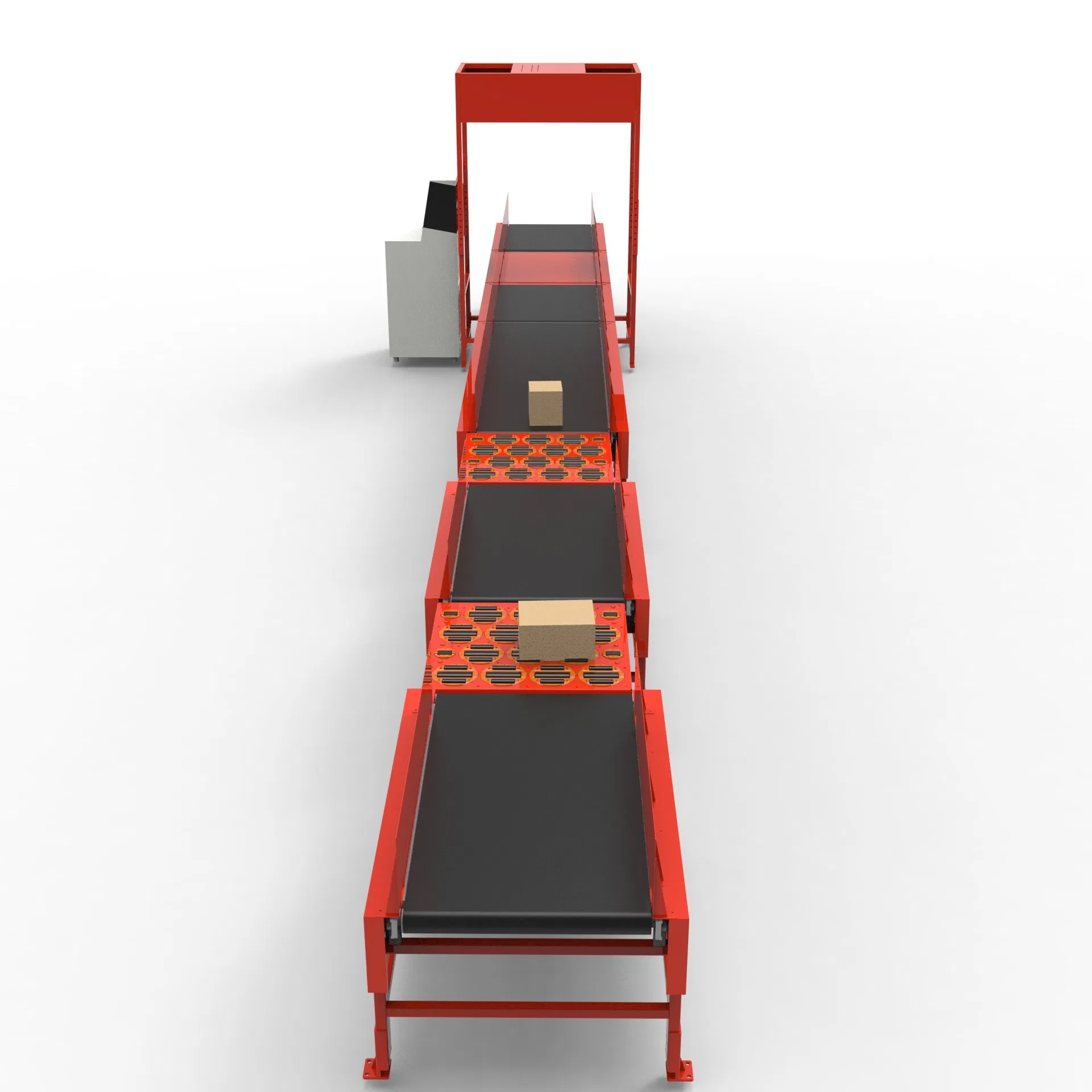

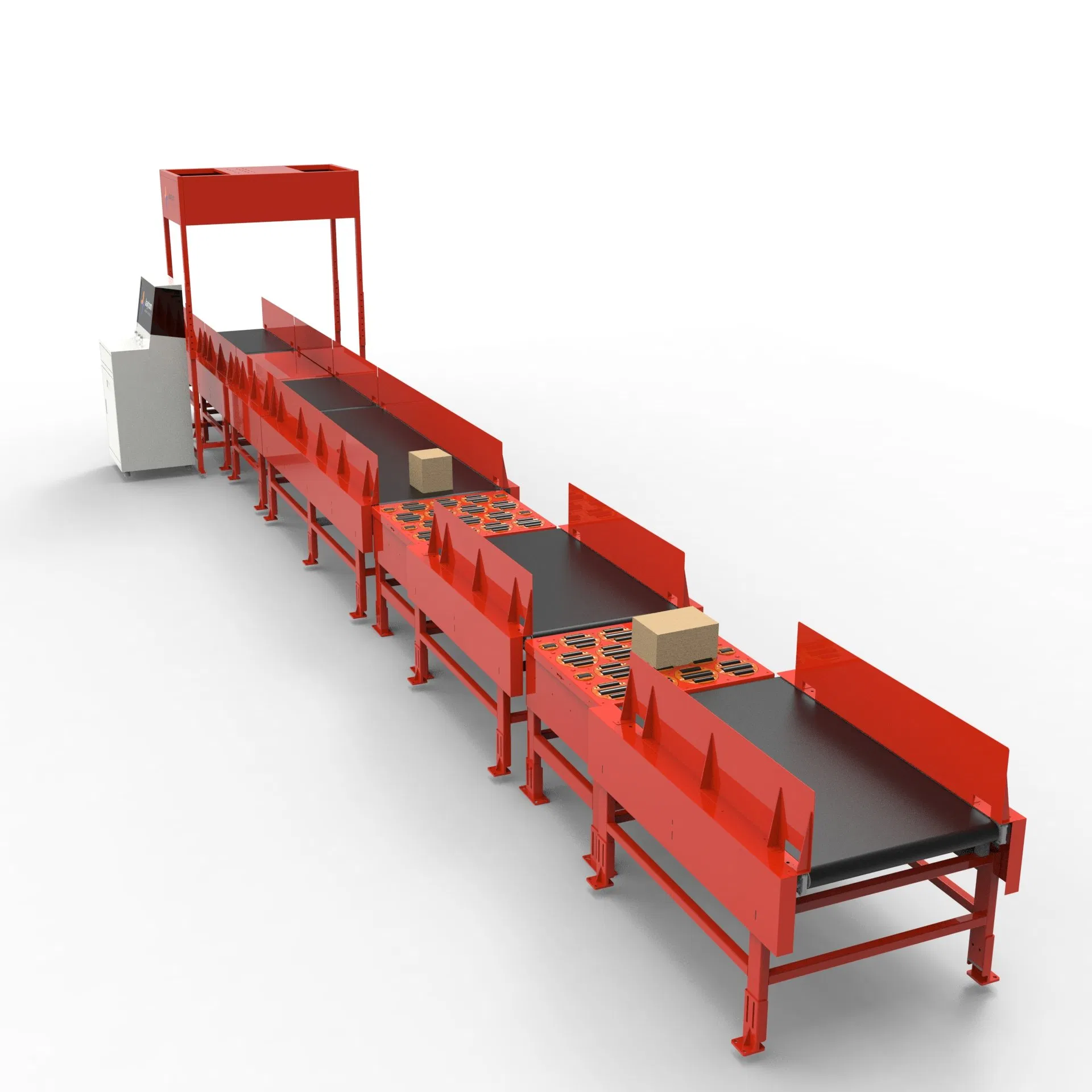

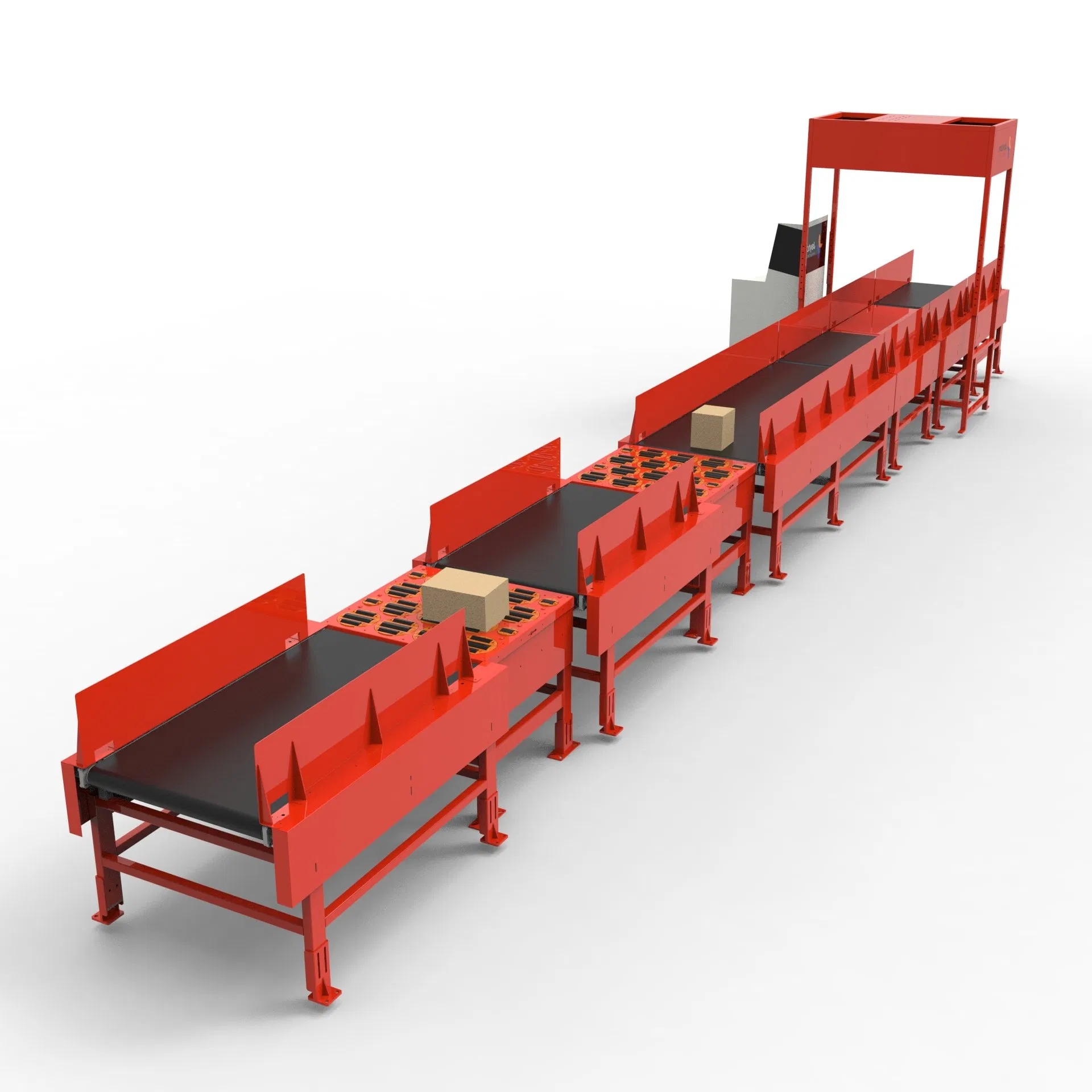

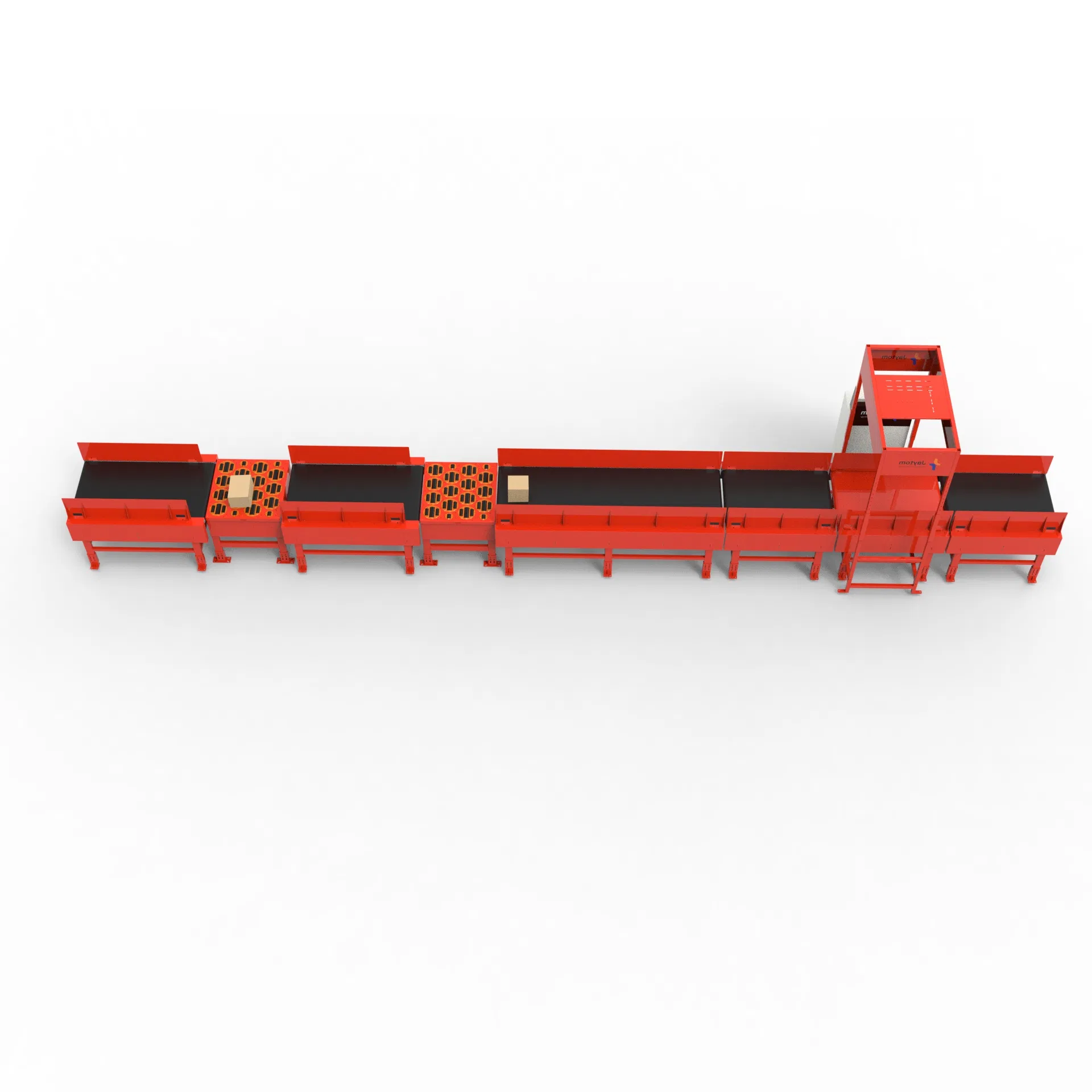

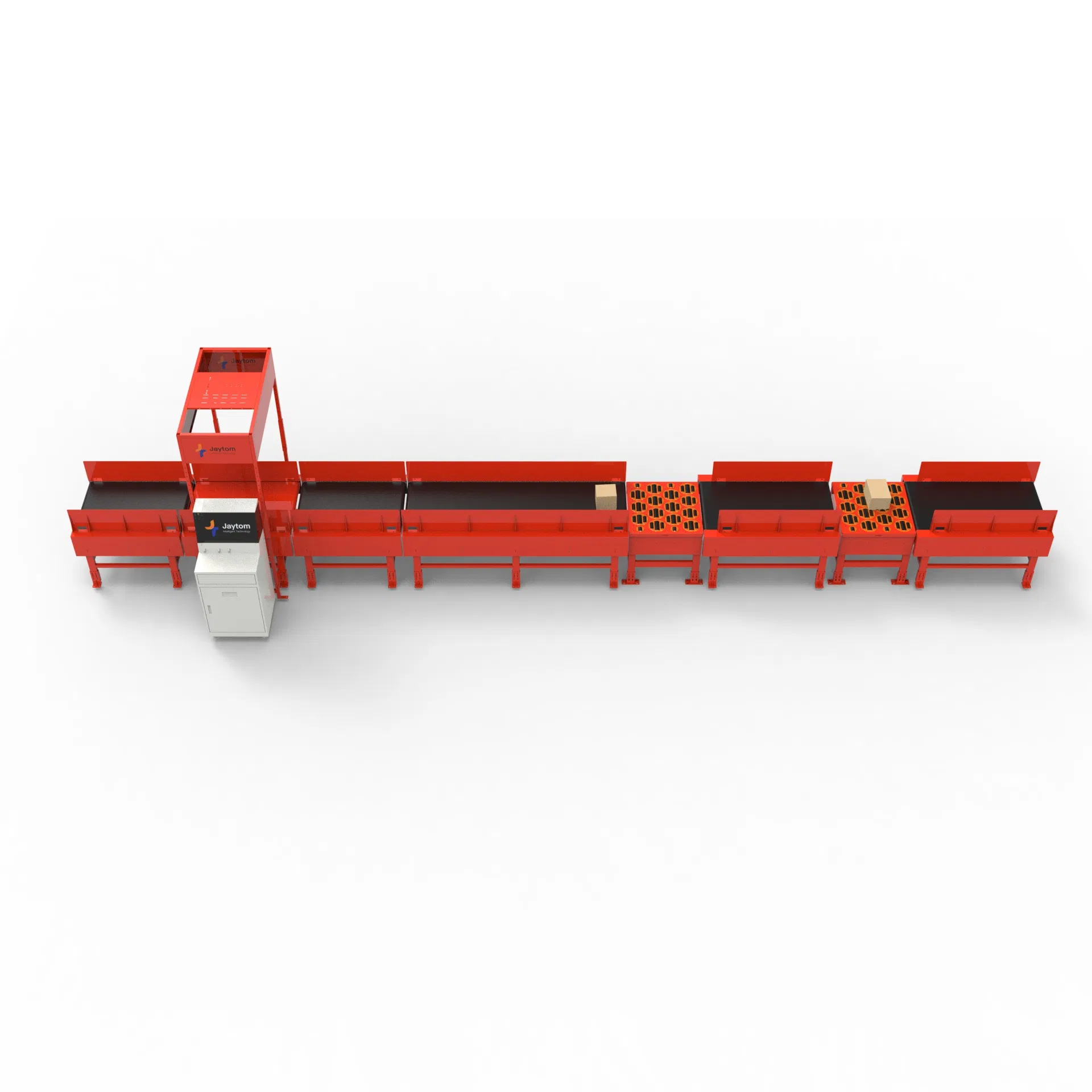

The three-stage top scanning system significantly improves barcode recognition rates (over 99%). Dual swing wheels allow for 1,500-3,000 parcels per hour capacity, 3-5 times faster than manual operations.

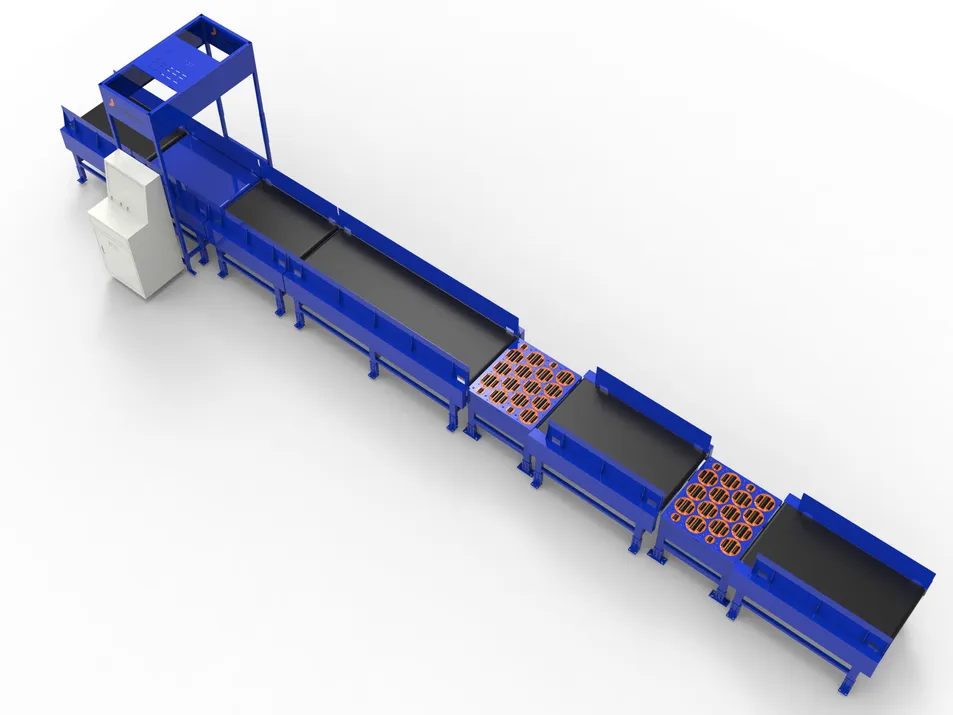

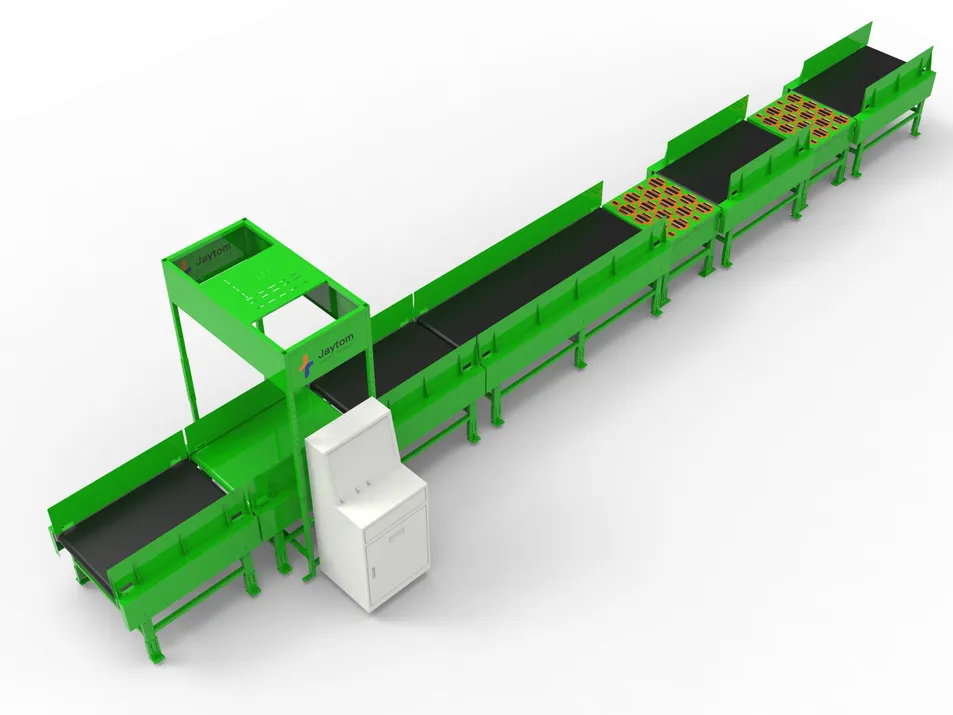

DWS system automatically collects weight, volume, and barcode data. Controlled by servo motors, it achieves positioning accuracy of ±5mm and reduces mis-sorting below 0.1%.
Compatible with parcels from 10cm-120cm and 0.1kg-50kg. Supports integration with WMS and TMS for real-time data synchronization.

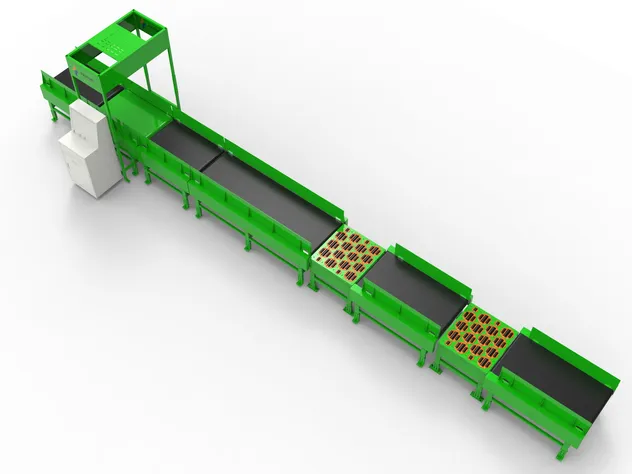

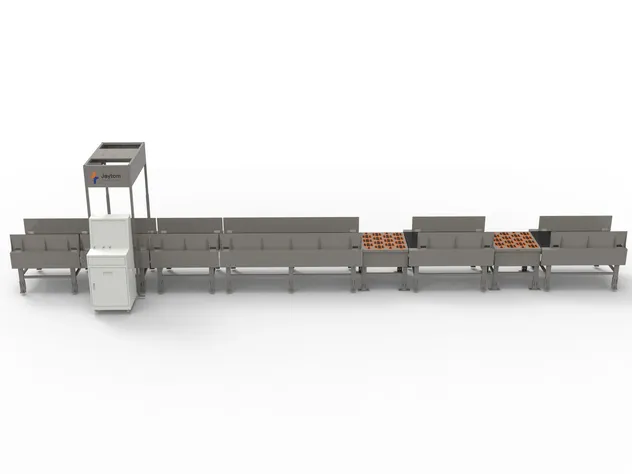

| Component | Function Description |
|---|---|
| DWS Parcel Pulling Section | Adjust parcel posture for suitable weighing entry angle. |
| Single-scale Weighing Section | Automatic weight detection and data recording. |
| DWS Buffer Section | Information processing of scanned items. |
| Wheel Sorter | Automatic Sorting execution. |
| Efficiency Parameters | Speed: 1.5~2m/s | Throughput: 6000 |
| Parcel Size Compatibility | W100×L100×H50 to W800×L1500×H700 |
| Barcode Types | 1D (Code128/39/EAN), 2D (QR/DM) |

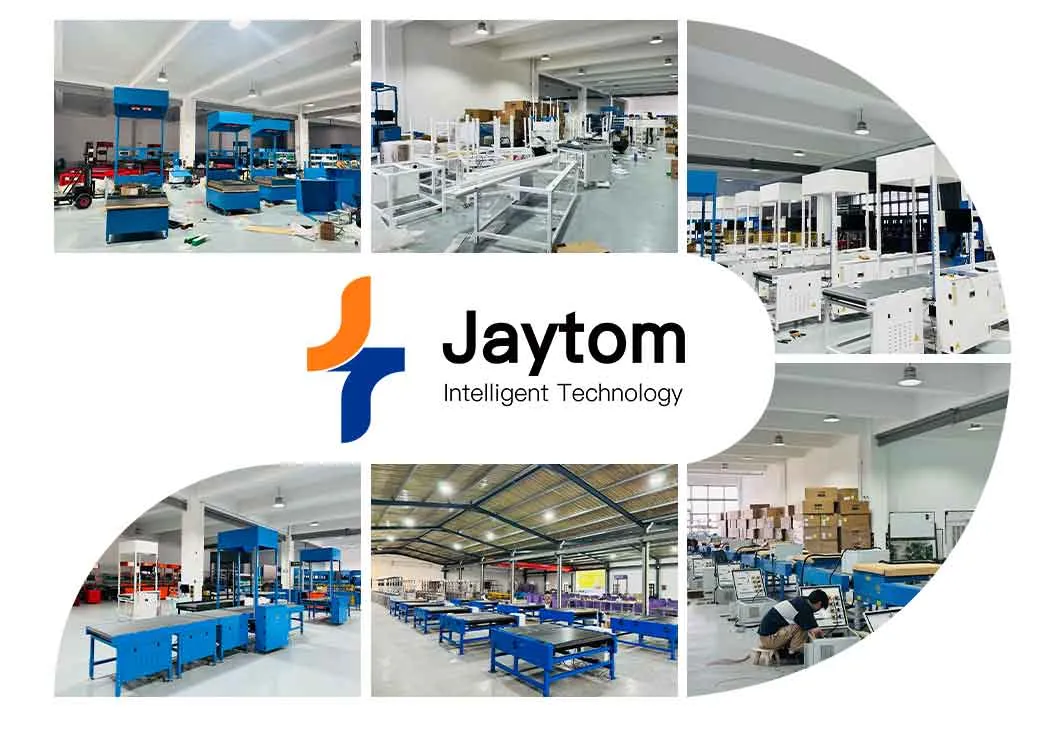

Founded in 2020, our company is a system integrator deeply exploring the logistics industry. We focus on providing overall logistics solutions supported by barcode scanning, 3D visual measurement, and automated control technology. Our team consists of experienced R&D engineers with expertise in image processing and machine learning.
