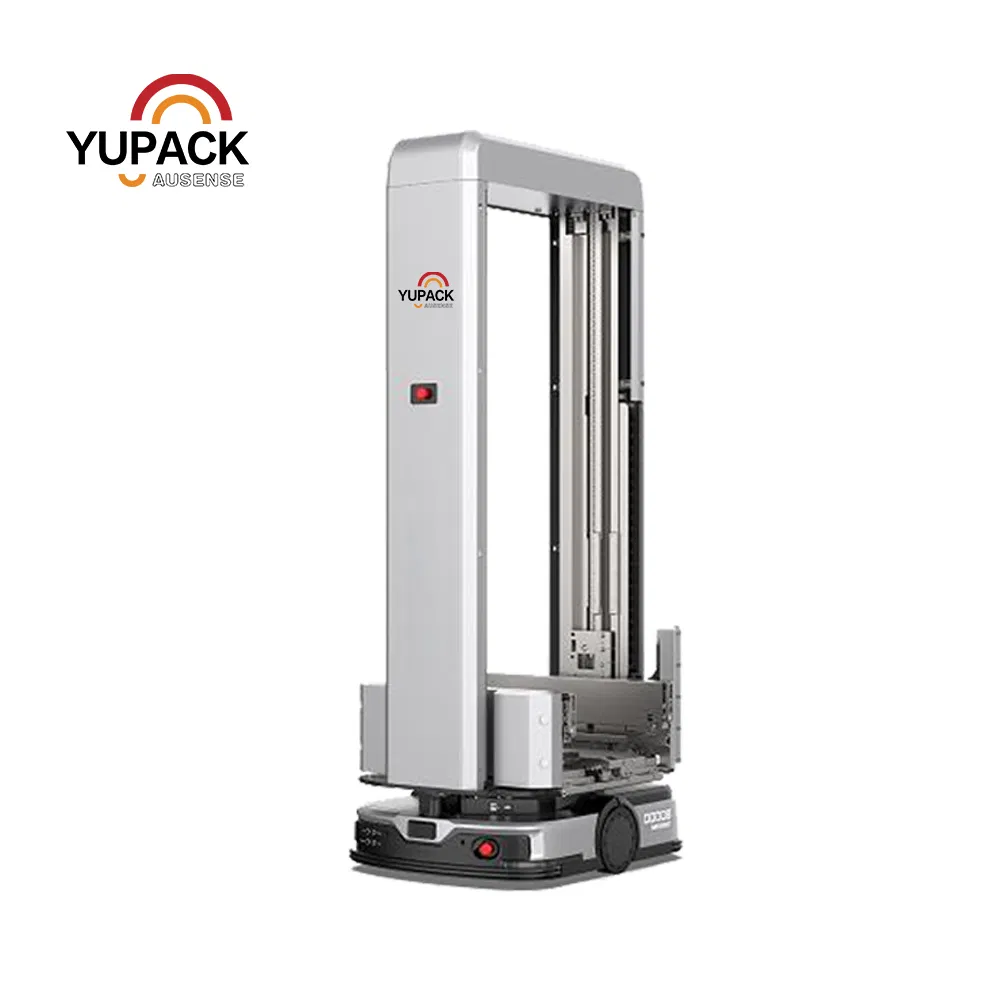

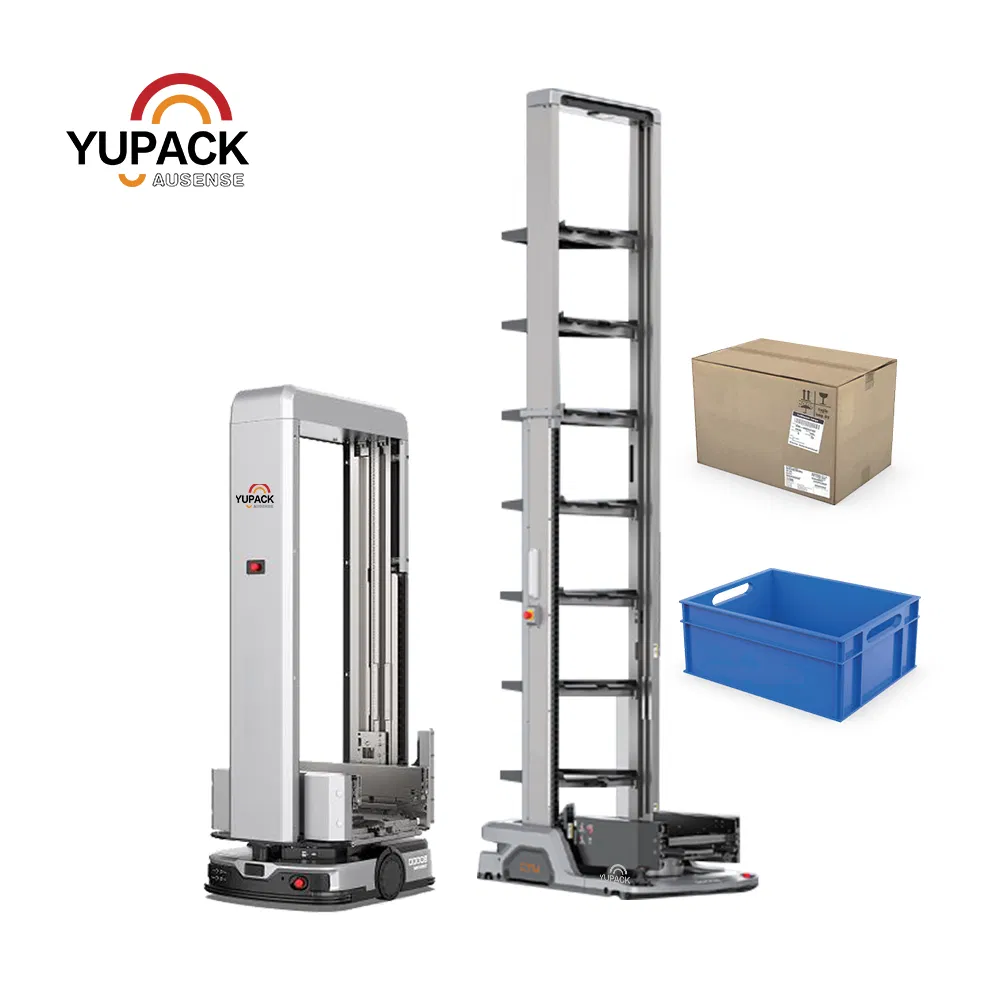

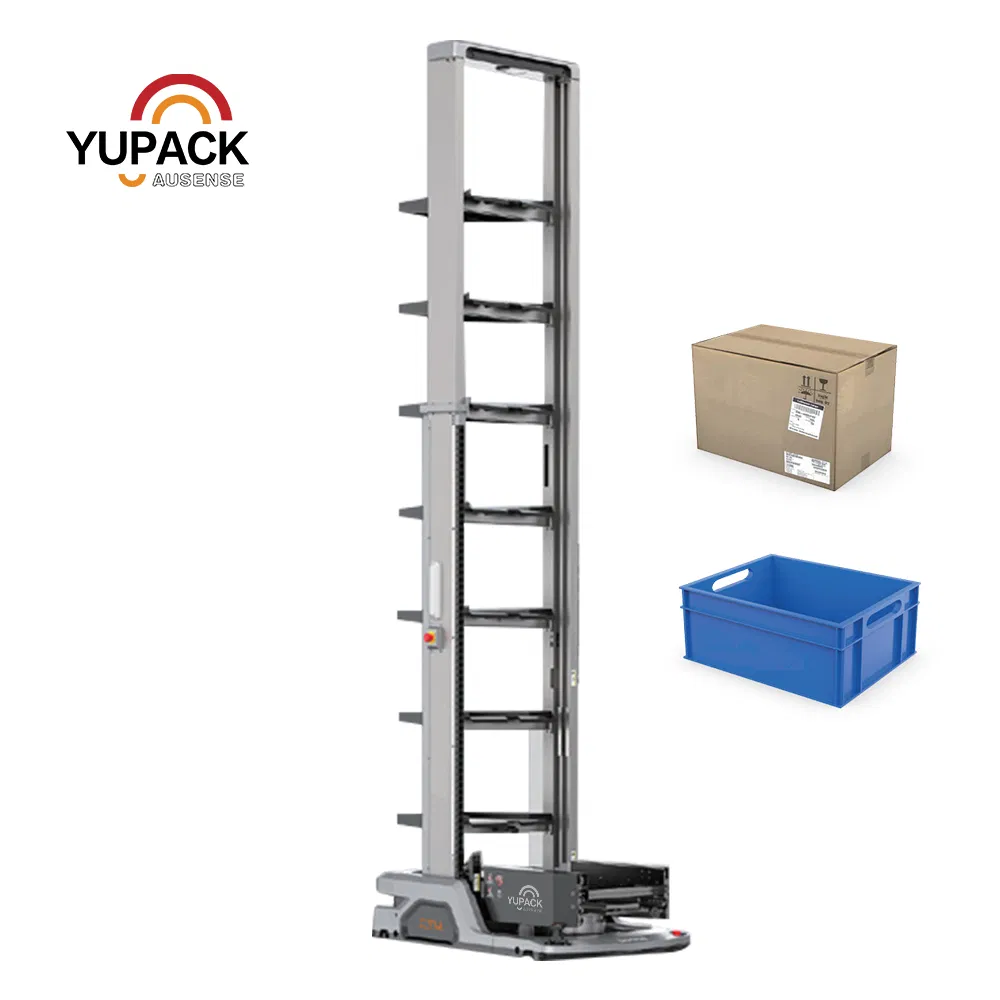

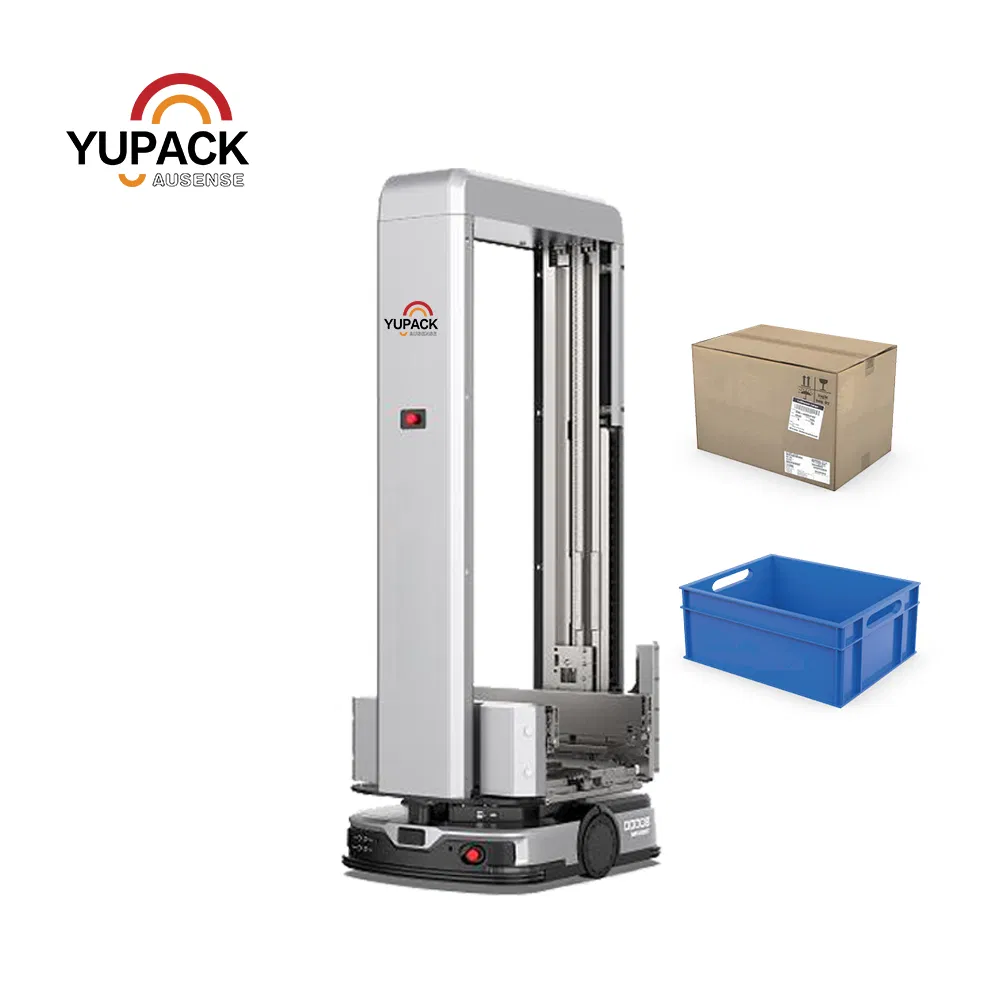

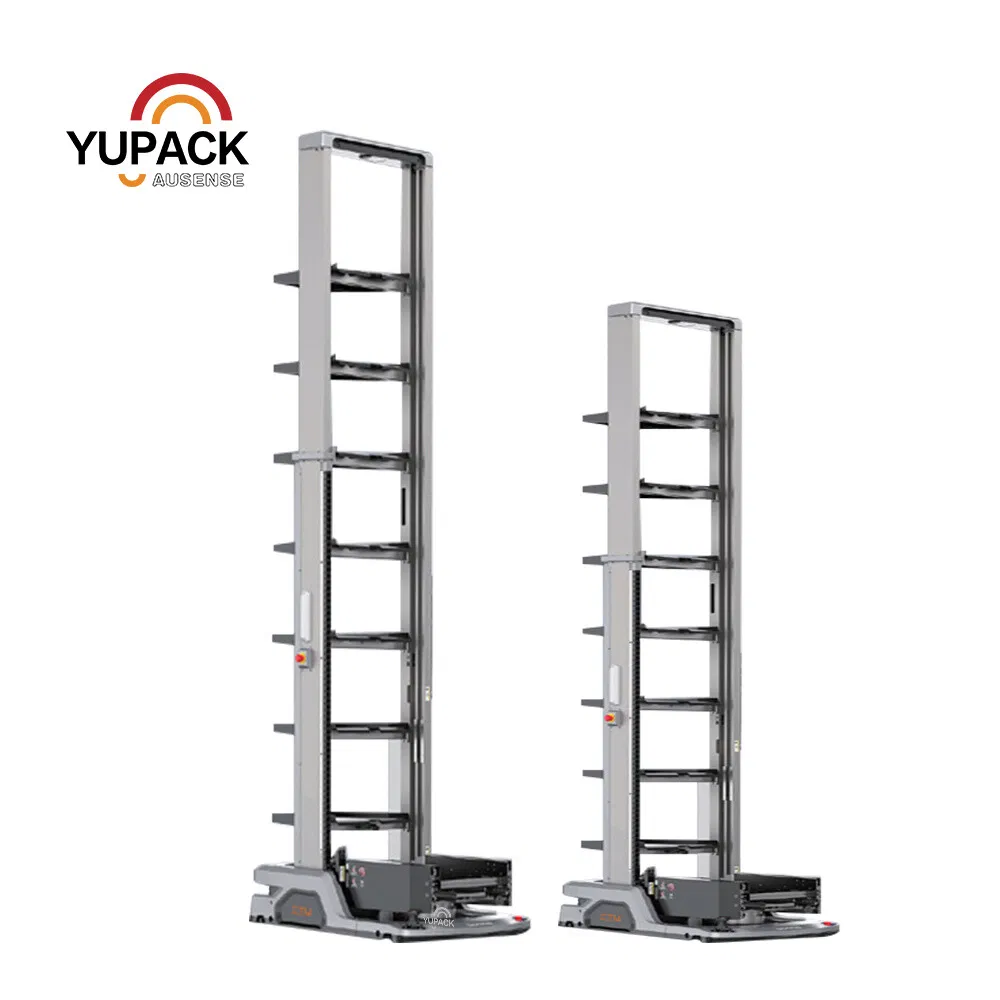

Parcel Sorting Carton Transfer Unit Ctu AMR Robot Tote Carrier for E-Commerce and Express Logistics
Parcel Sorting Carton Transfer Unit Ctu AMR Robot Tote Carrier for E-Commerce and Express Logistics
Parcel Sorting Carton Transfer Unit Ctu AMR Robot Tote Carrier for E-Commerce and Express Logistics
Parcel Sorting Carton Transfer Unit Ctu AMR Robot Tote Carrier for E-Commerce and Express Logistics
Parcel Sorting Carton Transfer Unit Ctu AMR Robot Tote Carrier for E-Commerce and Express Logistics
1 / 5
Parcel Sorting Carton Transfer Unit Ctu AMR Robot Tote Carrier for E-Commerce and Express Logistics
Parcel Sorting Carton Transfer Unit Ctu AMR Robot Tote Carrier for E-Commerce and Express Logistics
Parcel Sorting Carton Transfer Unit Ctu AMR Robot Tote Carrier for E-Commerce and Express Logistics
Parcel Sorting Carton Transfer Unit Ctu AMR Robot Tote Carrier for E-Commerce and Express Logistics
Parcel Sorting Carton Transfer Unit Ctu AMR Robot Tote Carrier for E-Commerce and Express Logistics

Parcel Sorting Carton Transfer Unit Ctu AMR Robot Tote Carrier for E-Commerce and Express Logistics

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

Product Overview
Model NO.
CTU-ASRS-100H
Automatic Grade
Automatic
Driven Type
Electric
Material Type
Carbon Steel
System Type
Automated Storage and Retrieval System (ASRS/CTU)
Load Capacity
1000 Kg / 2200 Lbs
Max. Height
Up to 25m
Aisle Width
~1600 - 2000 mm
Technical Parameters
Category Feature Specification Details
Core Specifications System Type Automated Storage and Retrieval System (ASRS/CTU)
Load Capacity 1000 kg / 2200 lbs (Standard. Custom available)
Max. System Height Up to 25m (High-Bay)
Pallet Size 1200 x 1000 mm / 1200 x 800 mm (Customizable)
Structure Frame Material S355JR / Q355B High-Strength Structural Steel
Surface Treatment Shot blasted, phosphated, and epoxy powder-coated
Fire Resistance Class A60 (Optional upgrade)
Performance S/R Machine Stacker Crane (Single-Mast or Double-Mast)
Traveling Speed 0-120 m/min (Horizontal), 0-40 m/min (Vertical)
Accuracy ±2 mm
Safety Devices Laser obstacle detection, emergency stop, overload protection, safety light curtains
Detailed Photos
CTU AMR Robot Carrier

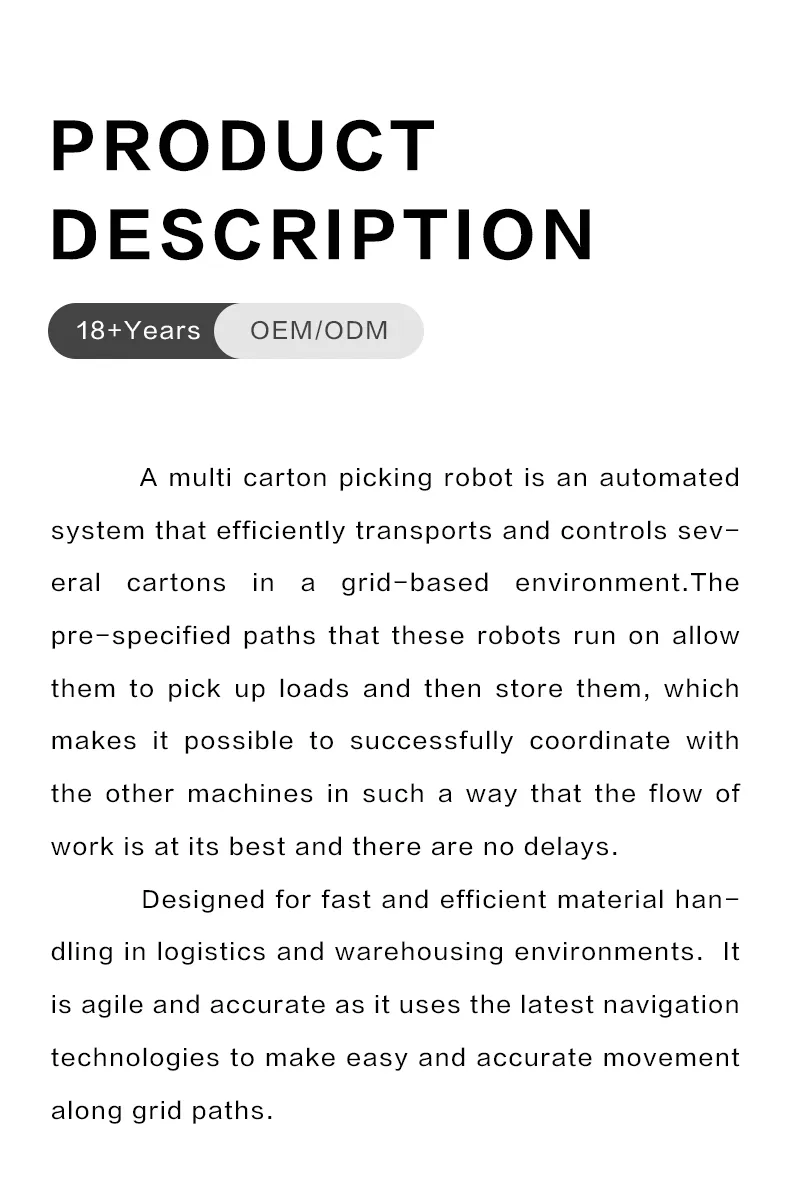

Parcel Sorting Unit

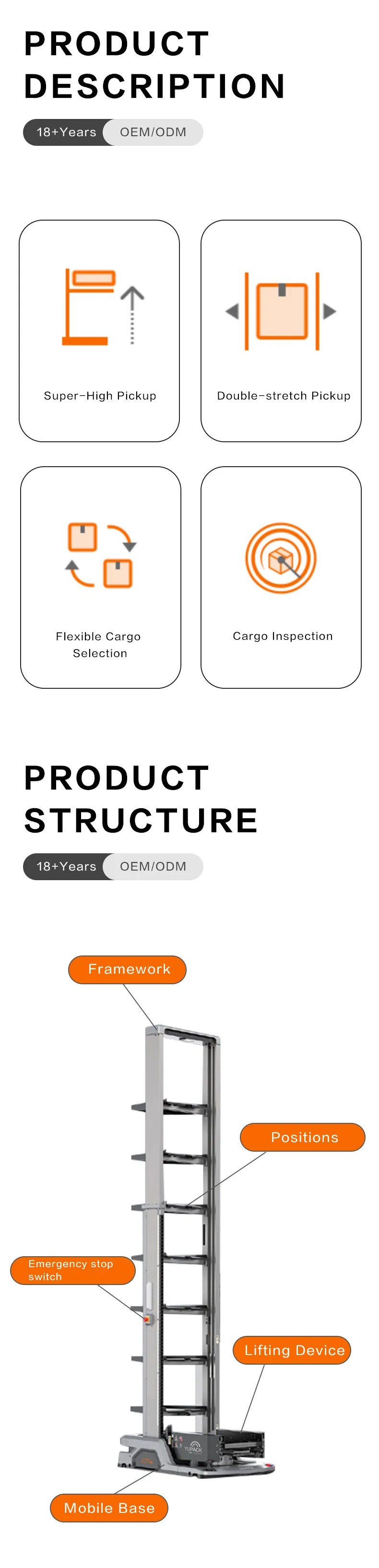

Carton Transfer Unit

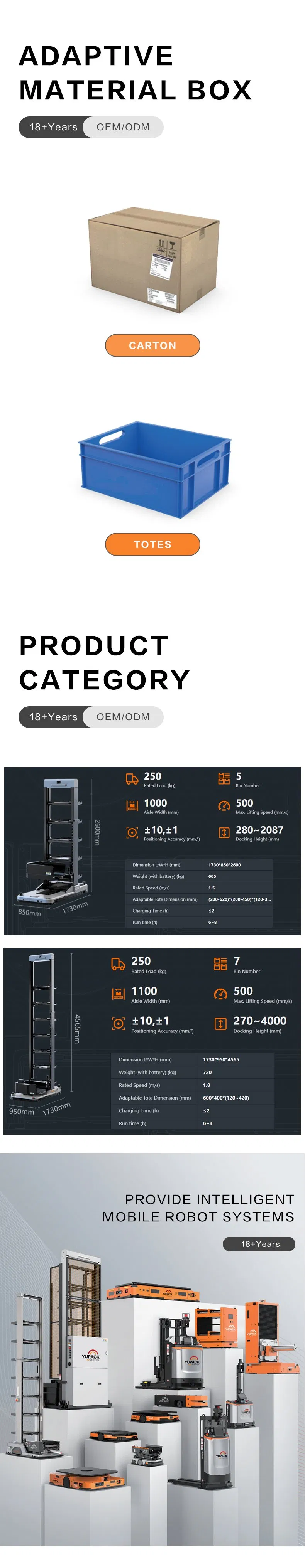

Express Logistics Carrier

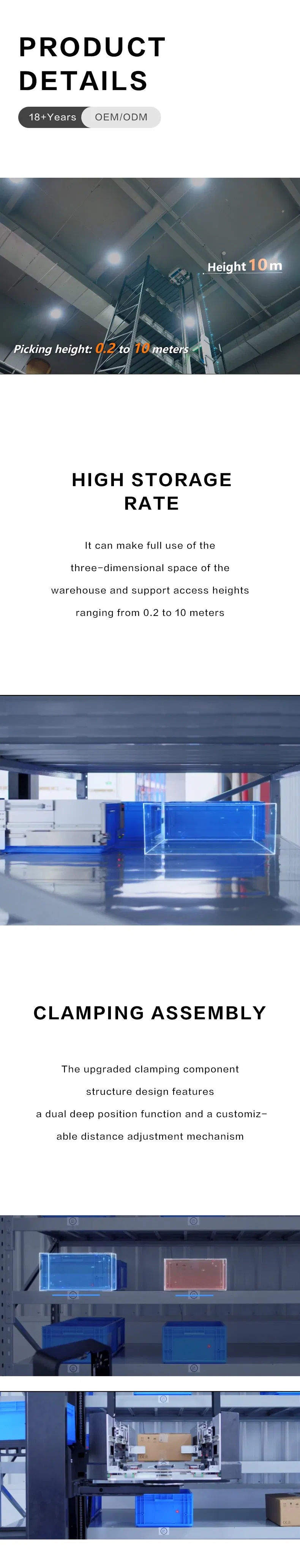

E-Commerce Logistics Solution

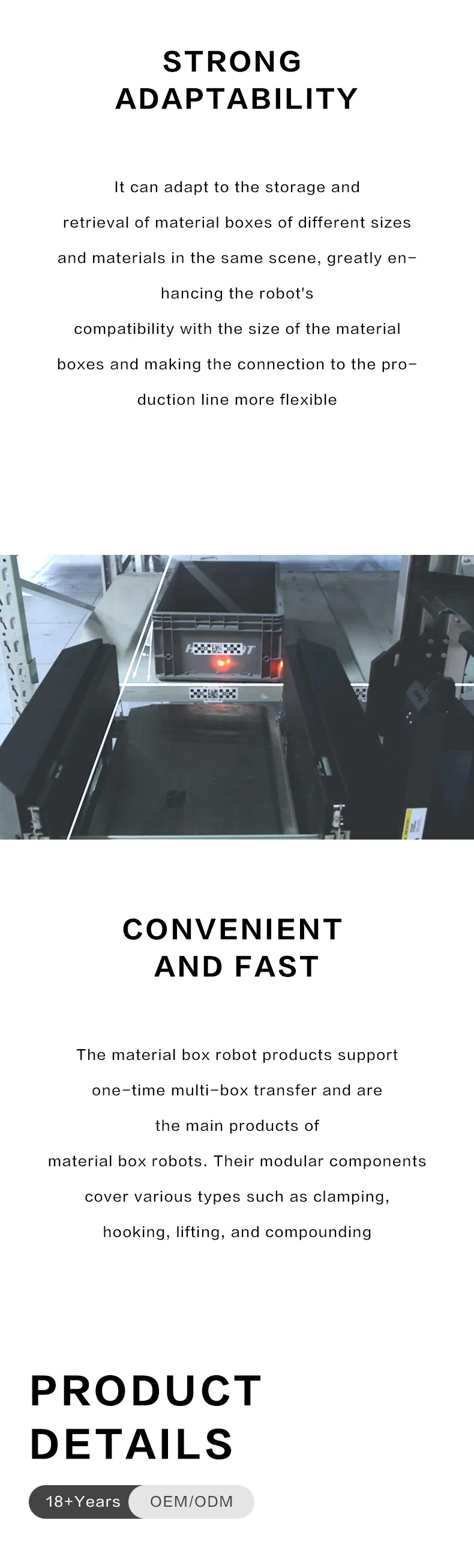

Warehouse Automation System

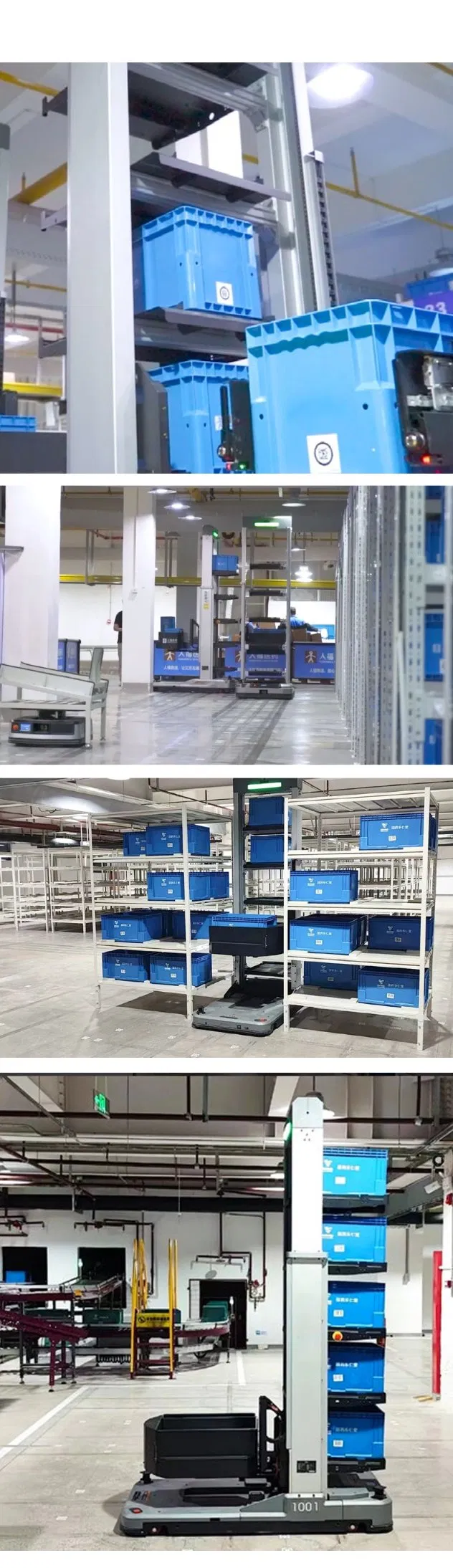

Automated Sorting Machine
Conveyor Line Integration
Logistics Storage System
Frequently Asked Questions
What is the maximum load capacity of the CTU-ASRS-100H?
The system supports a standard load capacity of 1000 kg (2200 lbs) per location. Custom weight capacities can be designed based on specific client requirements.
How high can this automated storage system be installed?
The system is designed for high-bay environments and can reach heights of up to 25 meters, optimizing vertical warehouse space efficiently.
What industries benefit most from this technology?
It is ideal for high-density storage needs in Cold Storage, E-commerce Fulfillment Hubs, Automotive Manufacturing, and large-scale Logistics & Distribution Centers.
What kind of positioning accuracy does the stacker crane offer?
The Storage/Retrieval (S/R) machine provides high-precision operation with a positioning accuracy of ±2 mm.
What safety certifications does the system meet?
The system is CE certified and compliant with EN 15512:2020 standards for steel static storage systems, as well as SEI and FEM 10.2.02 design guidelines.
Can the system integrate with existing Warehouse Management Systems (WMS)?
Yes, the control system is WMS-integration ready, allowing for seamless communication between the automated hardware and your facility's software.
