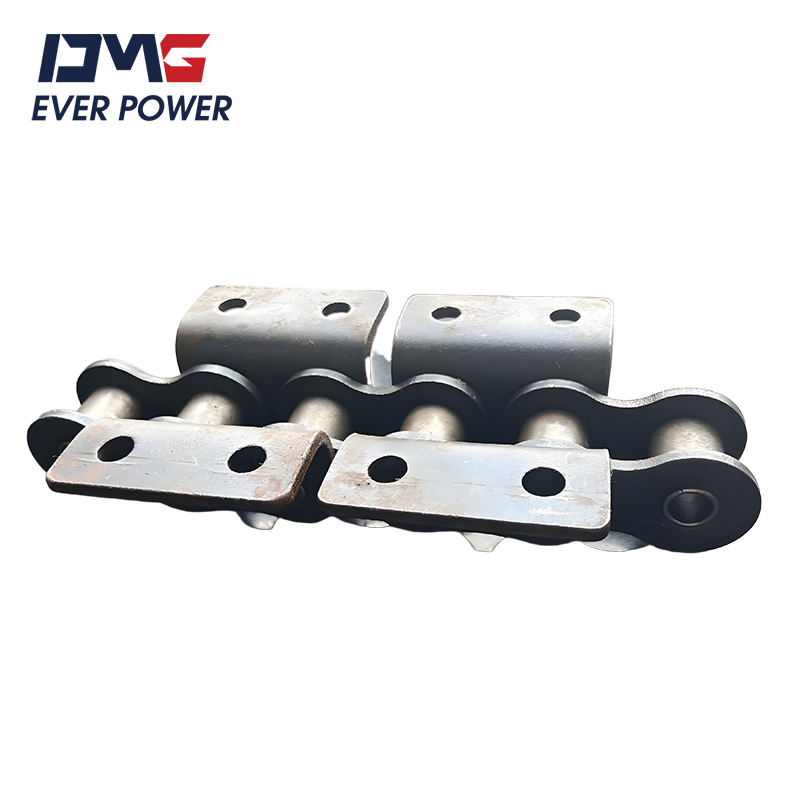

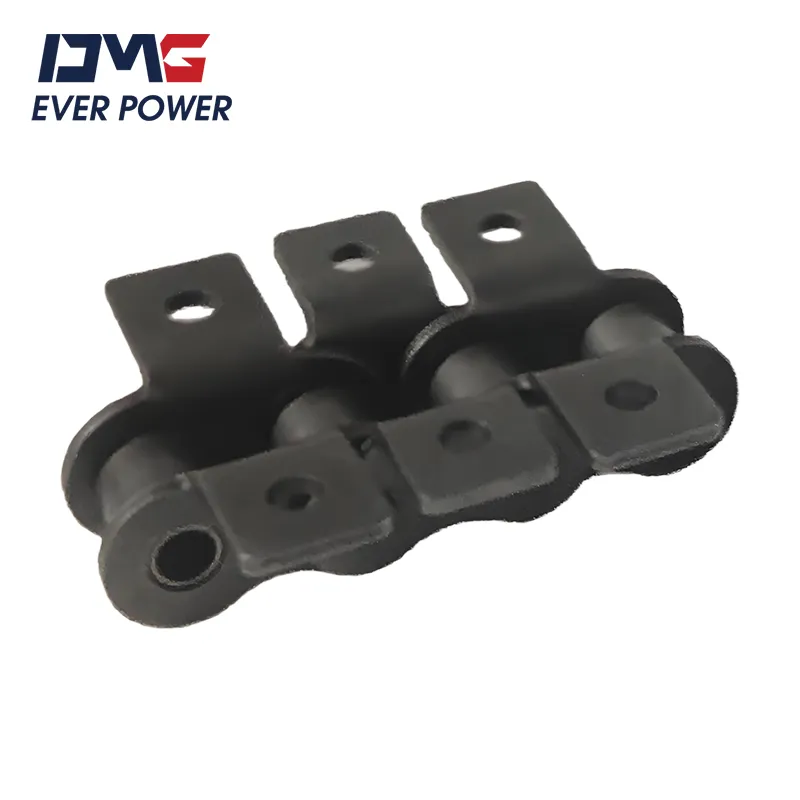

Short-pitch conveyor chain accessories are specialized structures designed for installing functional components on precision roller chains (A and B series). These attachments optimize chains for heavy-duty conveying equipment.

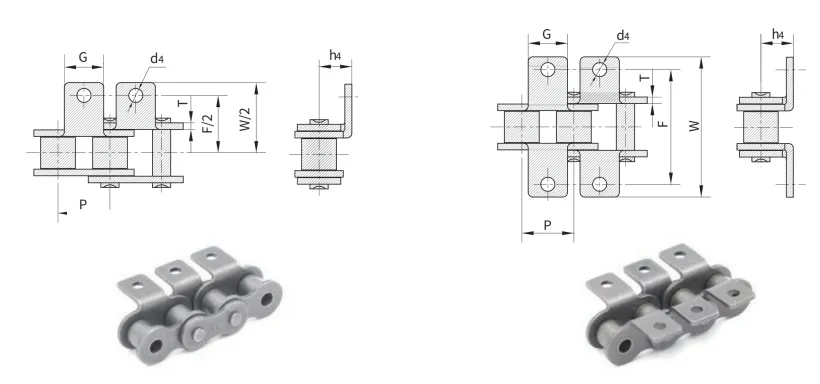

| DIN/ISO No. | ANSI No. | P (mm) | G (mm) | F (mm) | W (mm) | T (mm) | h4 (mm) | d4 (mm) |
|---|---|---|---|---|---|---|---|---|
| 04C | 25 | 6.350 | 5.6 | 13.80 | 23.2 | 0.80 | 4.30 | 3.4 |
| 06C | 35 | 9.525 | 7.9 | 19.00 | 28.6 | 1.30 | 6.35 | 3.4 |
| 08A | 40 | 12.700 | 9.5 | 25.40 | 35.2 | 1.50 | 7.90 | 3.4 |
| 10A | 50 | 15.875 | 12.7 | 31.75 | 46.2 | 2.03 | 10.30 | 5.5 |
| 12A | 60 | 19.050 | 15.9 | 38.10 | 55.6 | 2.42 | 11.90 | 5.5 |
| 16A | 80 | 25.400 | 19.1 | 50.80 | 64.8 | 3.25 | 15.90 | 6.8 |
| 20A | 100 | 31.750 | 25.4 | 63.50 | 89.8 | 4.00 | 19.80 | 9.2 |

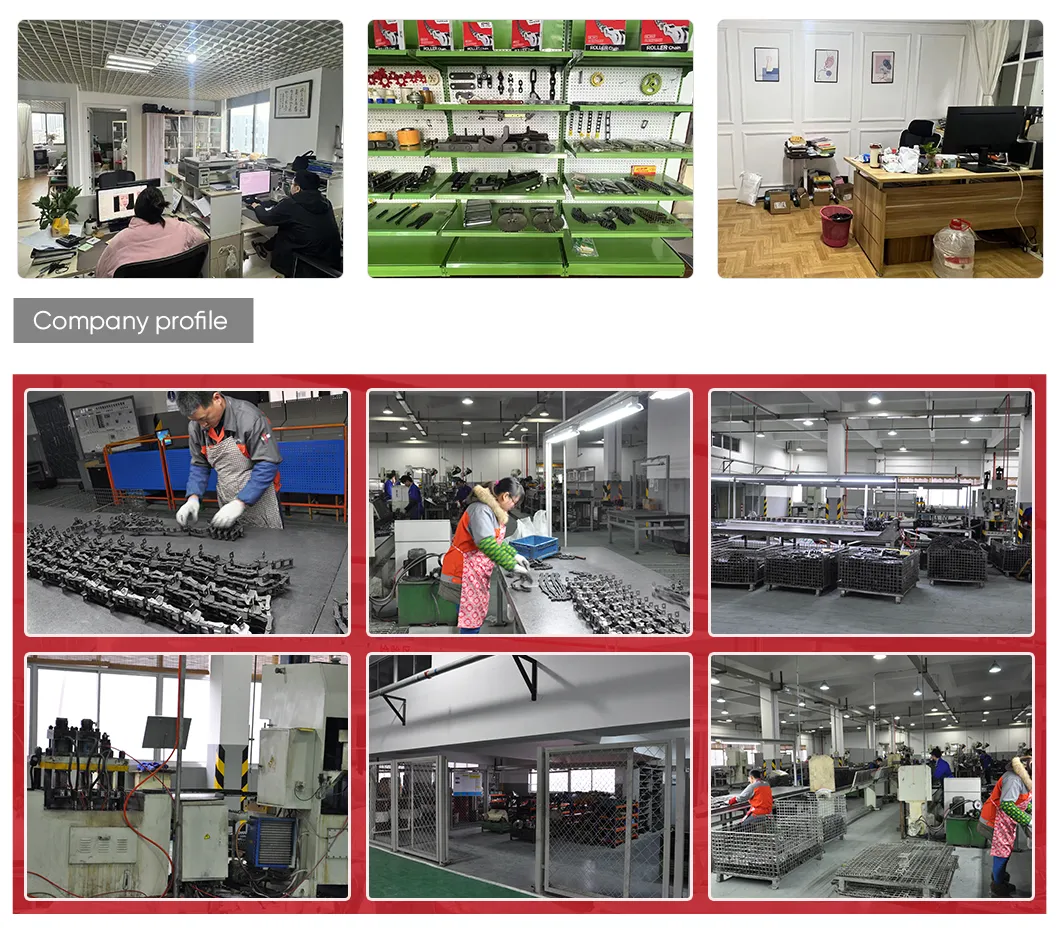

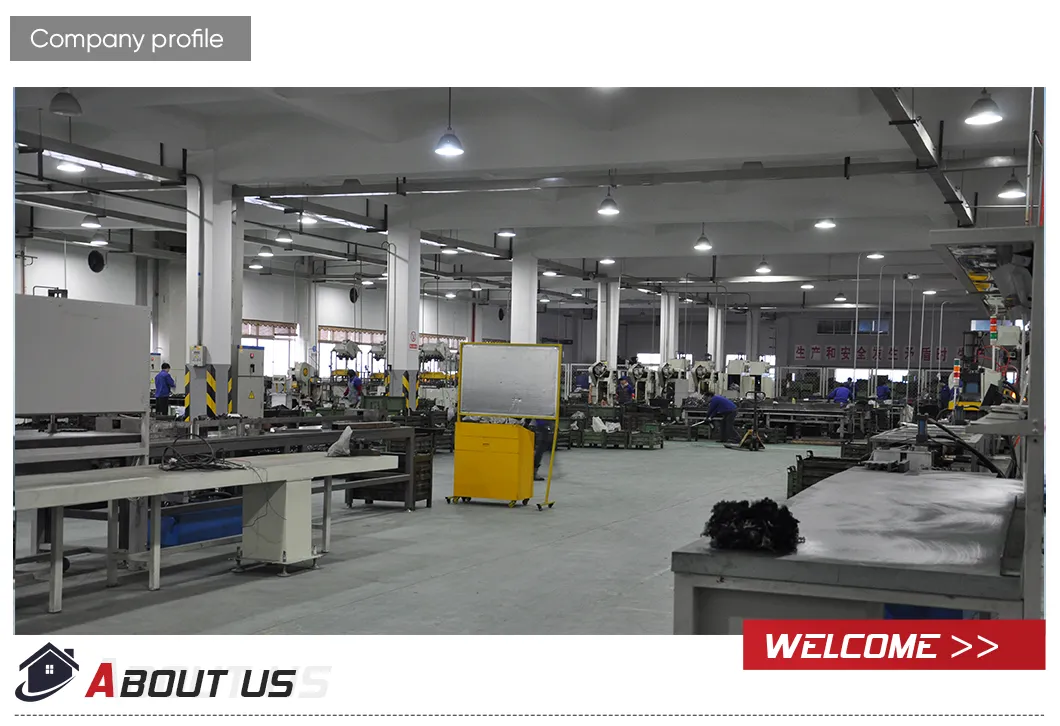

Specialized in the development, manufacture, and sales of mechanical transmission products. Our facility spans over 33,000 square meters with more than 100 sets of advanced processing machines and rigorous testing equipment. Our products are sold to over 50 countries globally, serving industries such as food processing, engineering, printing, woodworking, and textiles.

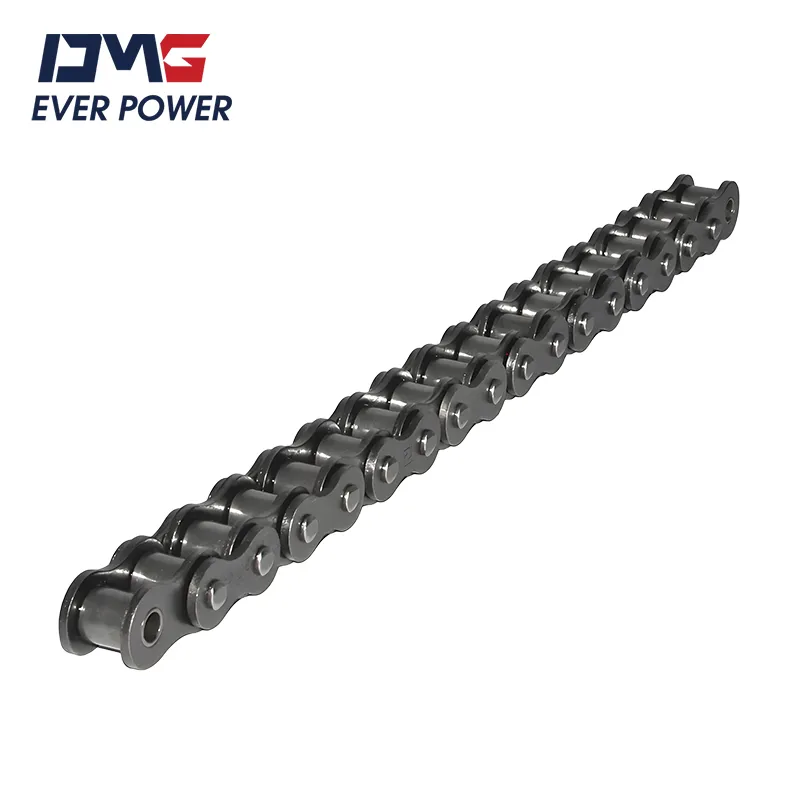

Transmission Chains: Used for transmitting power and motion through sprocket meshing.

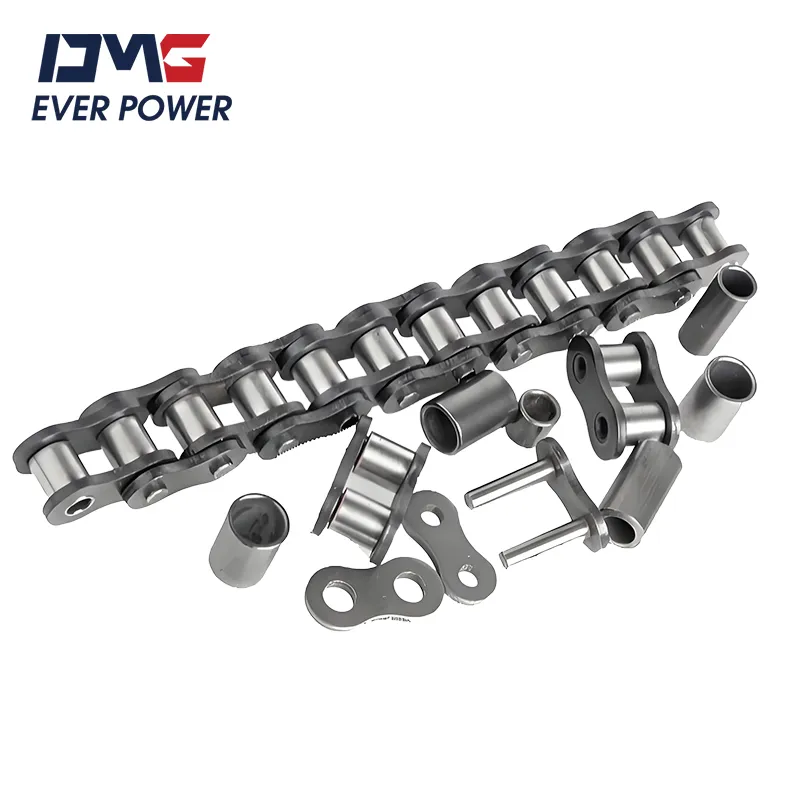

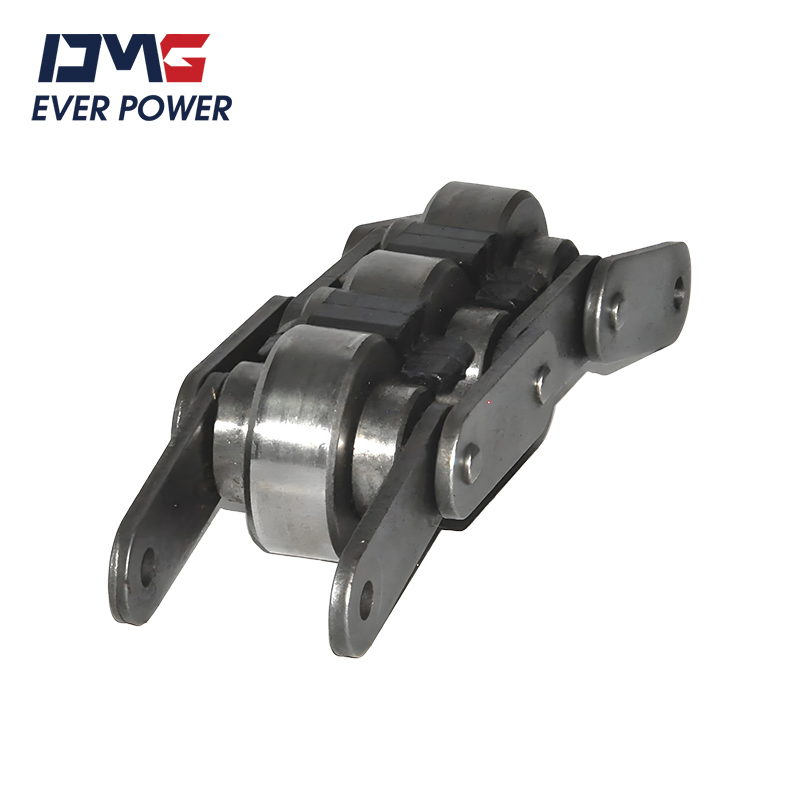

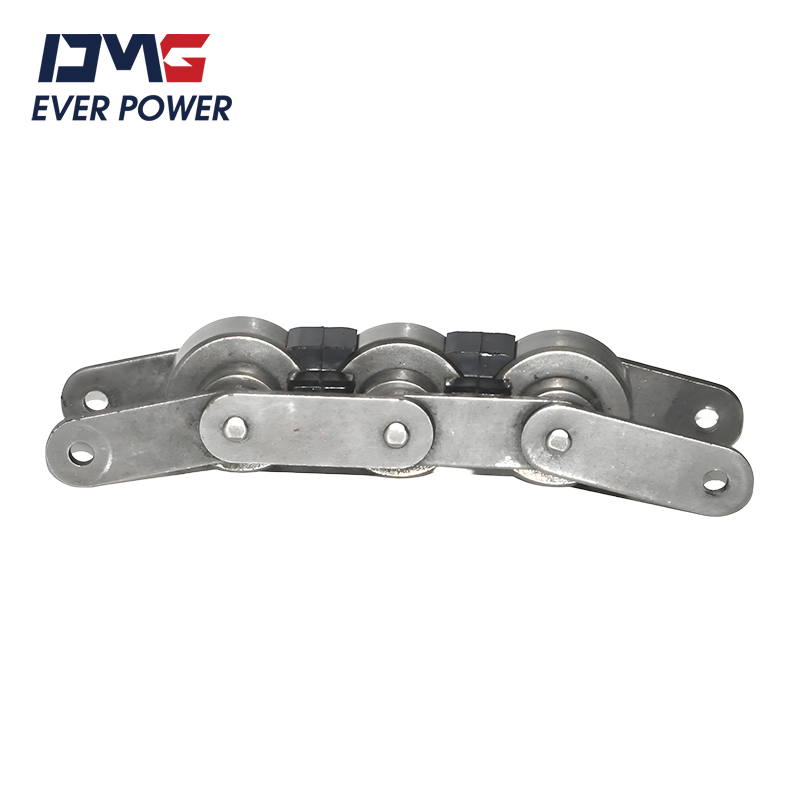

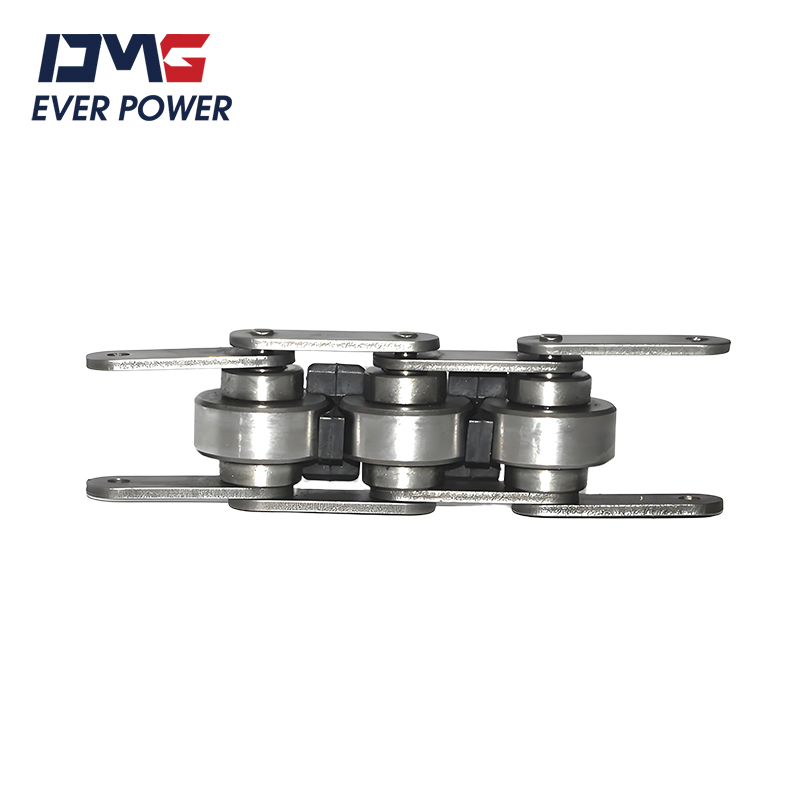

Precision Conveyor Chains: High-precision bearings fixed by constraining chain plates.

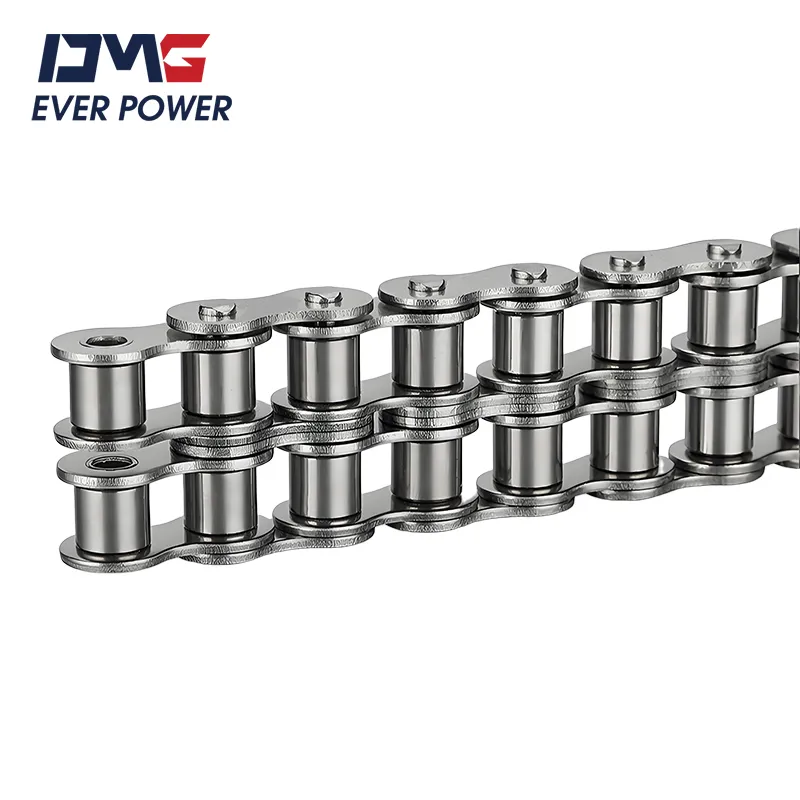

Stainless Steel Chains: Corrosion-resistant short-link and long-link cables.

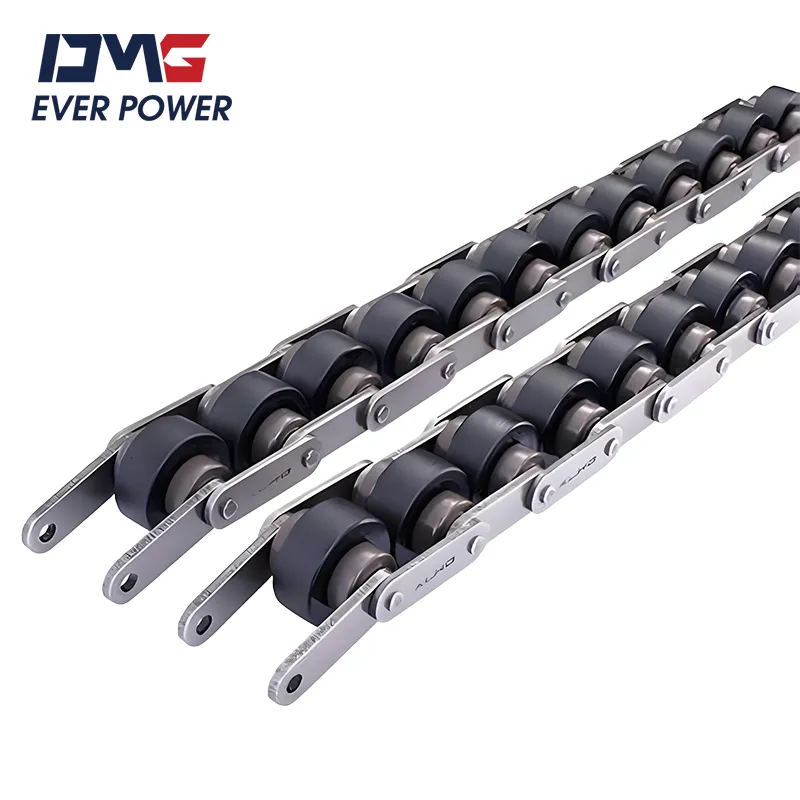

Agricultural Chains: Specialized plates for feeding, lifting, and harvesting machinery.
Professional sea and air freight packaging to ensure product integrity during international transit.
