Professional X-ray Inspection System for Precision Industrial Solutions
Professional X-ray Inspection System for Precision Industrial Solutions
Professional X-ray Inspection System for Precision Industrial Solutions
Professional X-ray Inspection System for Precision Industrial Solutions
1 / 4
Professional X-ray Inspection System for Precision Industrial Solutions
Professional X-ray Inspection System for Precision Industrial Solutions
Professional X-ray Inspection System for Precision Industrial Solutions
Professional X-ray Inspection System for Precision Industrial Solutions

Professional X-ray Inspection System for Precision Industrial Solutions

Customization: Available
After-sales Service: Possess
Automation: Automatic
Send Inquiry

Product Description

Basic Information
Model NO.
JM-DS3000
Condition
New
X-ray Tube Type
Closed
Voltage
80kv
Current
0.2mA
Focus Size
30μm
Weight
730kg
Power
800W
Power Supply
220V/50Hz
Dimensions
L886mm x W1402mm x H1950mm
Production Introduction
  • 80kv Closed type X-ray tube, durable and maintenance-free.
  • 17" HD digital flat panel detector (FPD).
  • Ultrafast counting: four 7" or one 17" reel in 6-8s.
  • Supports 17" reels or JEDEC trays with moisture-proof pouches.
  • AI deep learning algorithm with proprietary IP; software syncs data to cloud.
  • Automatic scanning and counting; prints label upon reel removal.
  • Boosts efficiency and accuracy, saves manpower, and shortens warehouse time.
  • Integrates with MES, ERP, WMS for digital warehouse management with permanent software updates.
Technical Specifications
Item Type Parameters & Functionality
X-ray source Type Closed type
Voltage / Current 80kv / 0.2mA
Focus Size 30μm
Detector Pixel Pitch 140μm
Image Size 430mm * 430mm
Resolution 3.6LP/mm (16bit)
Performance Max Tray Size 17 inches
Accuracy ≥99.99%
Scanning Barcode Automatic 1D and 2D barcode scanning
Safety Radiation Leakage Dose <0.5μSv/h

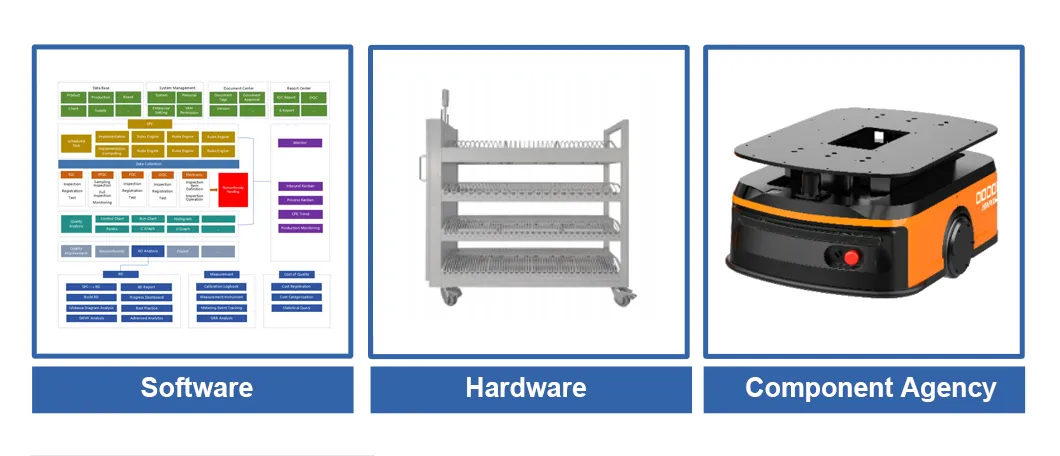

Main Product Display

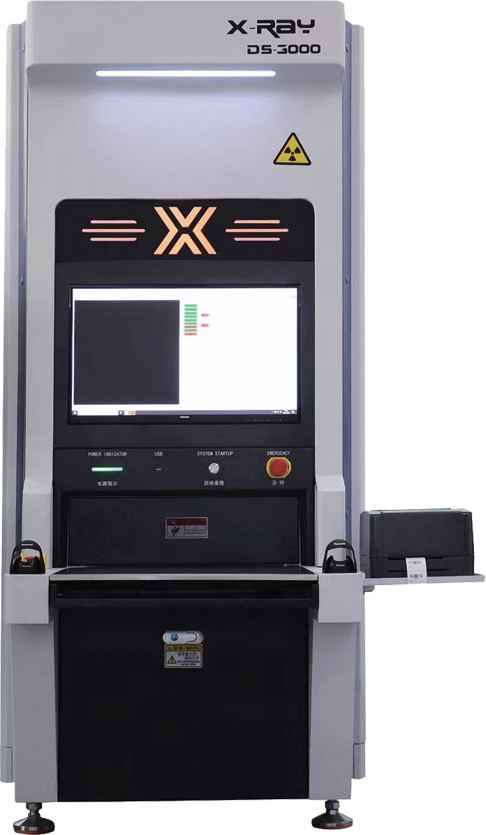

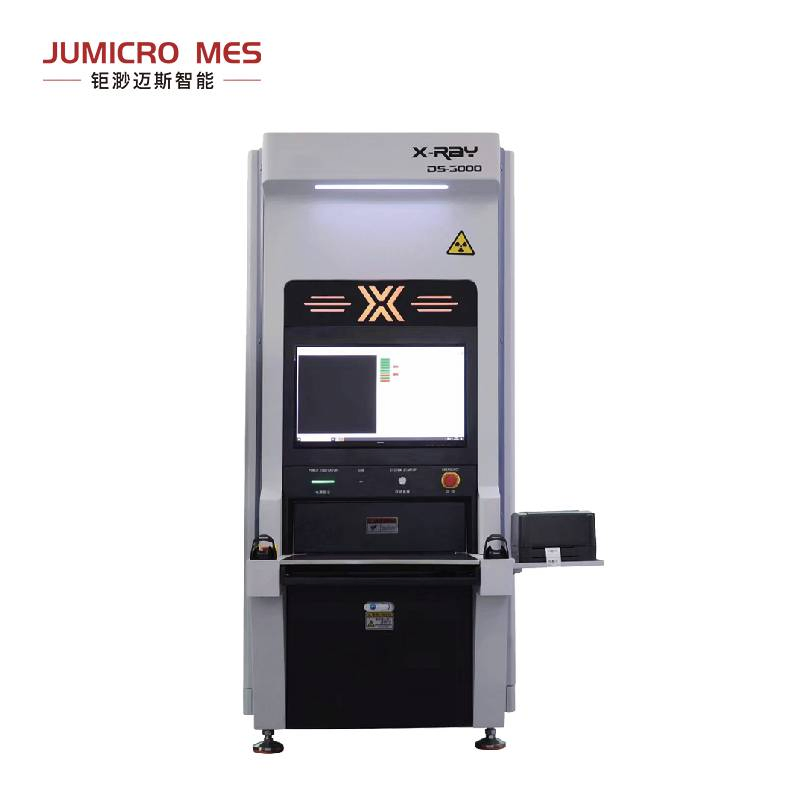

X-ray Inspection System
Profile
We are a leading provider of SMT intelligent equipment and industrial software solutions, as well as a high-tech enterprise holding 26 patent certificates and 23 software copyright certifications. We are committed to developing software systems such as MES (Manufacturing Execution System), WMS (Warehouse Management System), PLM (Product Lifecycle Management), and ERP (Enterprise Resource Planning), while also focusing on the production and sales of smart manufacturing hardware products.
Our product range includes smart sensor shelves, smart sensor mobile carts, intelligent X-ray component counters, smart stencil cabinets, smart moisture-proof cabinets, and smart tool cabinets. Centered on "precision manufacturing," we offer high-precision, high-stability end-to-end SMT solutions for global electronics manufacturers, helping clients increase production efficiency by over 30% while continuously advancing the industry toward intelligent manufacturing.

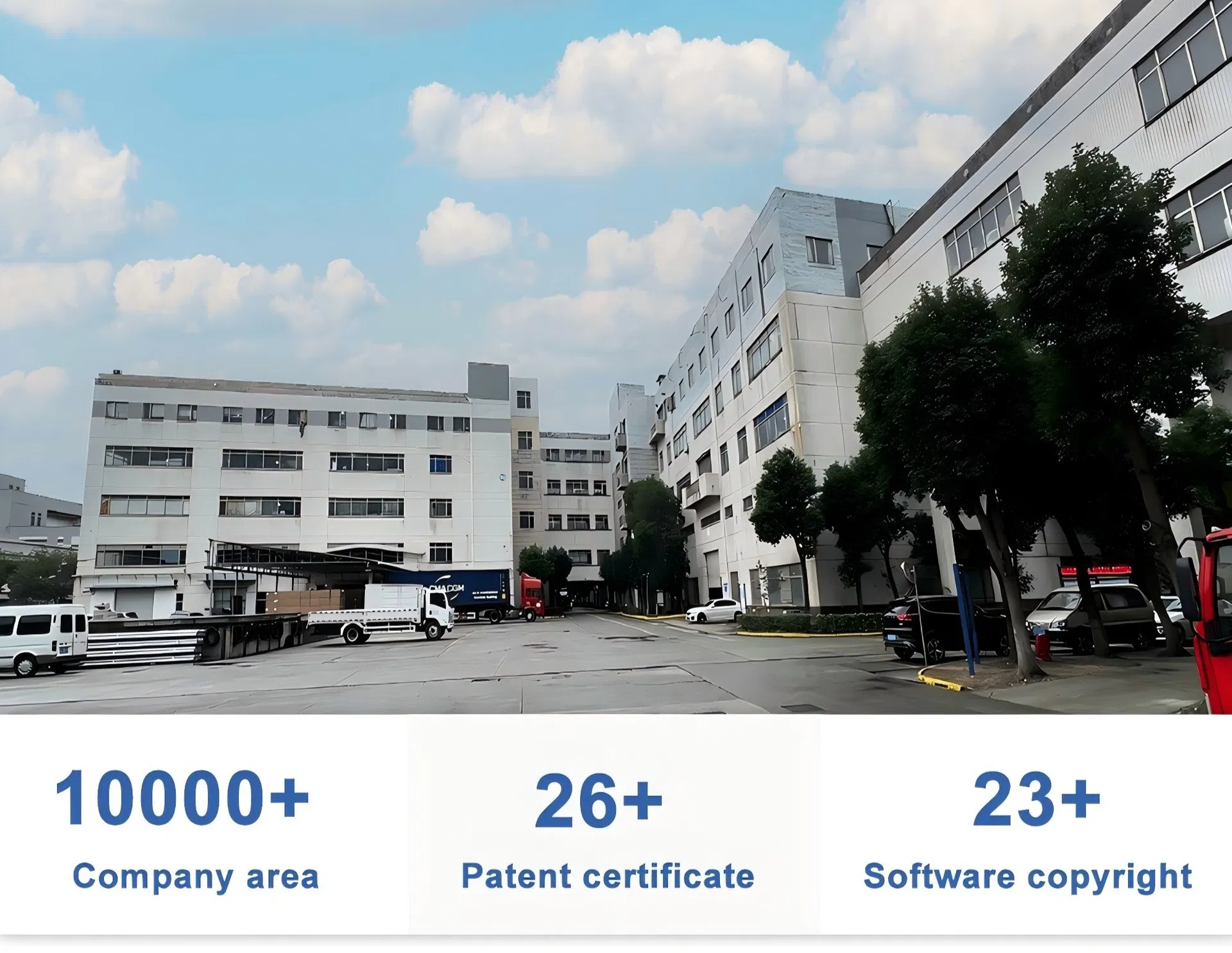

Factory Overview
Corporate Advantage
Advantages
Certificates & Quality
Certification
Exhibition & Packaging
Exhibition
Packaging & Shipping
Frequently Asked Questions
How soon can I get a response after requesting a quotation?
If you provide detailed requirements (model, quantity, lead time, location), we generally provide a formal quotation within 4 hours.
Can the product be customized? What is the production cycle?
Yes, we can customize products according to specific requirements. Production usually takes about 20 working days after order confirmation.
Are you a trade company or manufacturer?
We are a full SMT machines manufacturer for SMT lines in China, providing both SMT & DIP services.
Who are your main customers?
Our major clients include industry leaders such as Canon, BYD, Amphenol, BizLink, and more.
Why should I choose your equipment?
As a leading supplier, we offer top-tier SMT equipment, integrated software solutions, and a professional global after-sales service team.
What systems does the software support?
Our software supports docking with various systems including ERP, MES, and WMS for seamless warehouse management.
