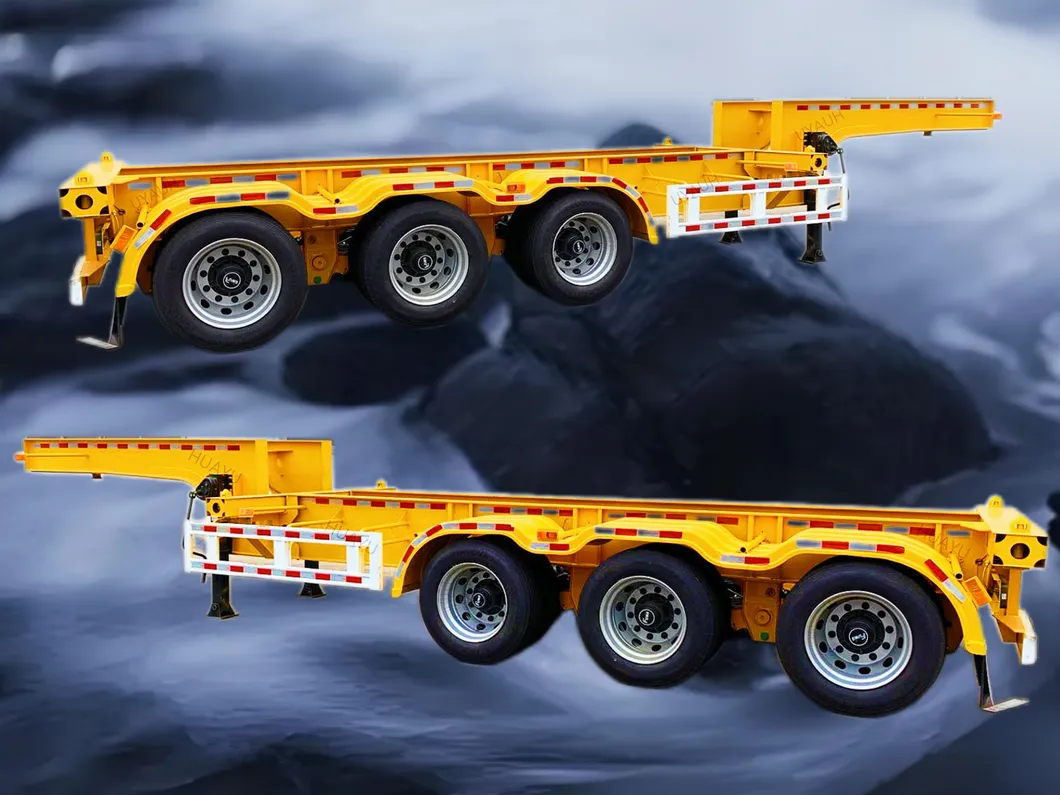

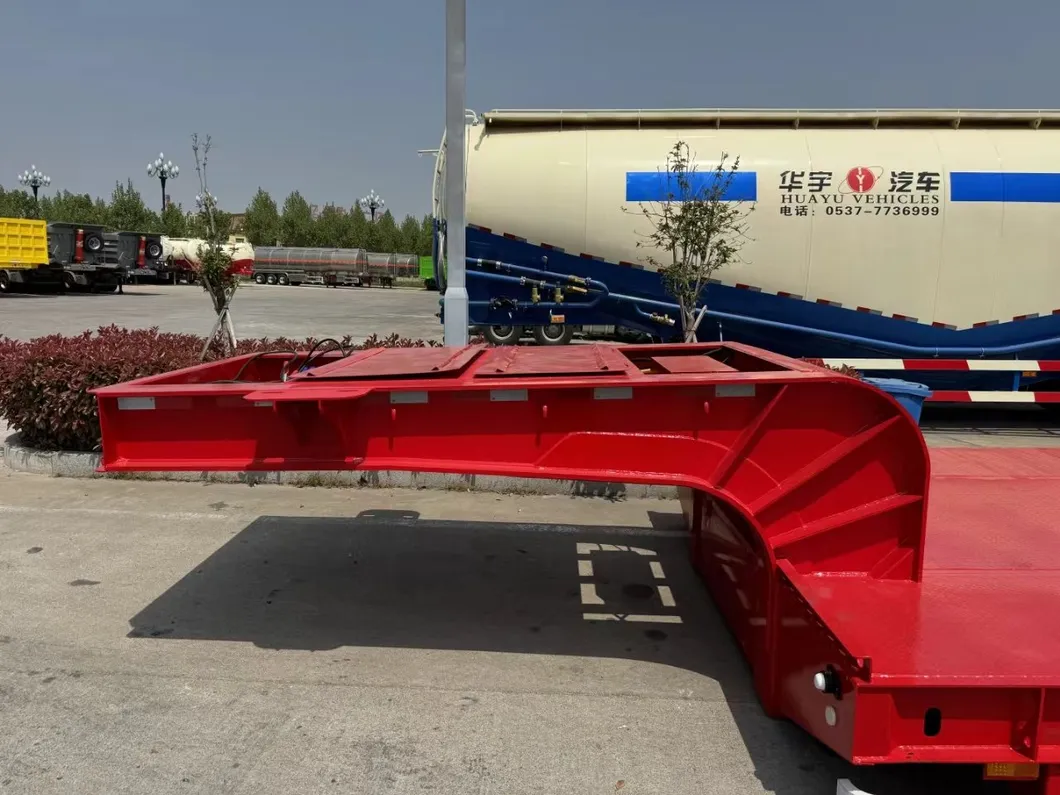

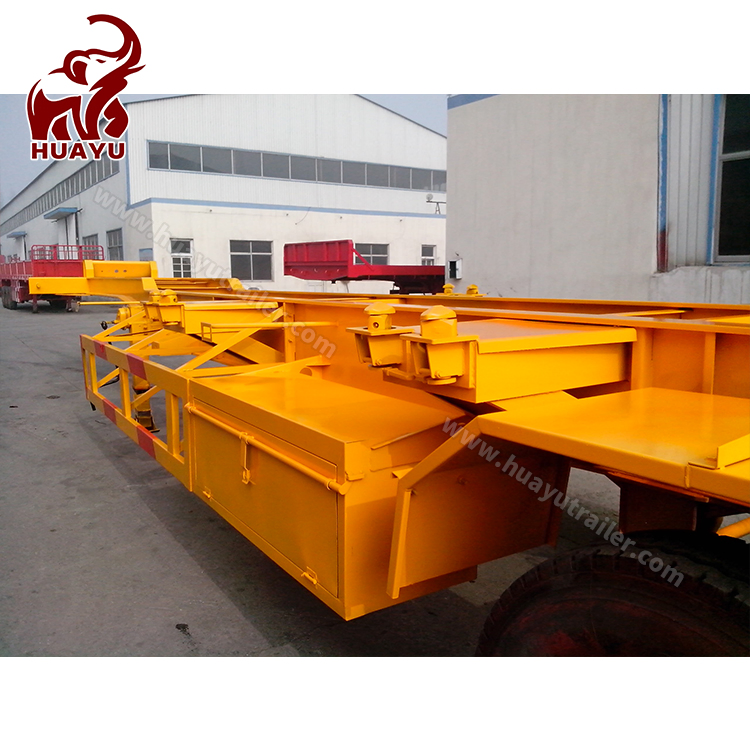

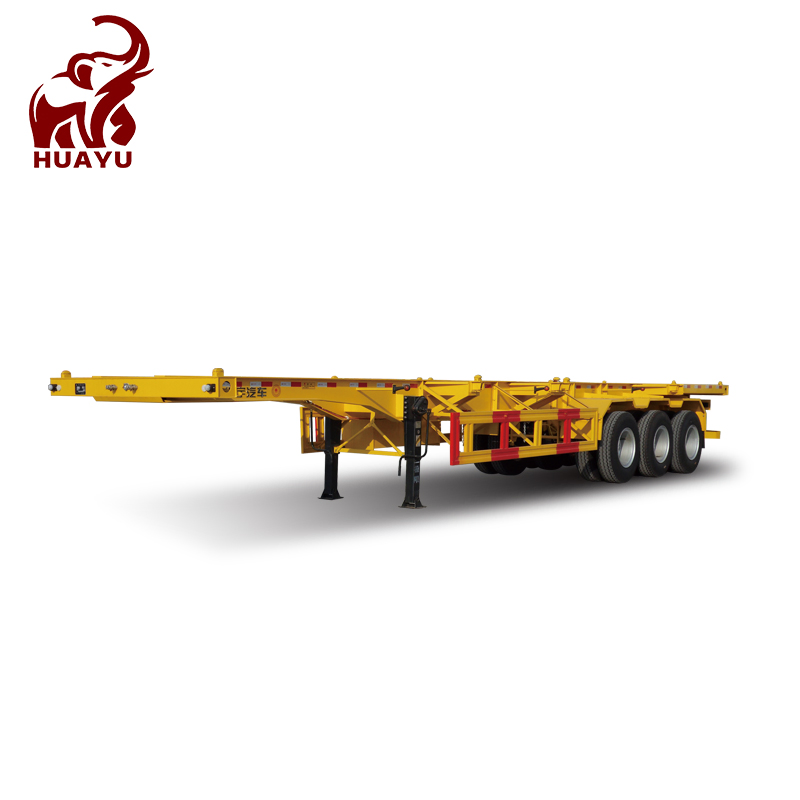

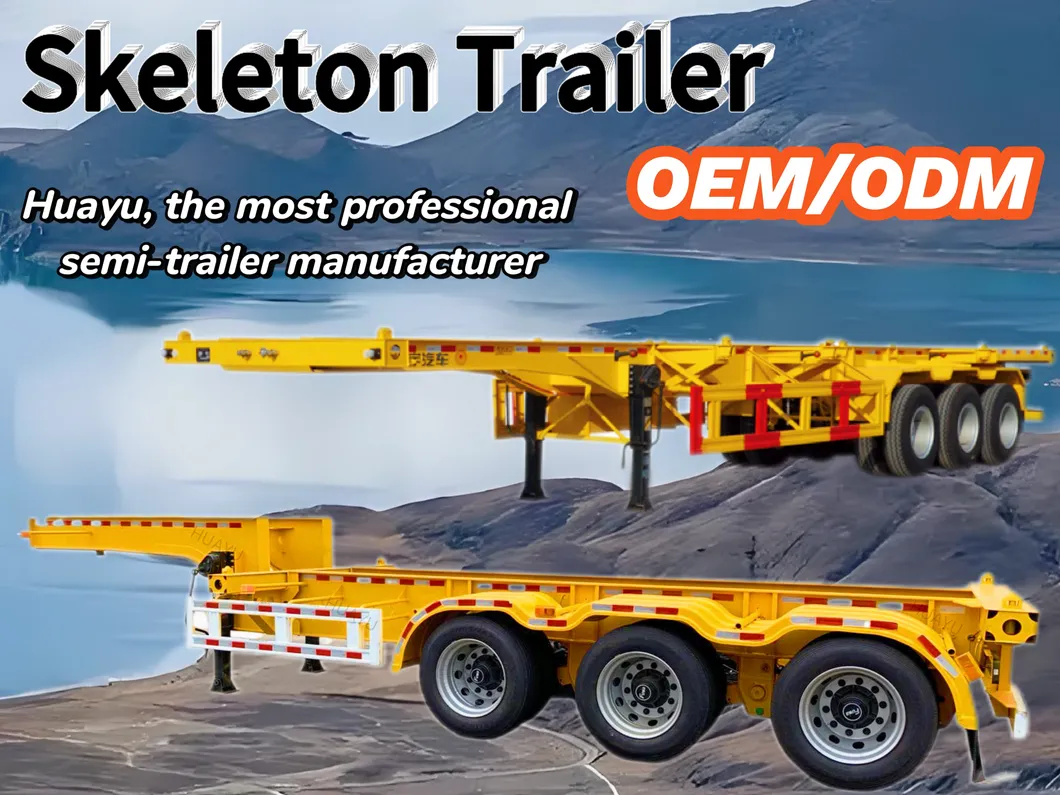

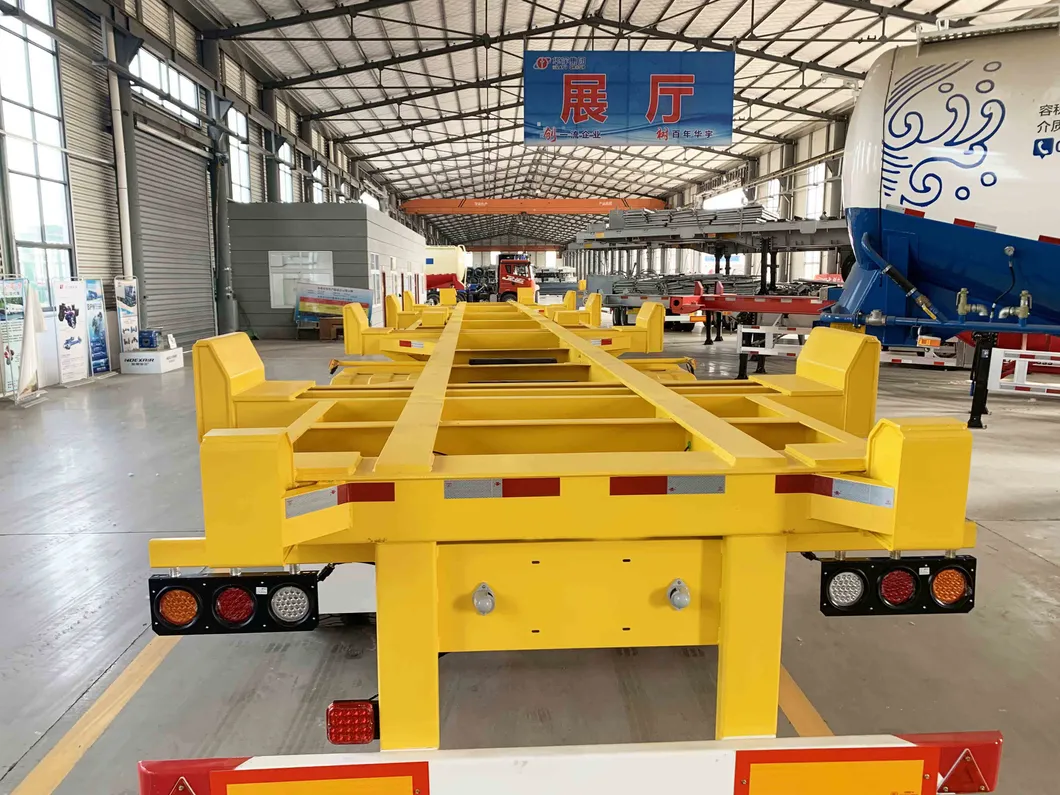

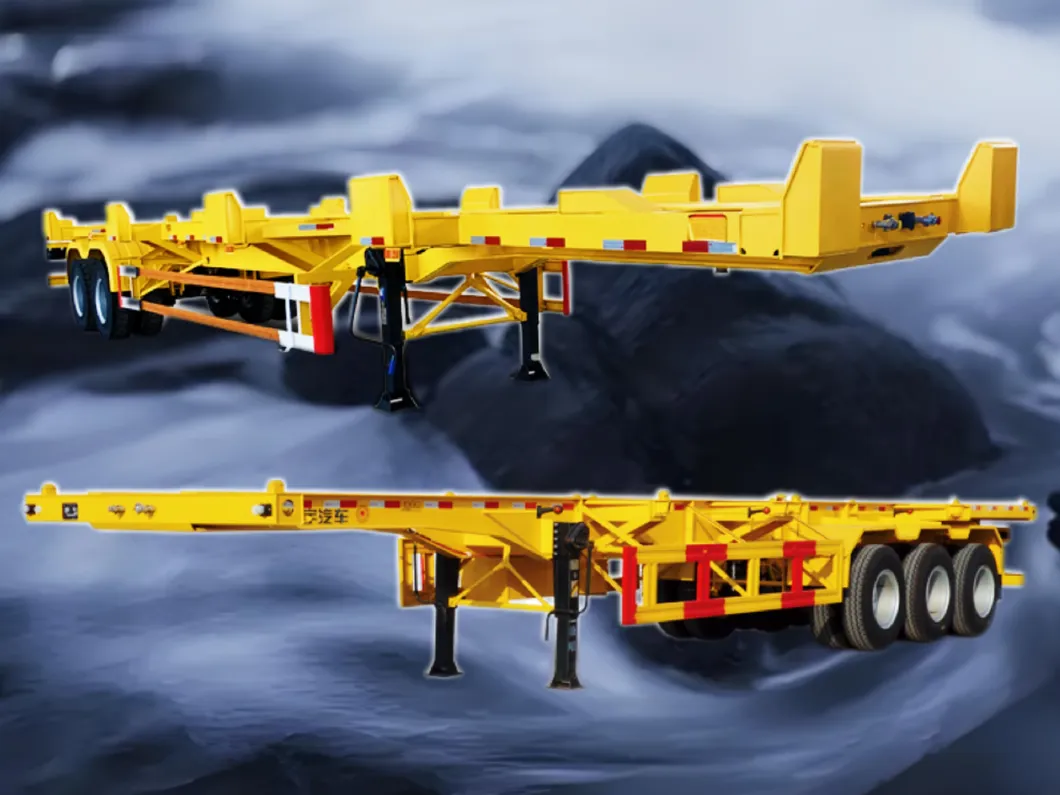

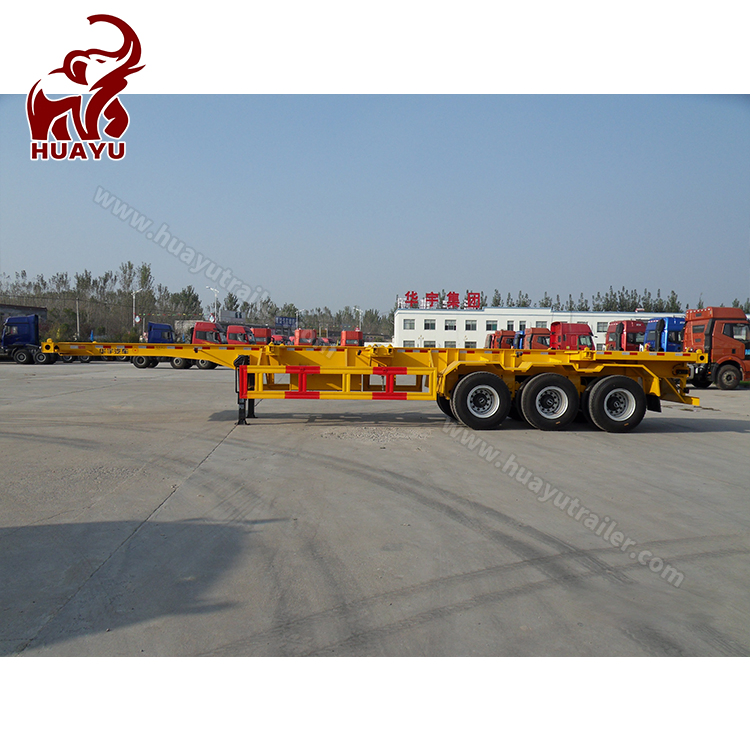

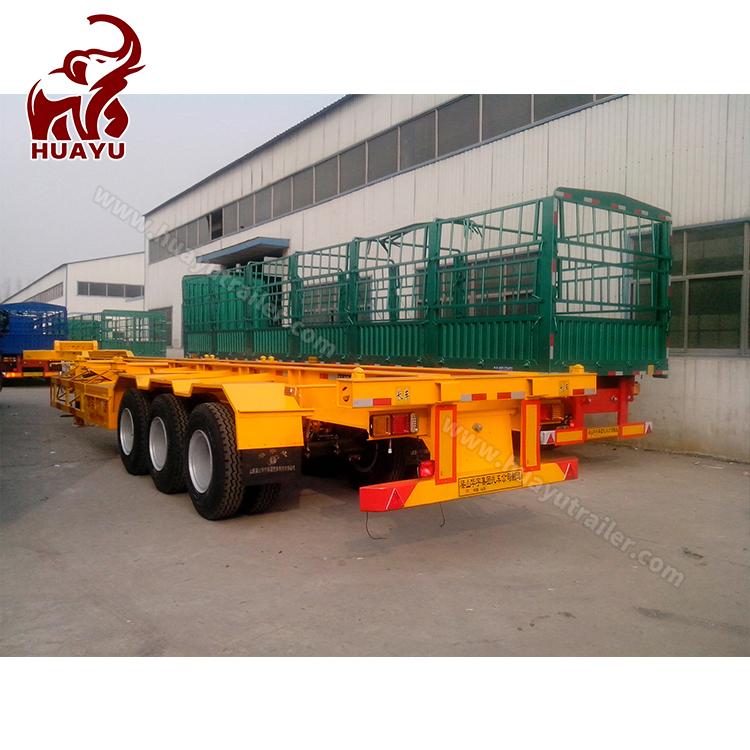

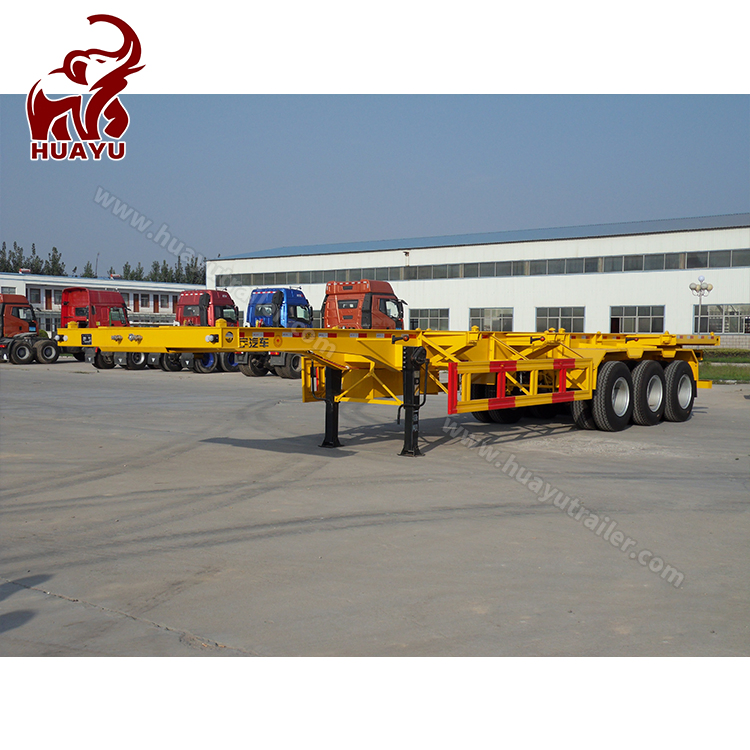

Skeleton semi-trailers are specially used for transporting various types of containers and can be used repeatedly for a long time. Container skeleton semi-trailers have the characteristics of low load-bearing surface, light weight, high reliability and strong applicability. The height of the small gooseneck longitudinal beam at the front end of the frame is reduced to 160mm. It effectively reduces the center of gravity of the 20ft container semi-trailer and greatly improves the safety of road transportation.
Key Advantages:
| General | ||||
|---|---|---|---|---|
| Overall Dimension | 12500mm*2490mm*1550mm | |||
| Tare Weight / Payload | 6750kg | Payload | 60ton | |
| Chassis | ||||
| Suspension | Tri-axle 10-pcs leaf spring | |||

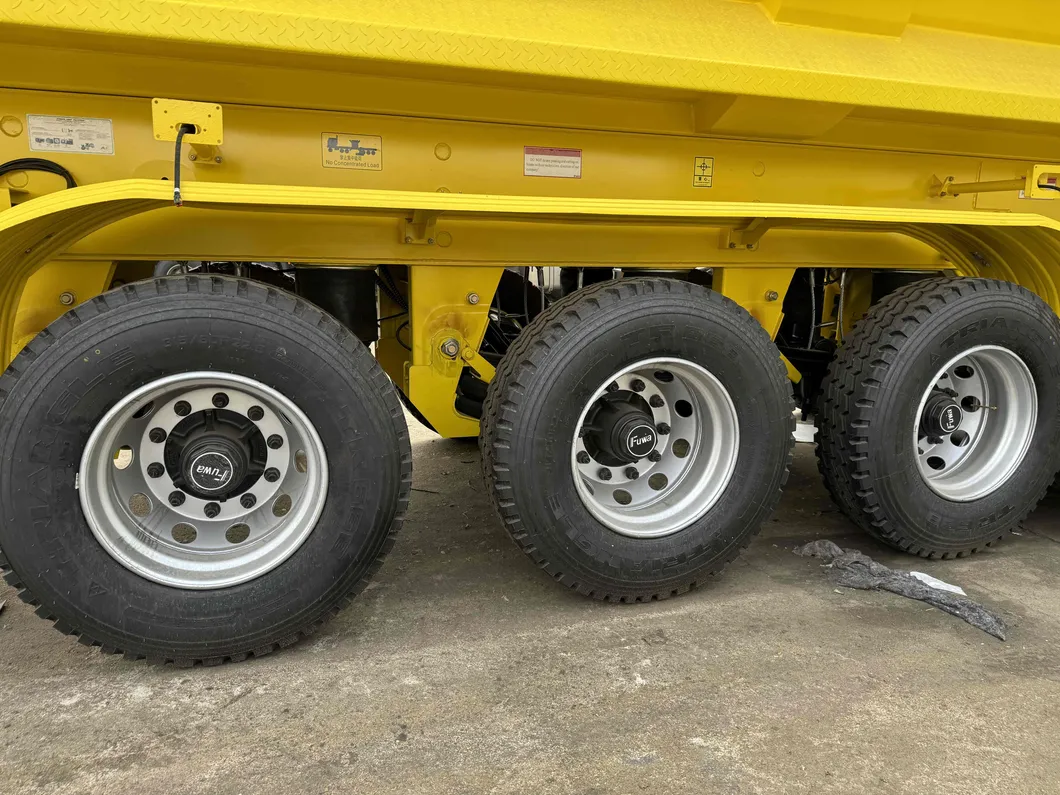

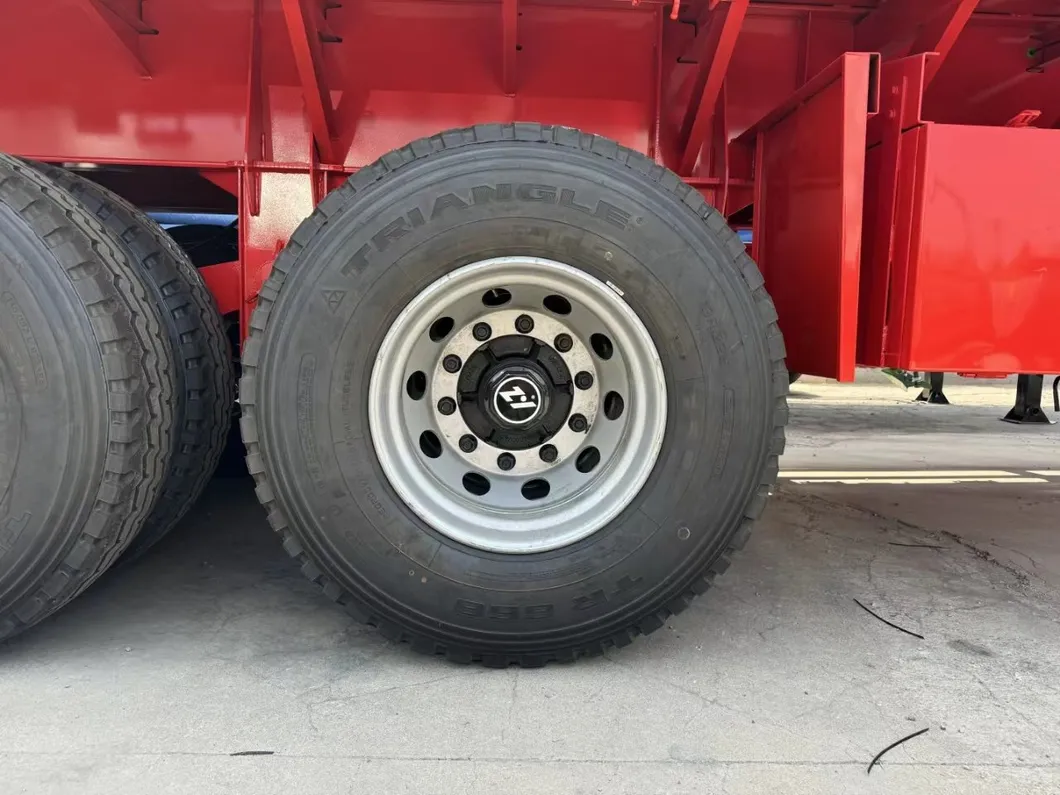

| Tires | 12R22.5, 11.00R20, 12units | |||
| Axles | 13T capacity, FuWa, BPW axle | |||
| Brakes | Dual lines pneumatic brake system, WABCO Emergency Relay Valve | |||
| Under Frame | ||||
| Main Beam | I shape, Mild Alloy (16Mn) by Automatic submerged arc welding | |||
| King Pin | Size: 50# (2'') or 90#(3.5''); JOST | |||
| Twist Locks | 12 lock positions with 4/8/12 twist locks | |||
We will choose the safest and most economical mode of transportation to ensure the safe arrival of the goods.

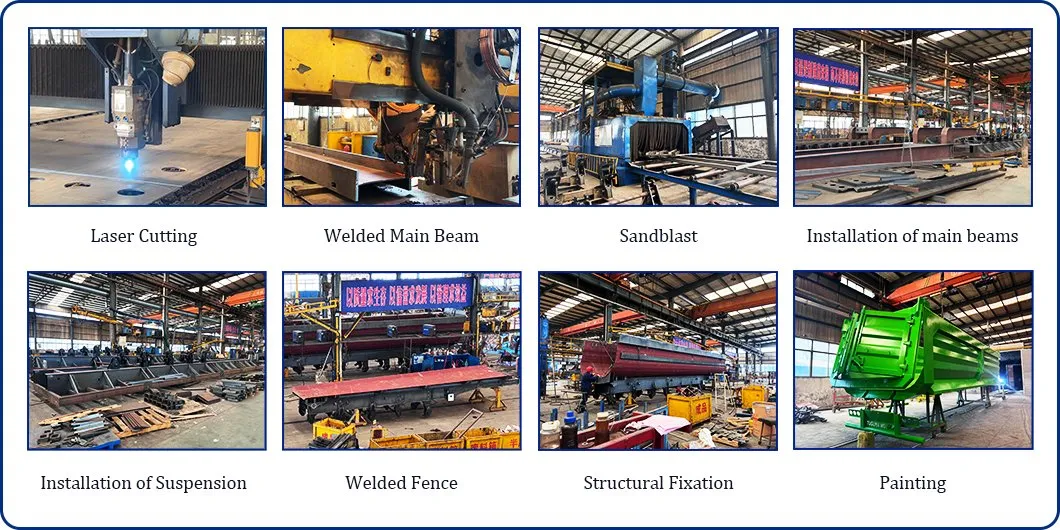

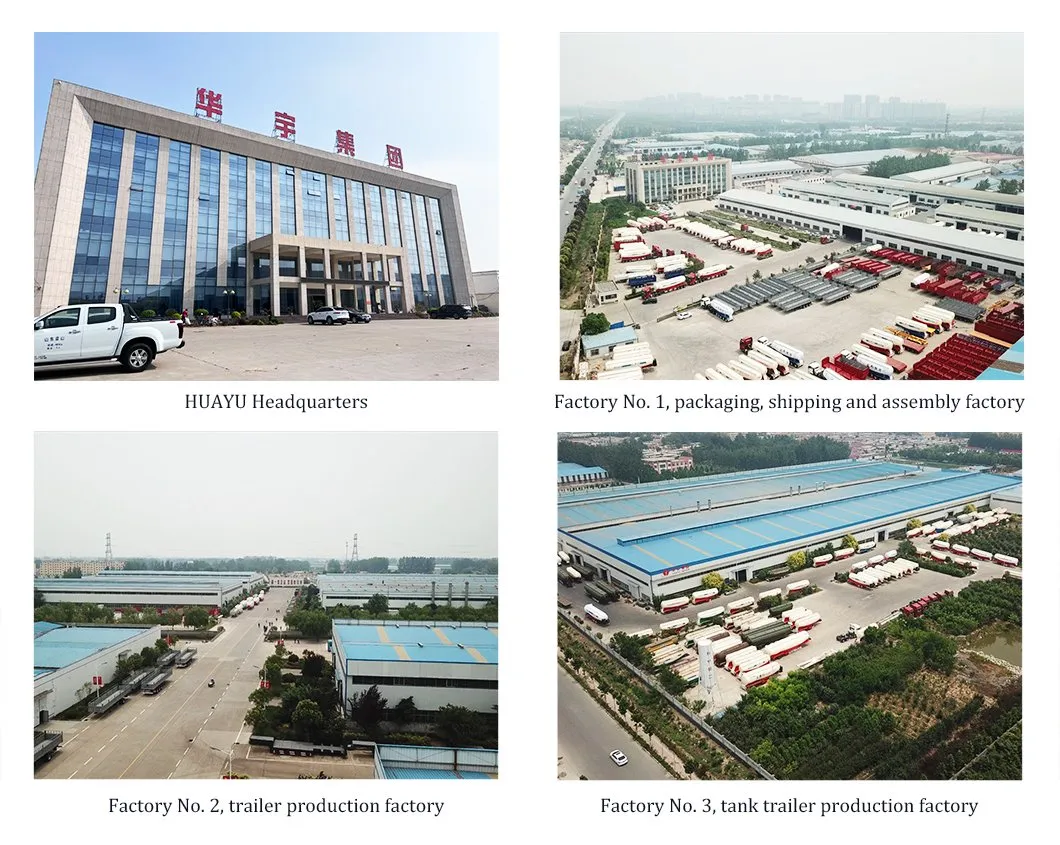

With 20 years of production and research and development experience, the manufacturer is approved for semi-trailer and truck production. With 10 semi-trailer production lines across 600,000 square meters and a professional R&D team of 500 people, the annual output reaches 10,000 units. The facility features strong technical force and advanced intelligent production welding and automatic production lines. We have passed ISO9001 international quality, environmental management, and occupational health management system certifications. More than 100 products have passed the national "3C" certification.
