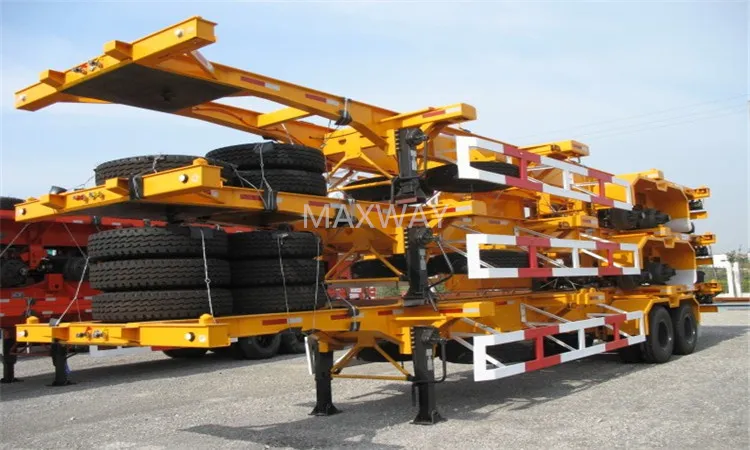

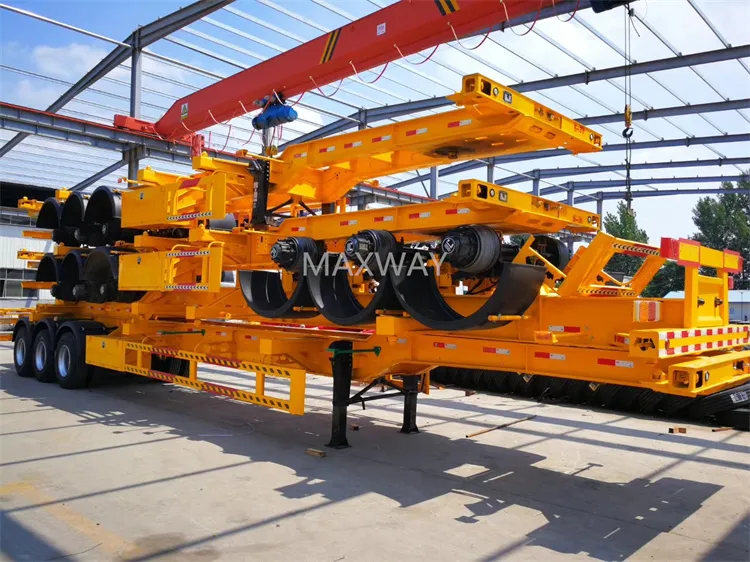

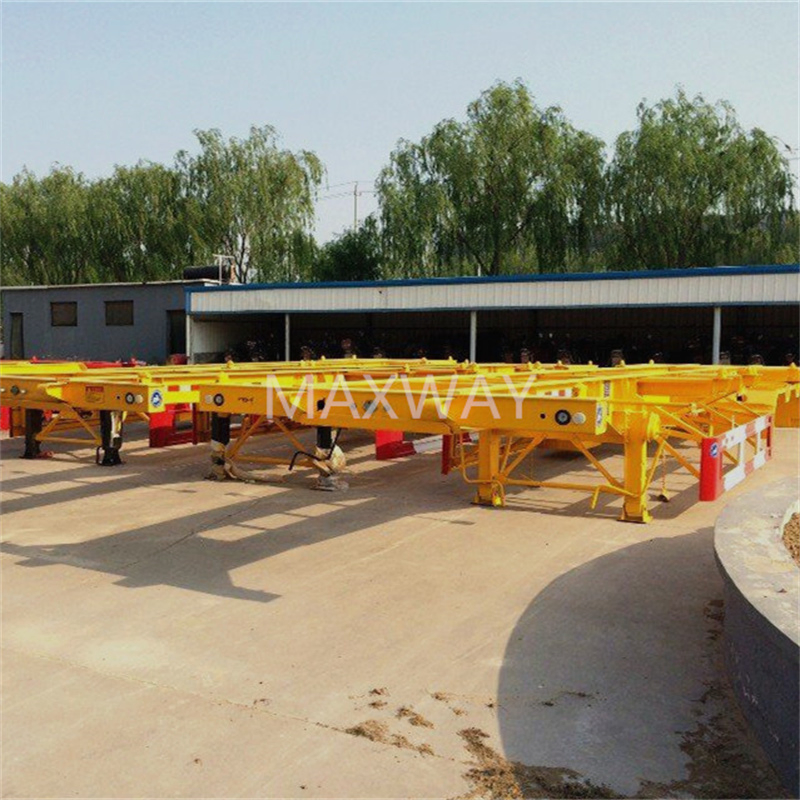

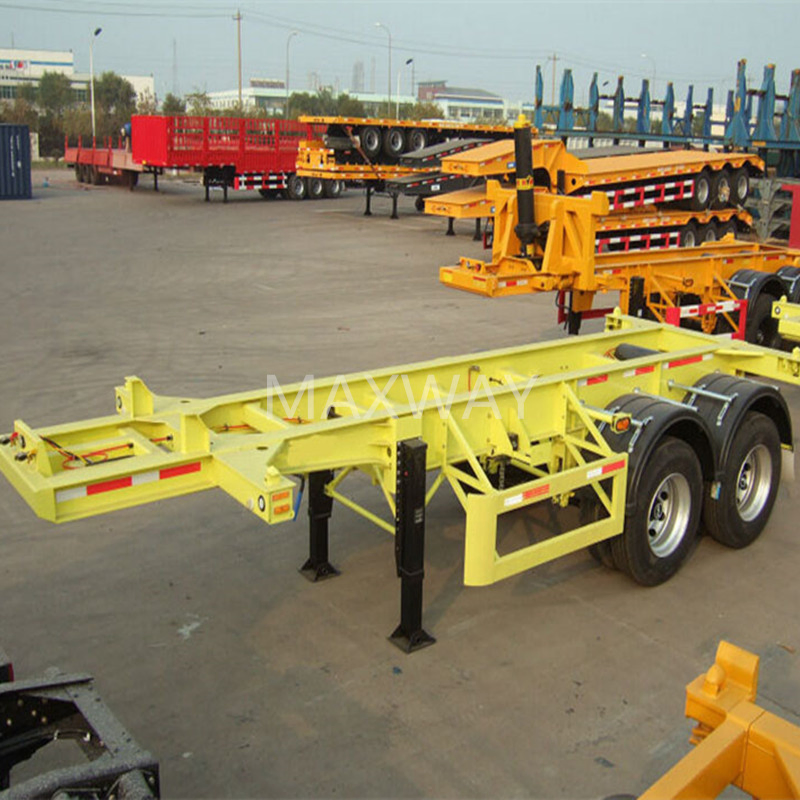

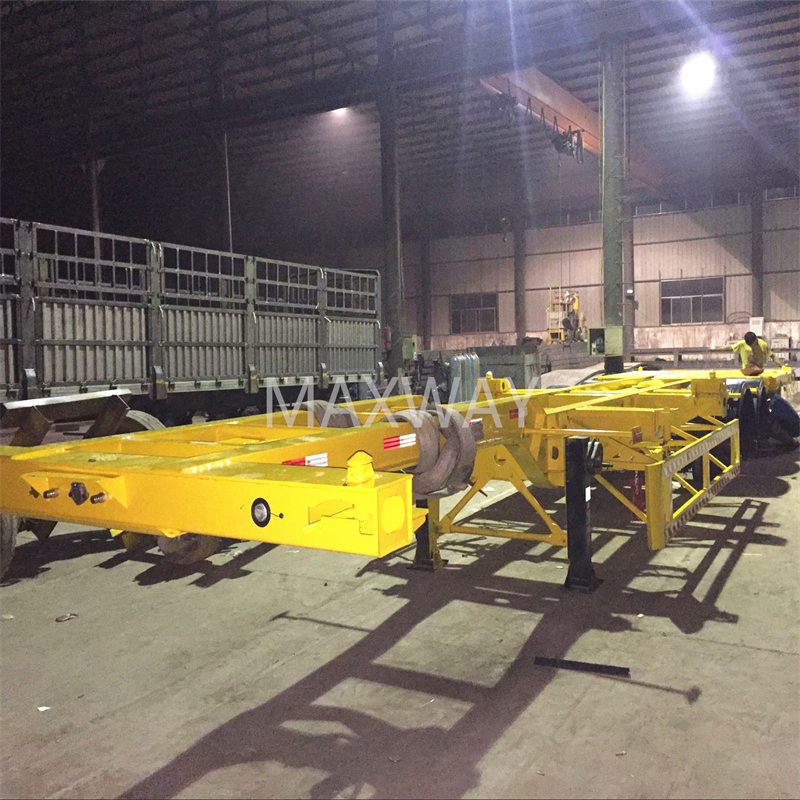

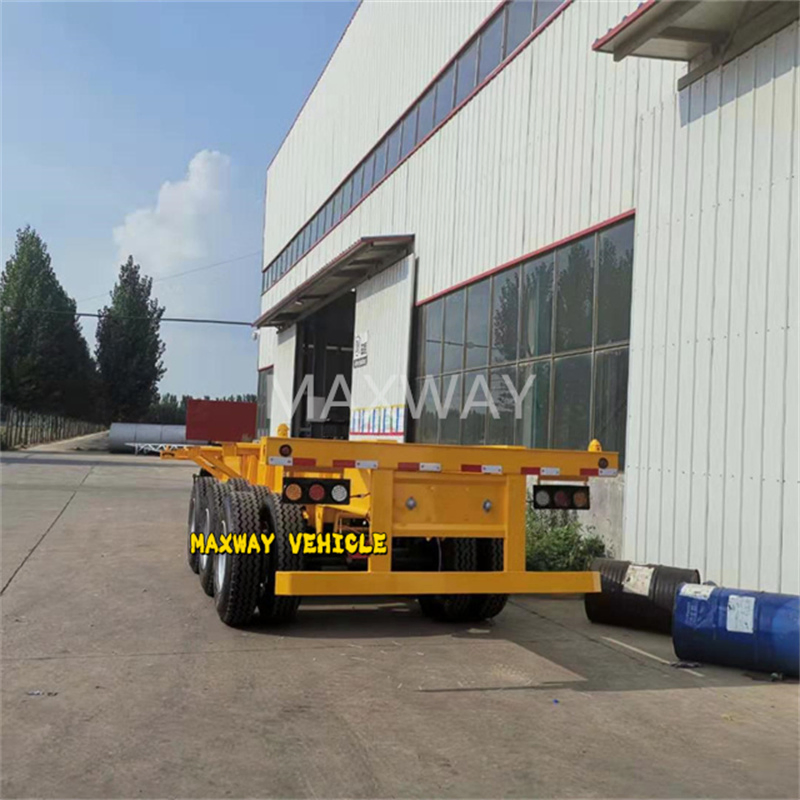

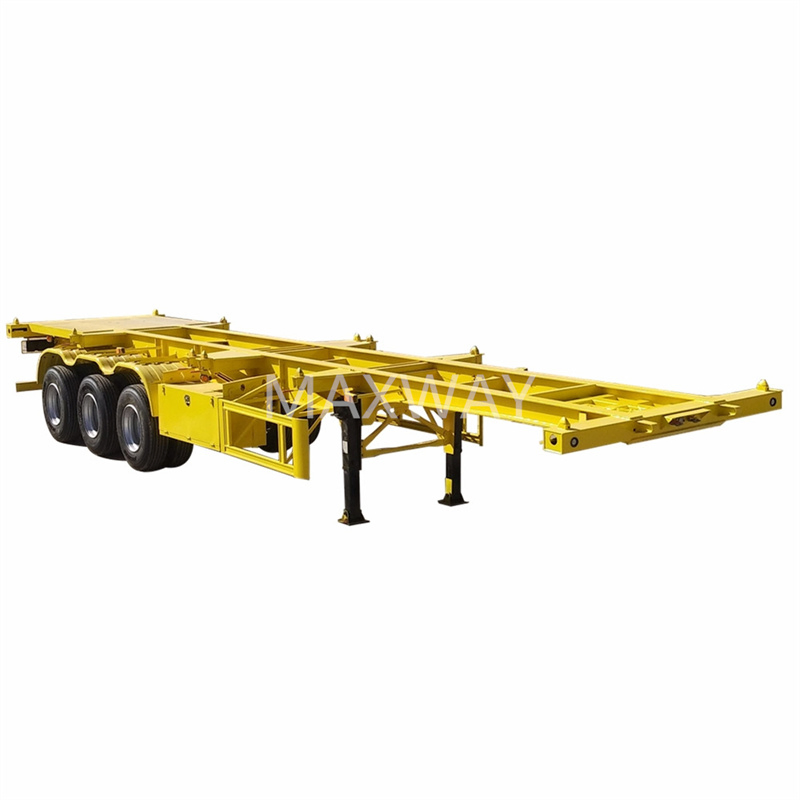

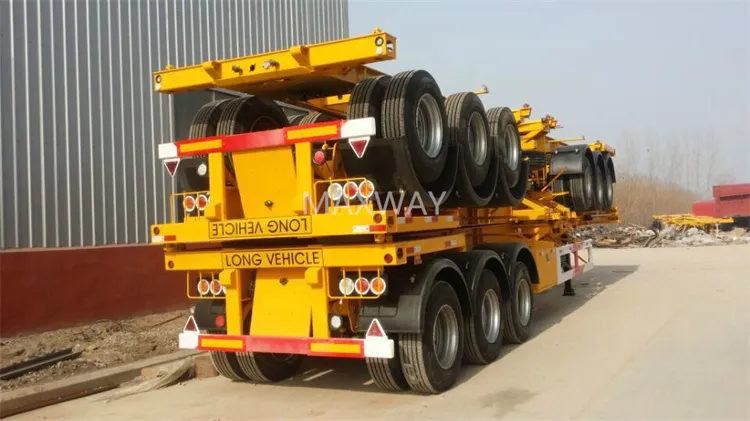

Skeleton Semi-Trailer can be equipped with turn locks for shipping container transport. This Tri Chassis Skeleton Semi Trailer is designed to transport 20ft and 40ft containers. We incorporate 12pcs container locks on the trailer chassis for maximum flexibility.
Also known as a skeletal trailer or container chassis, it is primarily used for transporting ISO containers in ports, shipyards, bridges, and transfer stations, supporting multi-modal transport logistics systems. The chassis is constructed with high tensile steel Q345 and welded by automatic submerged-arc processes to ensure durability.
| Dimensions & Weight | |||
|---|---|---|---|
| Tare weight | 6500kg | Payload | 40000kg |
| Overall Length | 12500mm | Overall Width | 2500mm |
| Technical Specifications | |||
| Main Beam | Q345 High tensile steel; Top 14mm/140mm; Middle 8mm; Bottom 16mm/140mm | ||
| Axle | 3 Axles, 13T Capacity | Suspension | Mechanical or Air Suspension |
| Tire | 11.00R20, 12R22.5 Optional | Kingpin | 2" or 3.5" bolt-in |
| Landing Gear | JOST brand two-speed | Braking | WABCO relay valve, T30/30 |
| Twist Locks | 12 sets ISO twist locks | ||

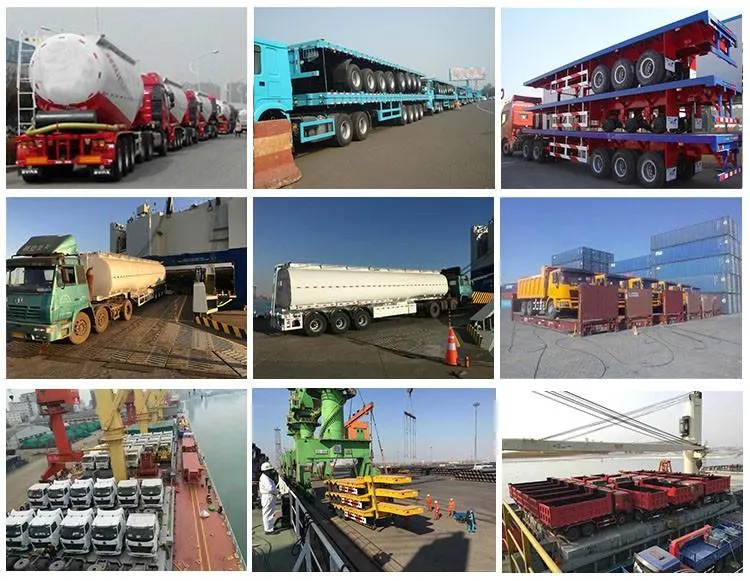

Standard nude packing for export. All trailers undergo rust cleaning via sandblasting followed by one coat of anticorrosive primer and two coats of final paint.
