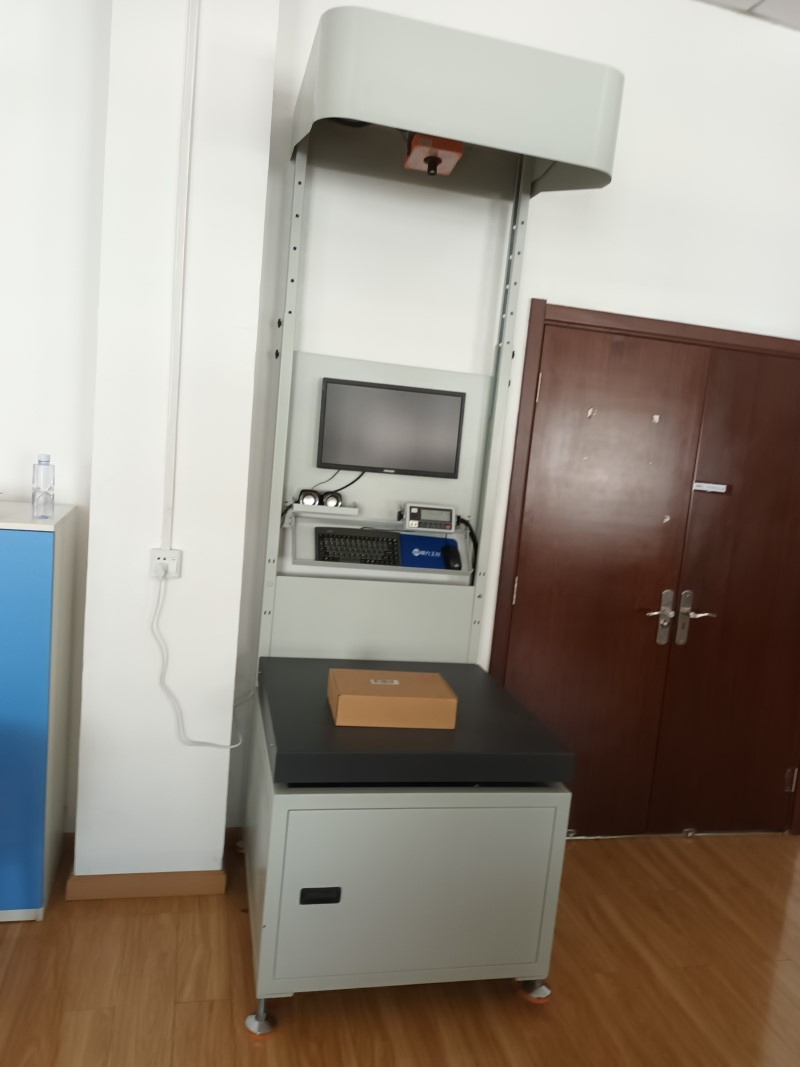

Wms Measuring Machine System with Barcode and Weight Integration Dws

Customization:	Available
After-sales Service:	on-Site Assistant and Remote Assistant
Warranty:	12 Months

Basic Info

Model NO.

DWS quick check big platform

Structure

Conveyor System

Material

Carbon Steel

Material Feature

Strong and Durable

Application

CEP, E-Commerce, Logistics, Manufacturing Industry

Condition

New

Voltage

220V

Function

Barcode Reading, Weight, Image Uploading, API

Barcode Accuracy

99.9%

Weighing Accuracy

1g (Plus or Minus)

Leadtime

7 Days

Shipment

by Sea, by Air, by Truck, by Train

Product Description

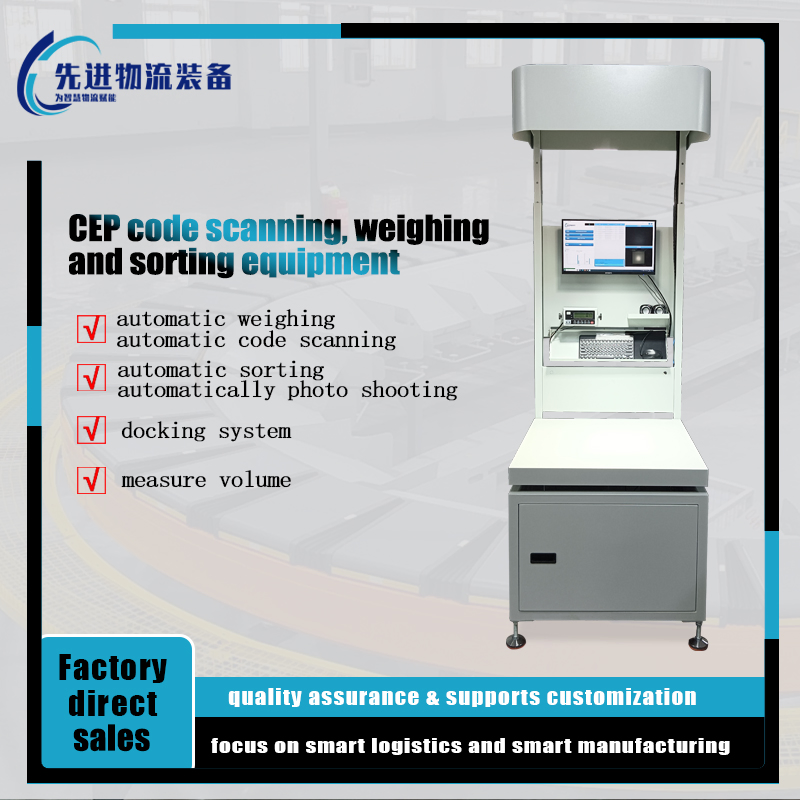

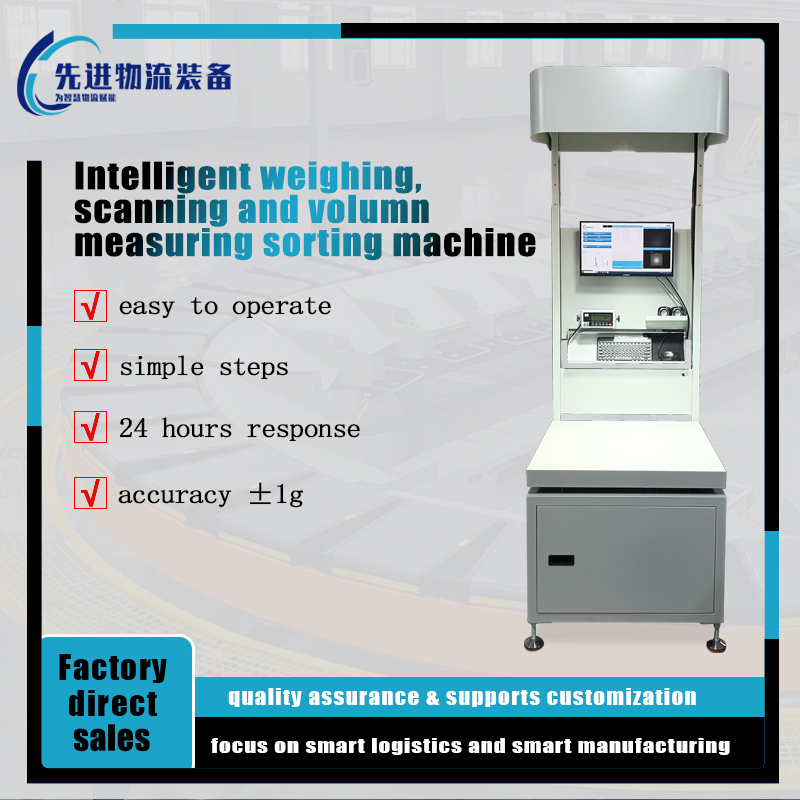

Scanning and weighting unit suits for sorting and registration, equipped with screen display, can be used with a belt conveyor or other sorting equipment or as a standalone. With semi-automatic operation weighing, reading code information, storage and upload, interface with other logistics systems including MEP, ERP, CRP, OA to achieve information and data exchange.

🚀Efficiency
Improve work efficiency

🎯Accuracy
High measurement accuracy

📊Data
Automatic recording

👁️Visual
Data visualization management

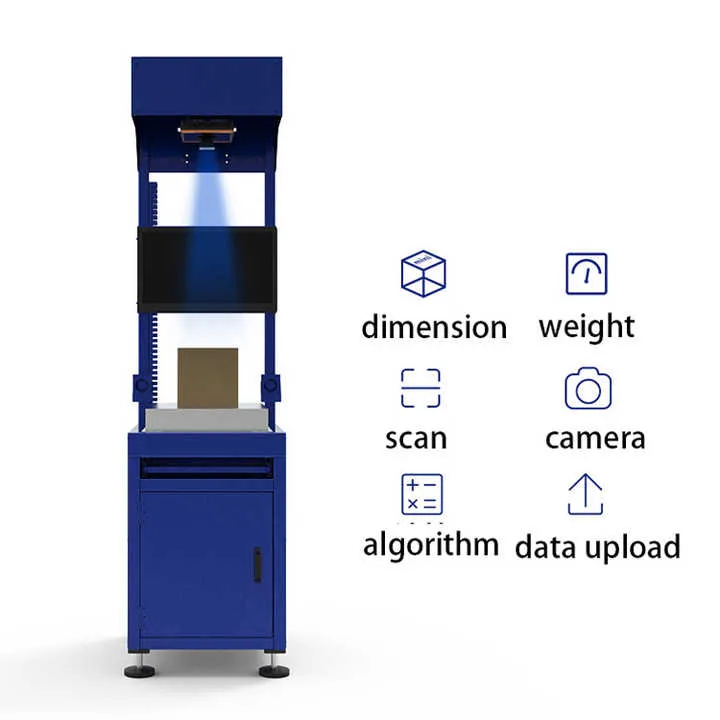

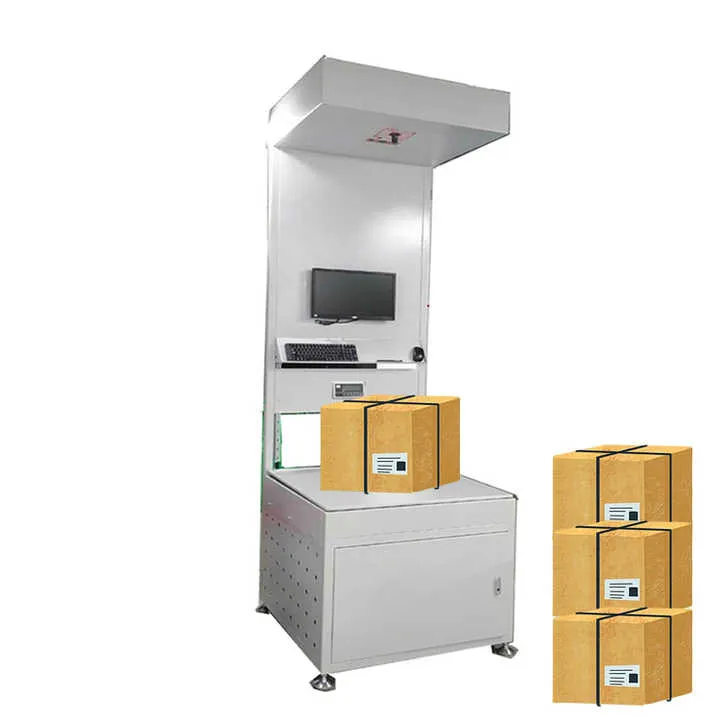

Large Platform DWS Features

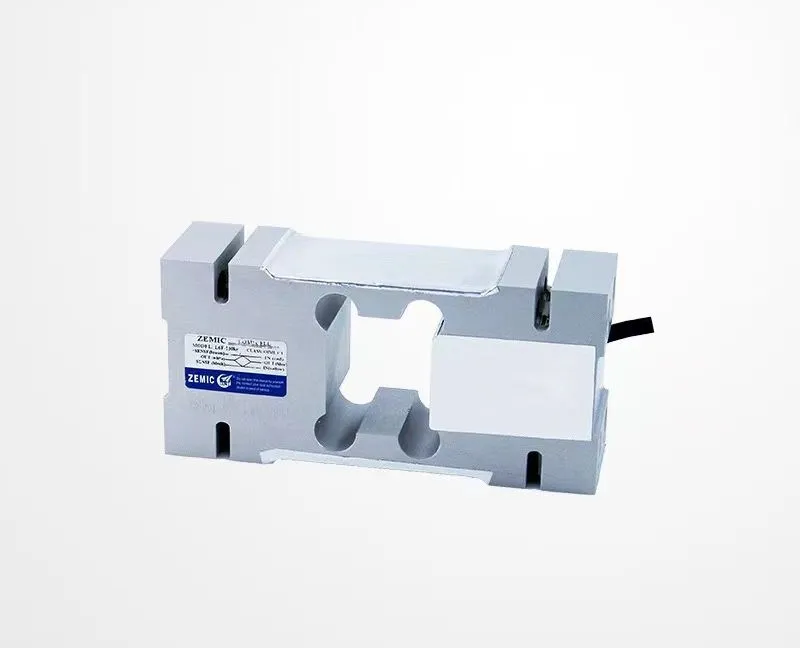

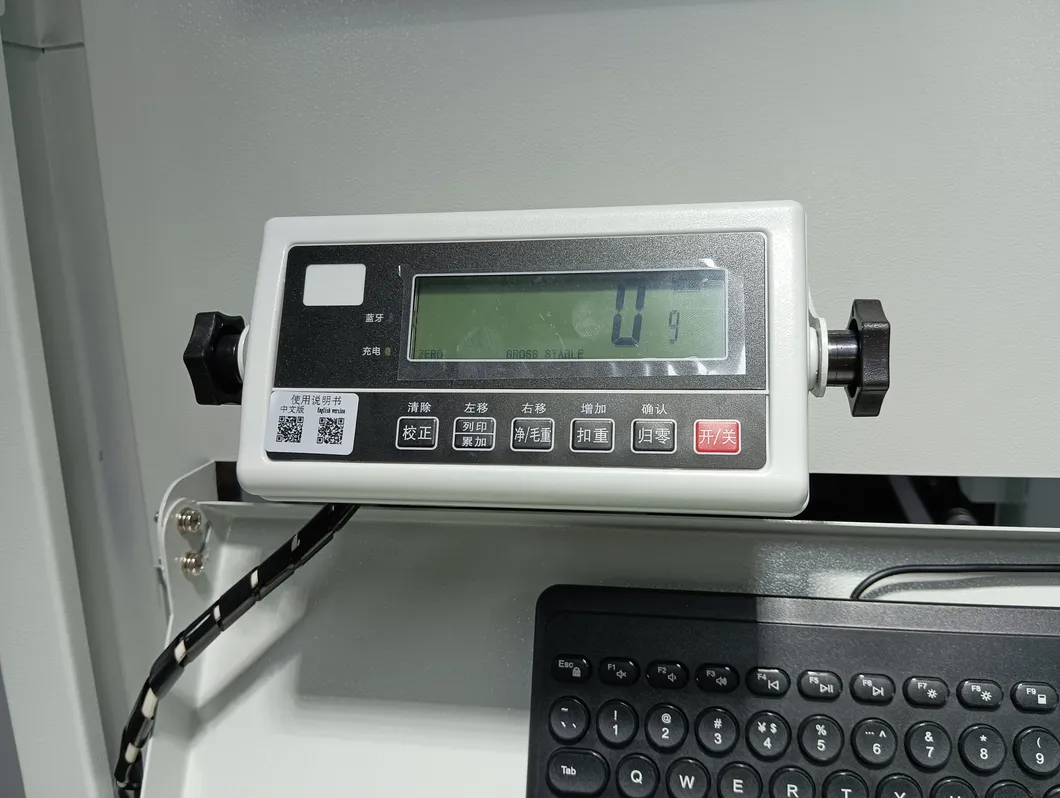

Automatic weighing function: High-precision sensors for quick weight measurement and automatic data recording.
Code scanning function: Supports QR codes and barcodes to obtain cargo codes, names, and specifications.

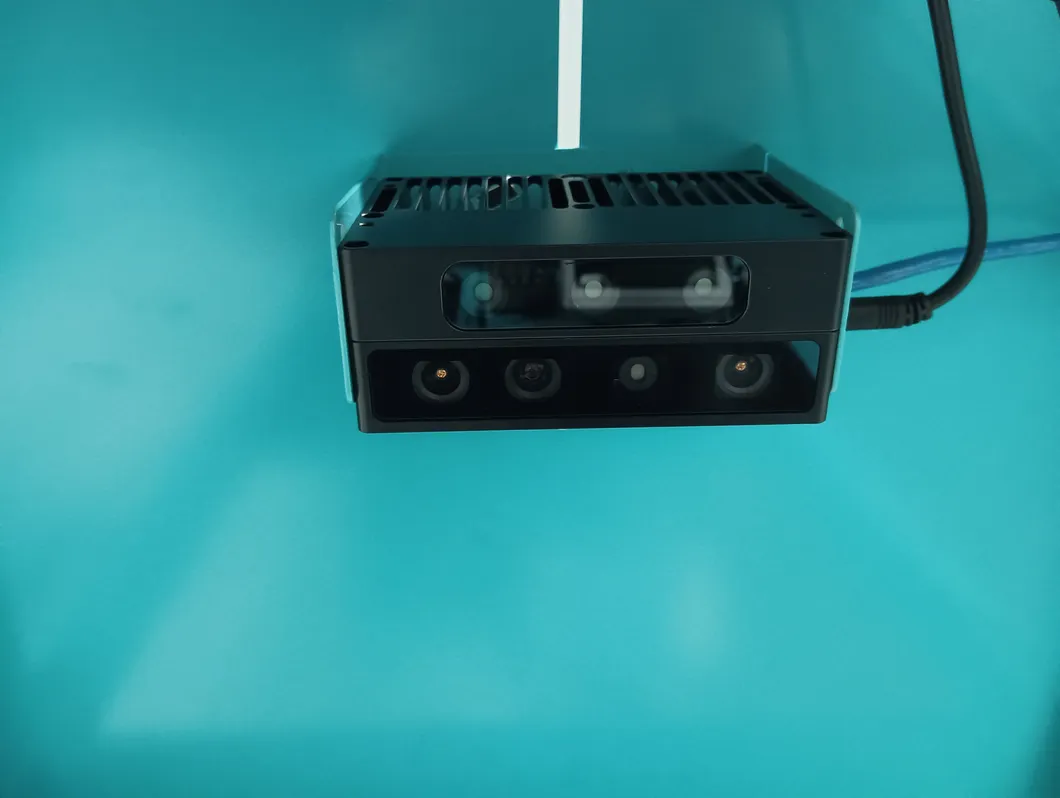

Volume measurement function: Laser rangefinder and 3D imaging for real-time length, width, and height calculation.
Data management function: Integrated system to store measurement results for query and analysis.
Interface output function: Supports connection with computers and printers to export data.

Operation Mode

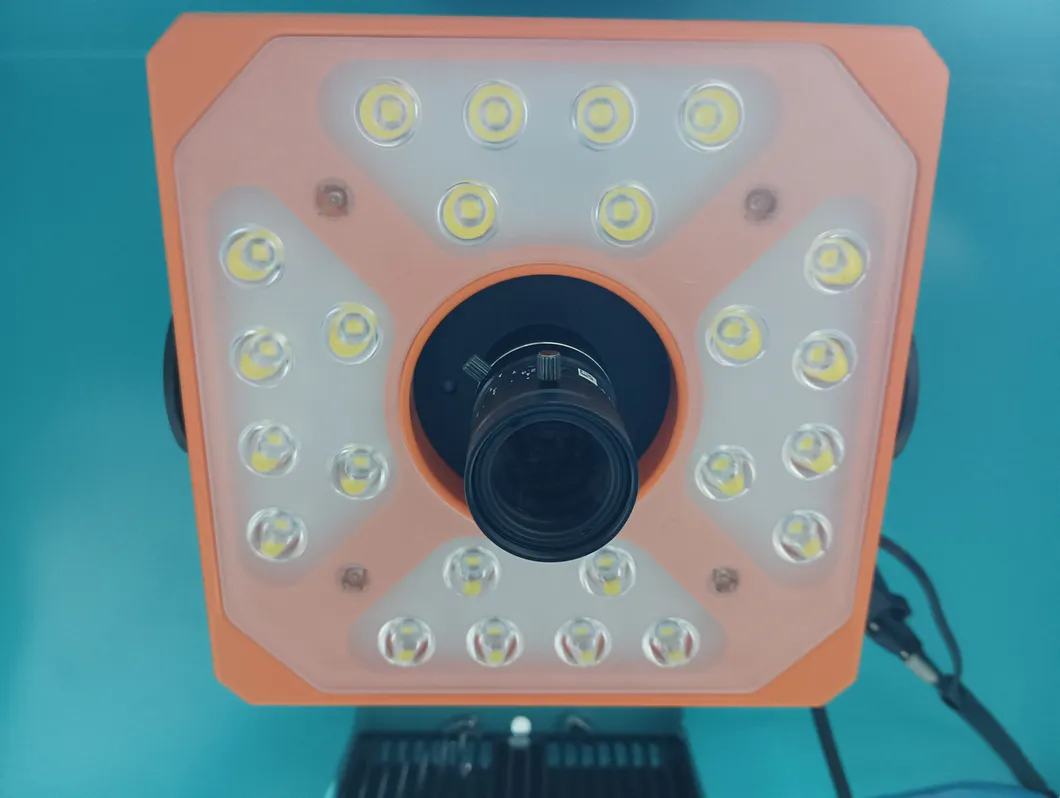

Mode 1: Semi-automatic (Platform Scale + Industrial Camera)
The package is placed on the scale for weight reading while the camera captures barcode information for system storage.

Mode 2: Semi-automatic (Belt Conveyor + Rolling Scale + Industrial Camera)
Package moves on the rolling scale for weight and barcode capture, then is transported to the next operation line.

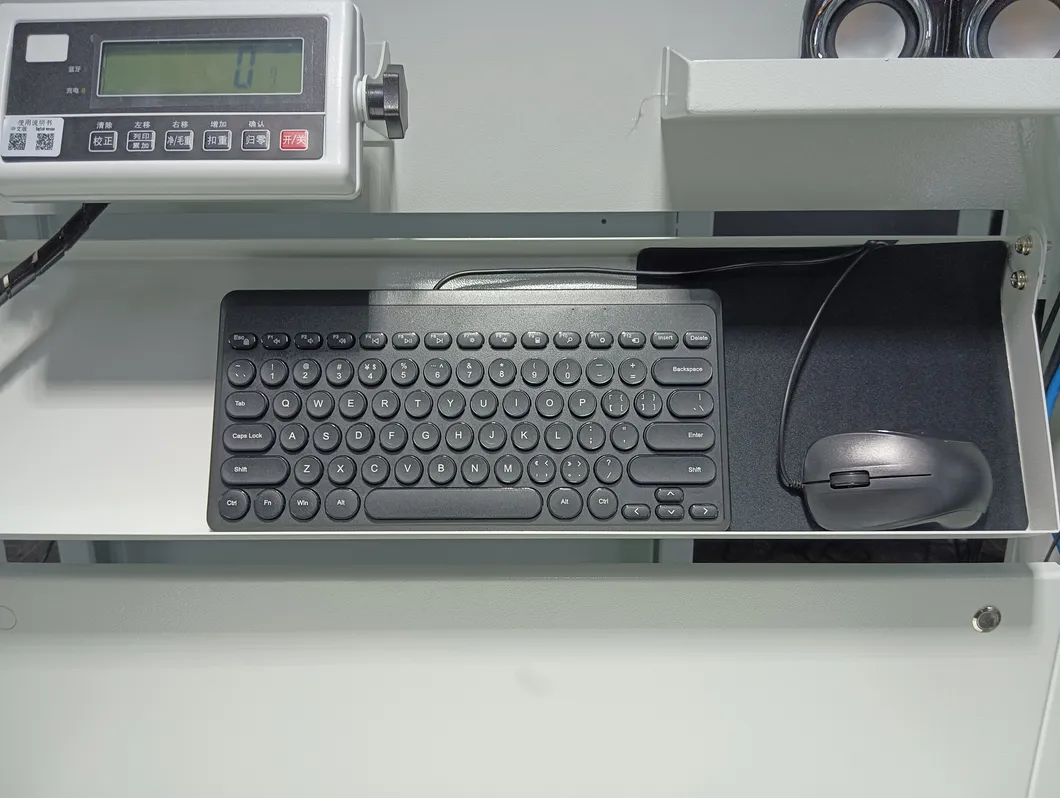

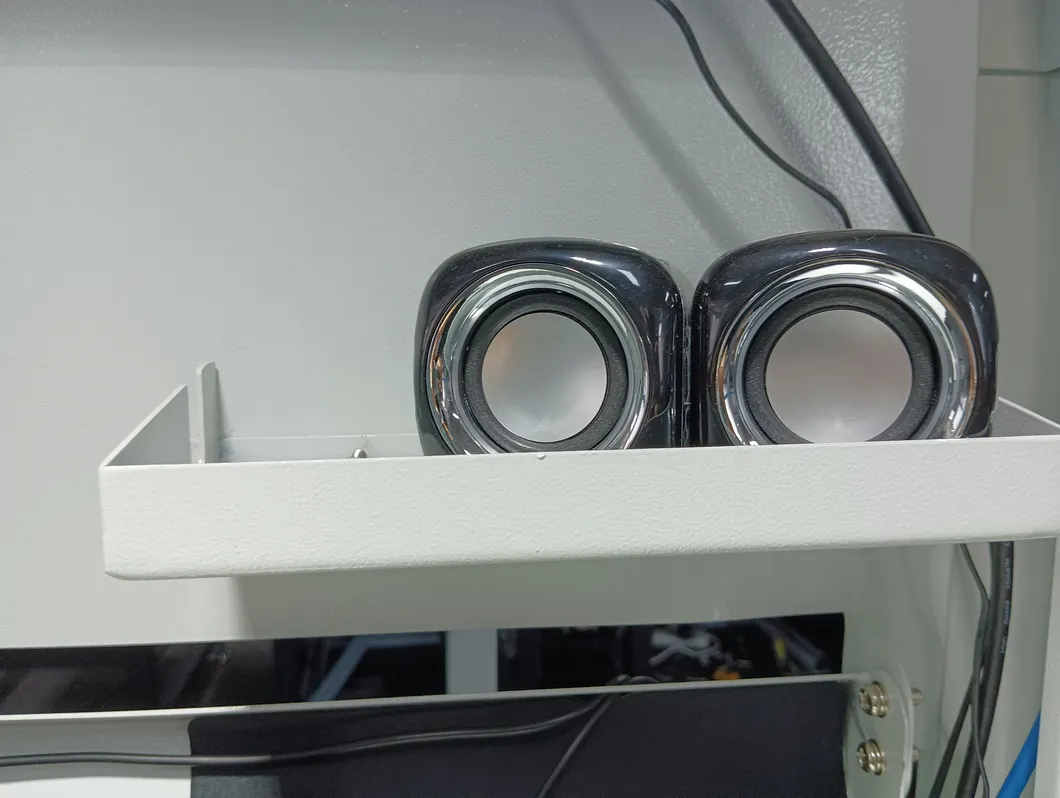

Detail Pictures

Technical Parameters

Parameter Indicators	Platform Scale Mode	Belt Conveyor Mode
Type	Scanning electronic platform scale	Belt conveyor rolling scale
Overall Dimensions	L578W608H1980mm (Adj.)	L908W800H1980mm (Adj.)

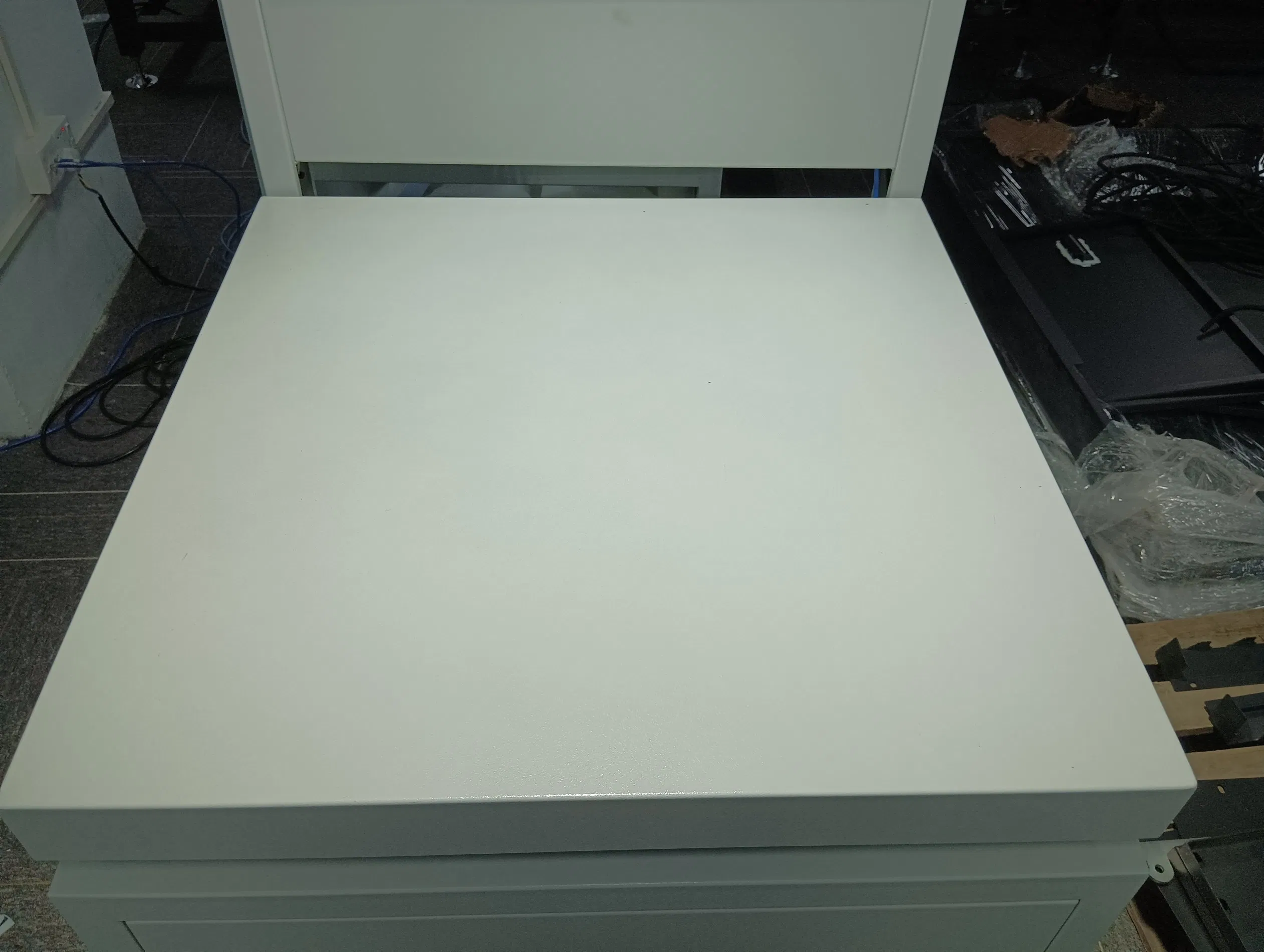

Platform Size	L500mm*W400mm	L800mm*W600mm
Efficiency	30-50 pieces/min	30-40 pieces/min
Code Reading Accuracy	99.90%
Weighing Accuracy	±1g	±10g
Weighing Range	0.02kg-30kg	0.05kg-60kg

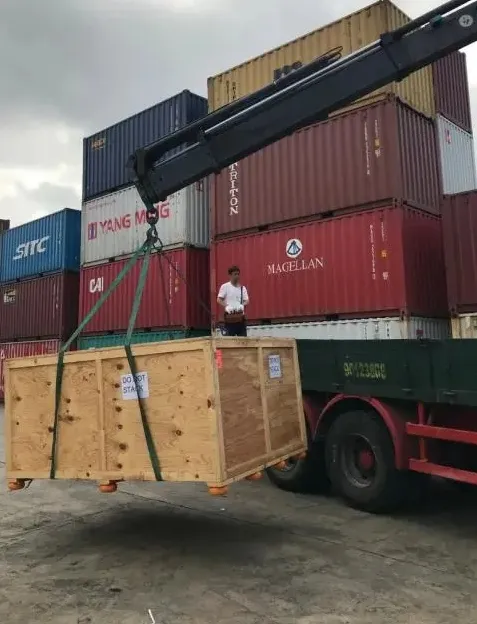

Packaging & Shipping

Solutions & Capacity

Specializing in the R&D and production of intelligent sorting systems and providing intelligent logistics solutions. These machines help improve warehousing efficiency, production efficiency, and management of the sales process while reducing operating costs.

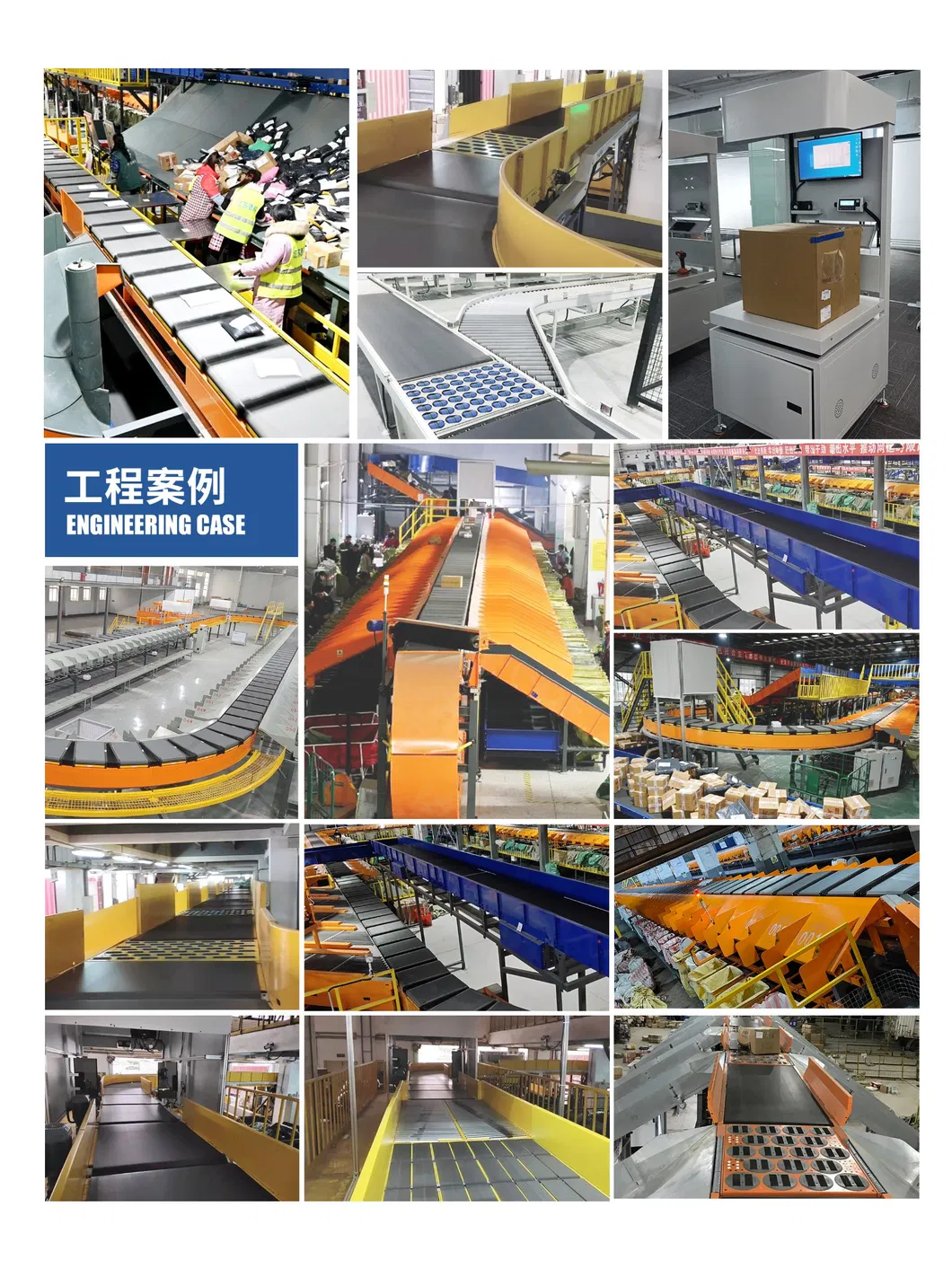

Partners & Engineering Cases

Frequently Asked Questions

Q1: Can this DWS machine integrate with my existing ERP/WMS? A: Yes, it supports interface connections with various logistics systems including ERP, WMS, and OA for seamless data exchange.

Q2: What is the weighing accuracy of the large platform DWS? A: The weighing accuracy can reach ±1g for the platform scale mode and ±10g for the high-capacity belt conveyor mode.

Q3: Does the system support image uploading for package tracking? A: Absolutely. The industrial camera captures barcode information and images which can be automatically uploaded and stored in your database.

Q4: Is the equipment suitable for scanning QR codes? A: Yes, the high-performance scanning unit supports both standard 1D barcodes and 2D QR codes with 99.9% accuracy.

Q5: What are the lead time and payment terms? A: The standard lead time is 7 days. We support various payment terms including T/T, L/C, D/P, and D/A.

Q6: Do you offer remote installation guidance? A: Yes, we provide 24/7 online service and remote guidance for installation and software docking to ensure a smooth setup.
